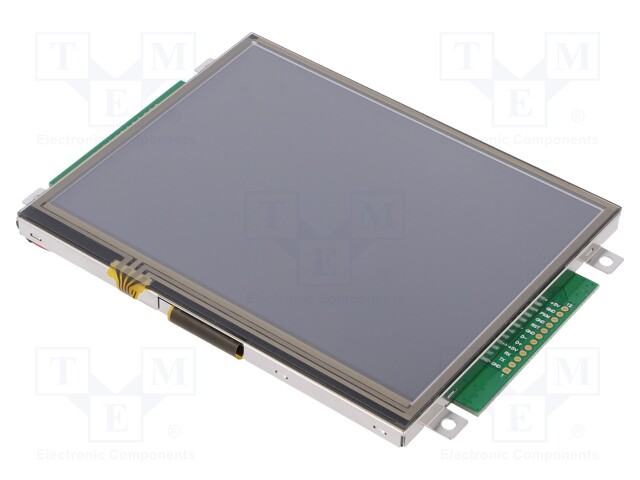

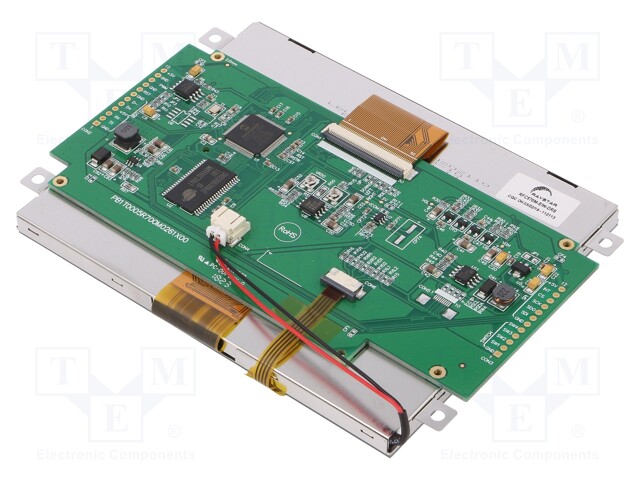

Display: TFT; 5.7"; 320x240; Illumin: LED; Dim: 141.12x101.55x15mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: RFC570M-EIW-DRS
    Manufacturer: RAYSTAR OPTRONICS
    Manufacturer code: RFC570M-EIW-DRS
    • Supply voltage
    • Contacts pitch
    • Colour
    • Interface
    • Interface
    • Number of pins
    • Dimensions
    • Type of pin configuration
    • Display resolution
    • Display features
    • Screen size
    • Kind of display
    • Backlight colour
    • Illumination
    • Contrast
    • Window dimensions (H x W)
    • Type of display

    135.91 € 135.91 € (wo VAT) 135.91 EUR

    135.91 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Display: TFT; 5.7"; 320x240; Illumin: LED; Dim: 141.12x101.55x15mm

    Supply voltage 4.5...5.5V DC
    Contacts pitch 2.54mm
    Colour RGB
    Interface SPI, UART
    Number of pins 12
    Dimensions 141.12x101.55x15mm
    Type of pin configuration 1x12
    Display resolution 320x240
    Display features mounting frame
    Screen size 5.7"
    Kind of display graphical
    Backlight colour white
    Illumination LED
    Contrast 250:1
    Window dimensions (H x W) 115.2x86.4mm
    Type of display TFT
