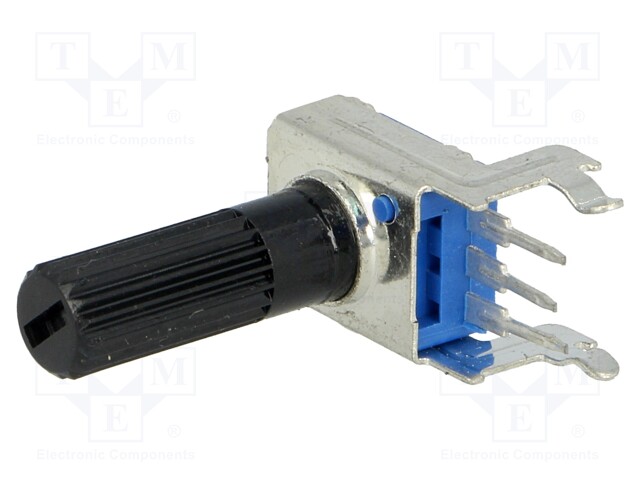

Potentiometer: shaft; single turn; 10kΩ; 125mW; ±20%; THT; 6mm

    Multiples: 1.0
    Minimum quantity: 2.0
    Product code: R9011-2-10K
    Manufacturer: SR PASSIVES
    Manufacturer code: R9011-2-10K
    • Mounting
    • Power
    • Resistance
    • Tolerance
    • Terminal pitch
    • Body material
    • Body dimensions
    • Max. operating voltage
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Control
    • Potentiometer features
    • Potentiometer features
    • Shaft material

    1.30 € 1.30 € (wo VAT) 1.3 EUR

    1.30 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Potentiometer: shaft; single turn; 10kΩ; 125mW; ±20%; THT; 6mm

    Mounting THT
    Power 125mW
    Resistance 10kΩ
    Tolerance ±20%
    Terminal pitch 2.54mm
    Body material plastic
    Body dimensions 10x15.5x6.8mm
    Max. operating voltage 200V
    Shaft length 18mm
    Shaft diameter 6mm
    Shaft surface knurled
    Kind of potentiometer single turn
    Type of potentiometer shaft
    Track material carbon
    Characteristics linear
    Mechanical rotation angle 300°
    Control horizontal
    Potentiometer features mono, without fastening thread
    Shaft material plastic
