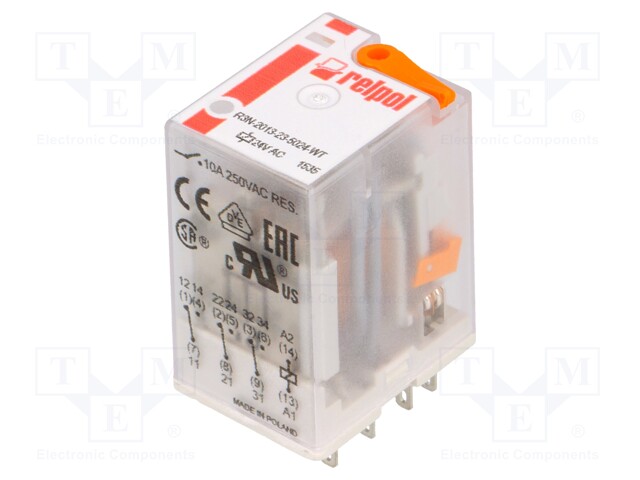

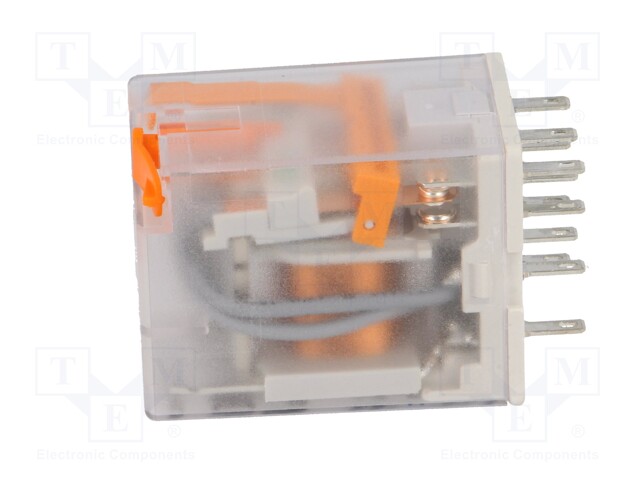

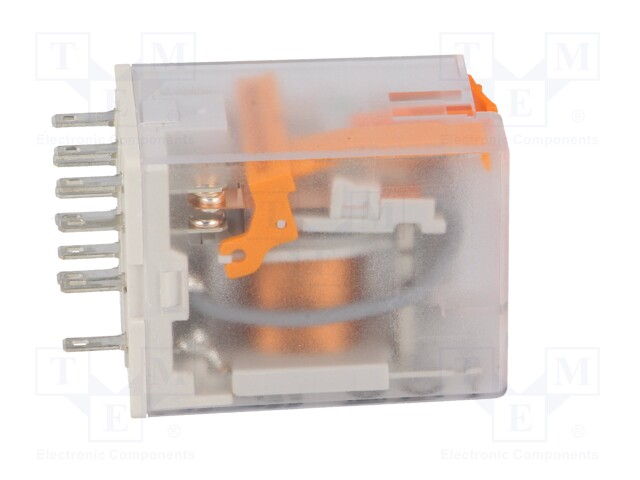

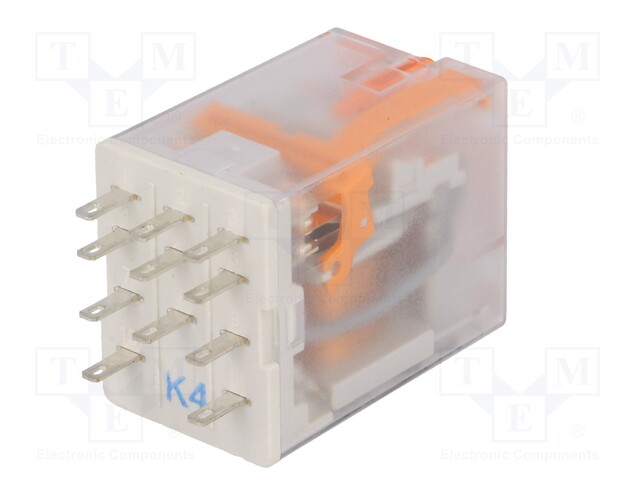

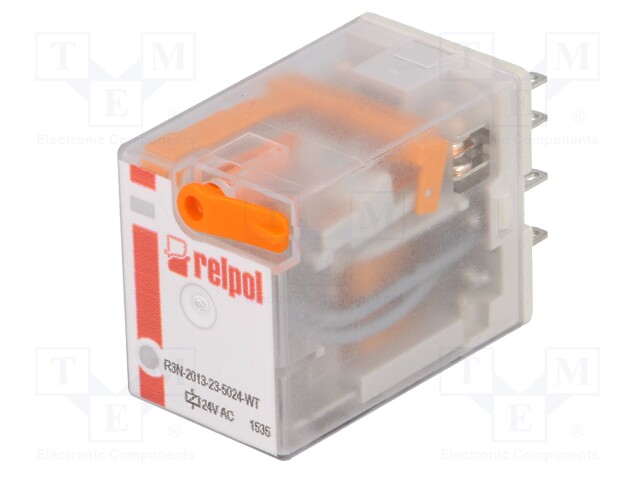

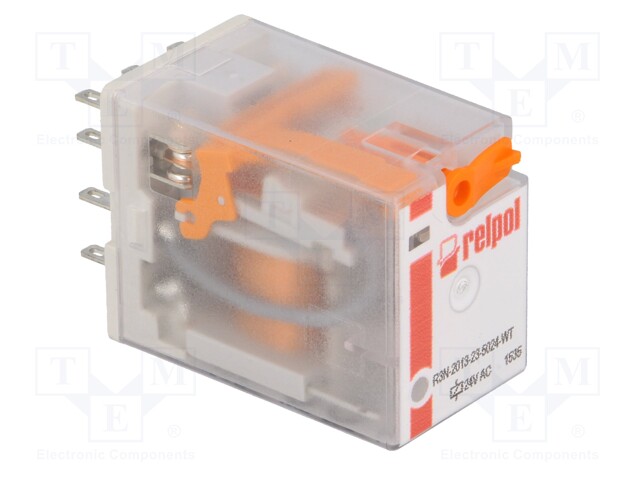

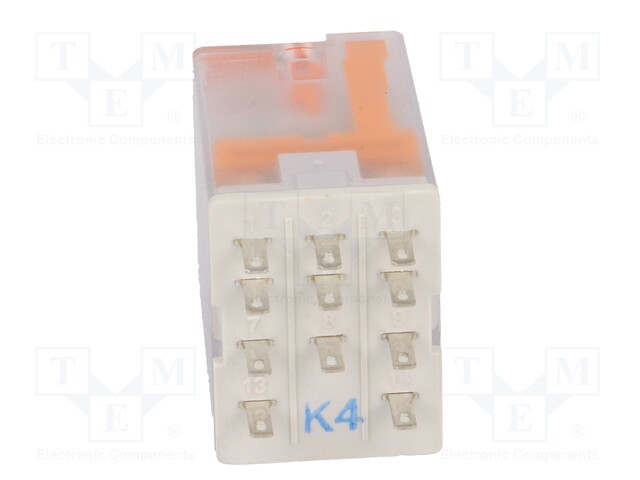

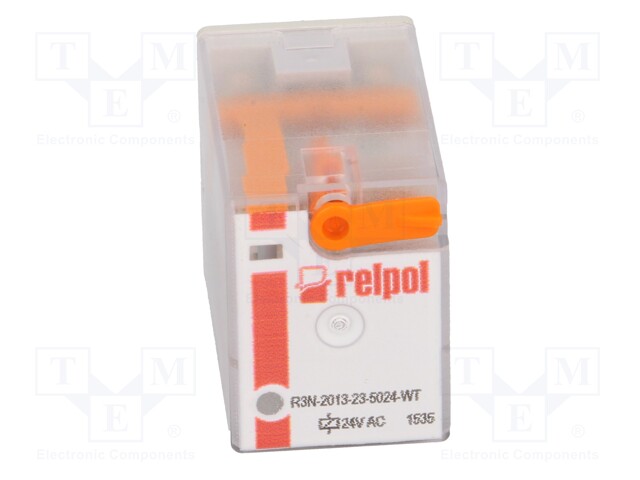

Relay: electromagnetic; 3PDT; Ucoil: 24VAC; 10A/250VAC; 10A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: R3N-2013-23-5024-WT
    Manufacturer: RELPOL
    Manufacturer code: R3N-2013-23-5024-WT
    • Mounting
    • Operating temperature
    • IP rating
    • Leads
    • Number of pins
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Optional equipment
    • Optional equipment
    • OEM number

    13.59 € 13.59 € (wo VAT) 13.59 EUR

    13.59 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; 3PDT; Ucoil: 24VAC; 10A/250VAC; 10A/24VDC

    Mounting socket
    Operating temperature -40...55°C
    IP rating IP40
    Leads 2,2x0,5mm connectors
    Number of pins 11
    Body dimensions 27.5x21.2x35.6mm
    Switched voltage max. 250V DC, max. 440V AC
    Coil resistance 158Ω
    Contacts configuration 3PDT
    DC contacts rating @R 10A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 20A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.6VA
    Relay series R3N
    Optional equipment mechanical indicator, test button with blocking function
    OEM number 861008
