Relay: electromagnetic; DPST-NO; Ucoil: 230VAC; 25A; Rcoil: 21kΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: R20-3022-96-5230
    Manufacturer: RELPOL
    Manufacturer code: R20-3022-96-5230
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Contacts configuration
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • OEM number

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPST-NO; Ucoil: 230VAC; 25A; Rcoil: 21kΩ

    Mounting on panel
    Operating temperature -25...75°C
    Contact material AgSnO<sub>2</sub>

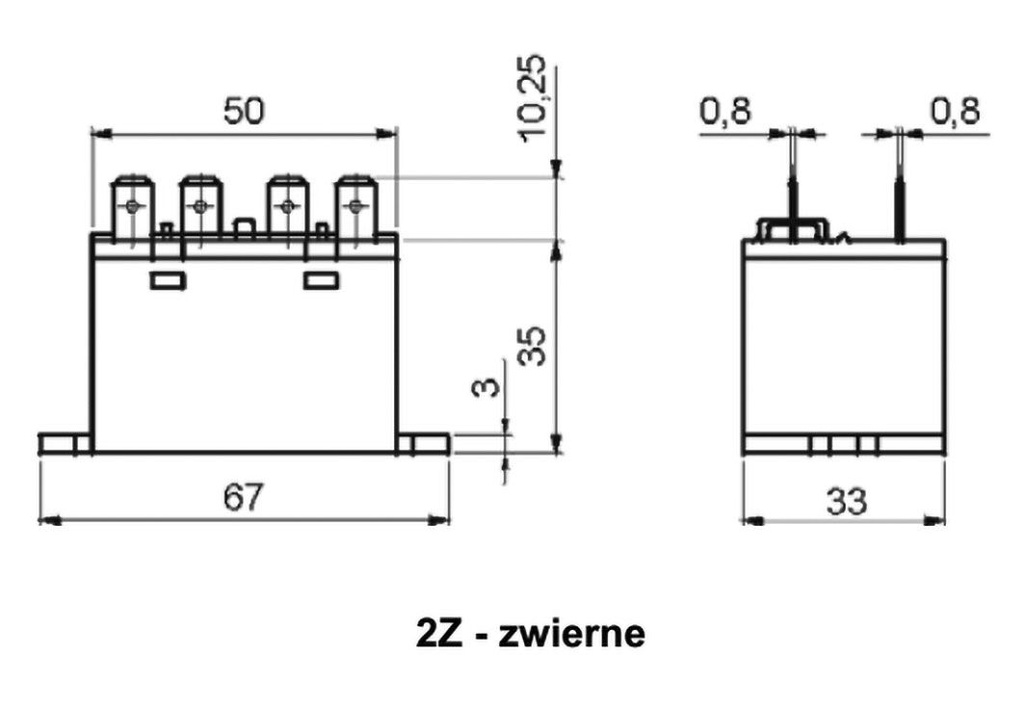

    Body dimensions 67x33x35mm
    Switched voltage max. 440V AC
    Switching capacity 6.25kVA
    Coil resistance 21kΩ

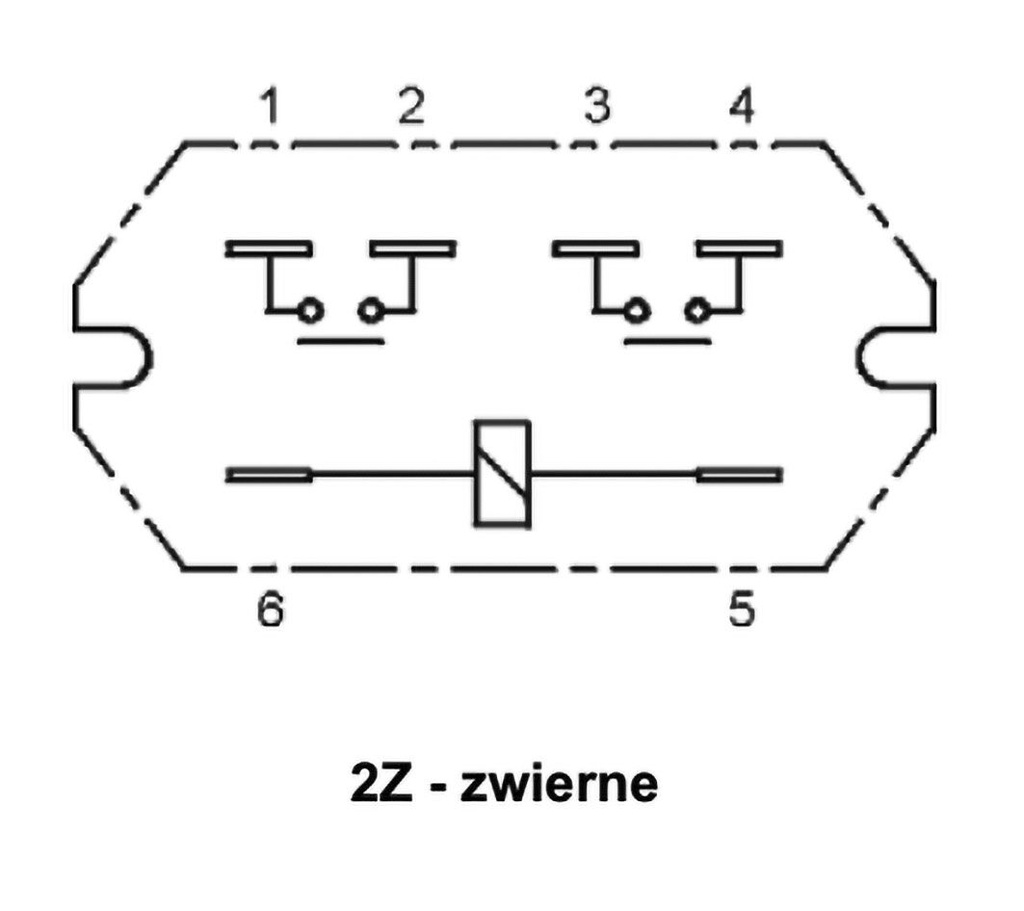

    Contacts configuration DPST-NO
    Contact resistance 100MΩ
    AC contacts rating @R 25A / 250V AC
    Contact current max. 25A
    Relay variant power
    Type of relay electromagnetic
    OEM number 2611761
