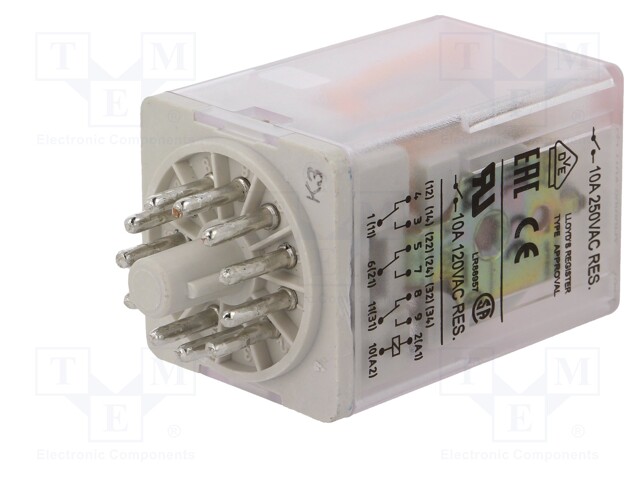

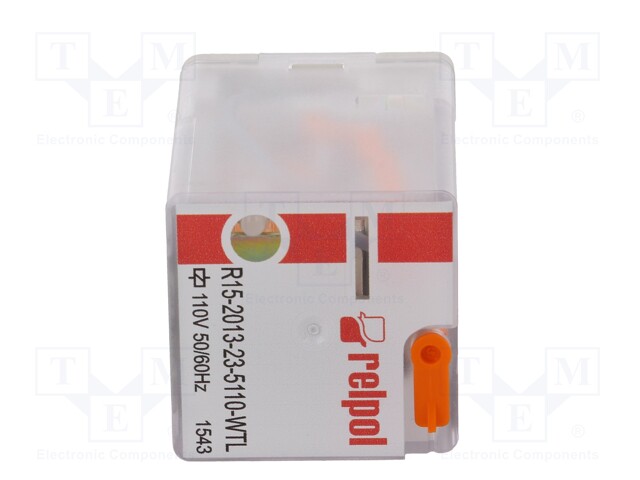

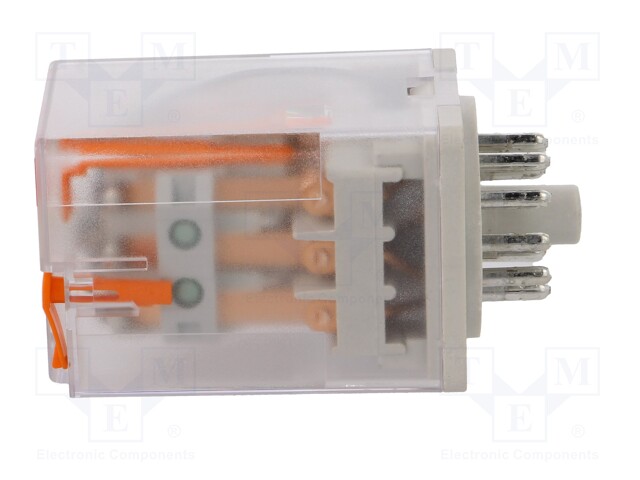

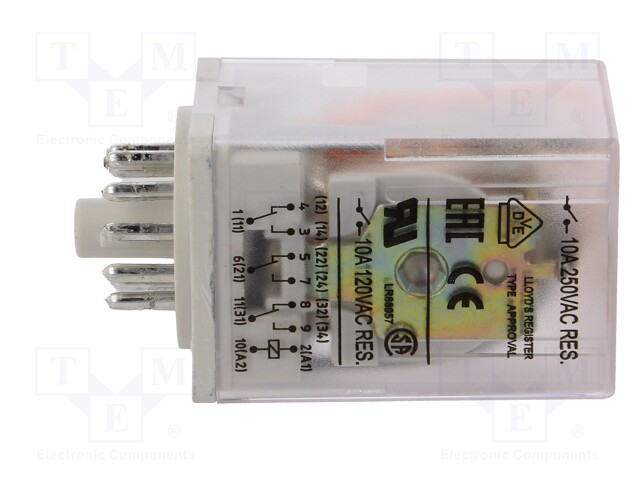

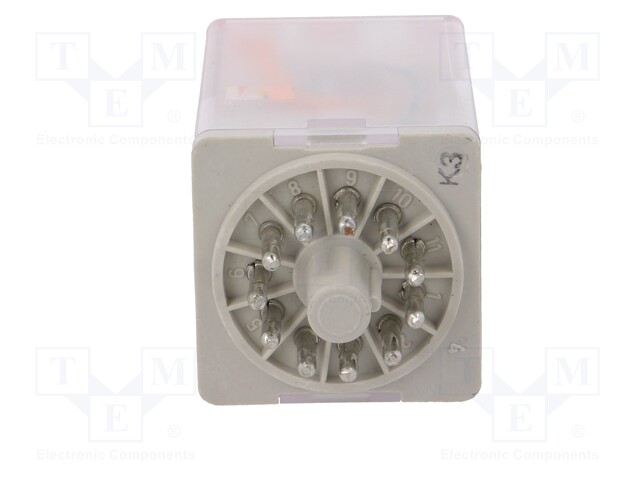

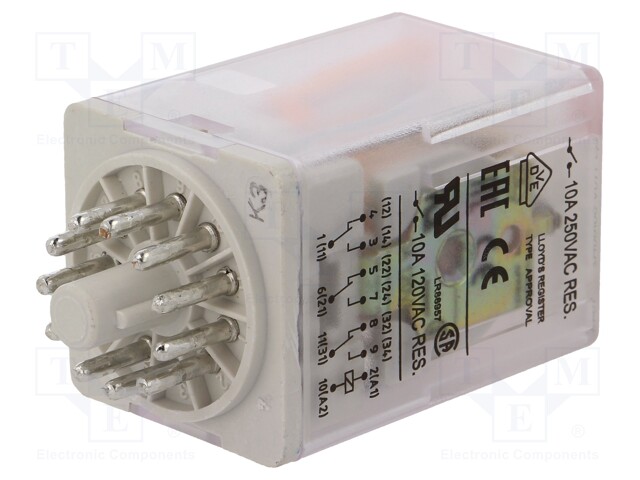

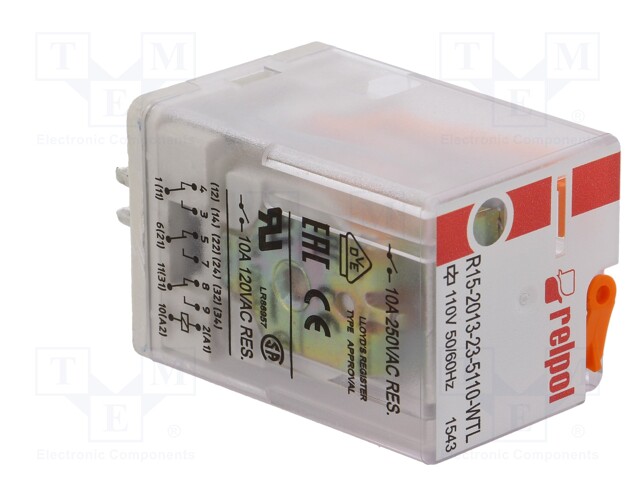

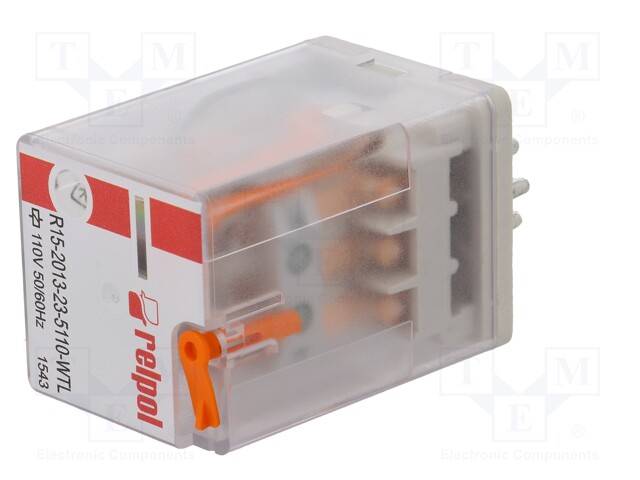

Relay: electromagnetic; 3PDT; Ucoil: 110VAC; 10A/250VAC; 10A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: R15-2013-23-5110-WTL
    Manufacturer: RELPOL
    Manufacturer code: R15-2013-23-5110-WTL
    • Mounting
    • Operating temperature
    • Leads
    • Number of pins
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Electrical connection
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Optional equipment
    • Optional equipment
    • Optional equipment
    • OEM number

    18.02 € 18.02 € (wo VAT) 18.02 EUR

    18.02 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; 3PDT; Ucoil: 110VAC; 10A/250VAC; 10A/24VDC

    Mounting socket
    Operating temperature -40...55°C
    Leads stud terminals
    Number of pins 11
    Body dimensions 36x42.5x54mm
    Switched voltage max. 250V DC, max. 440V AC
    Electrical connection round socket
    Contacts configuration 3PDT
    DC contacts rating @R 10A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 20A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 2.8VA
    Relay series R15
    Optional equipment light indicator, mechanical indicator, test button with blocking function
    OEM number 804648
