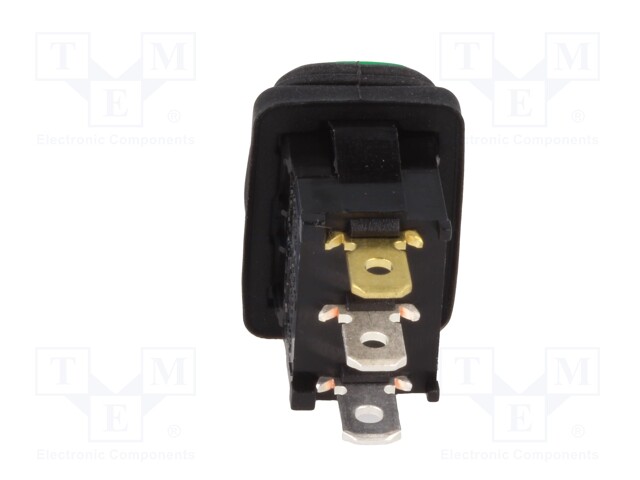

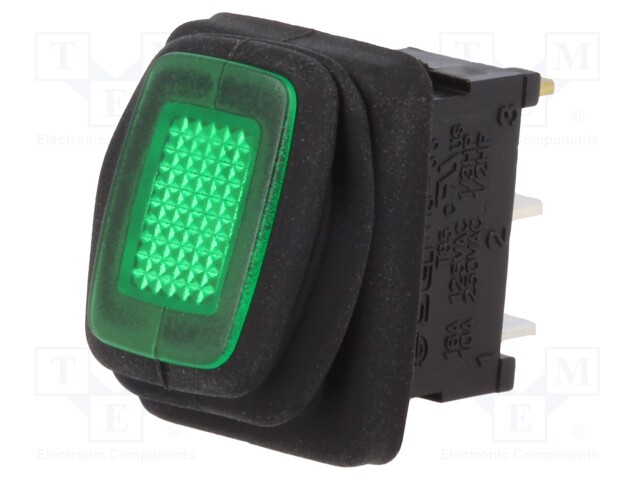

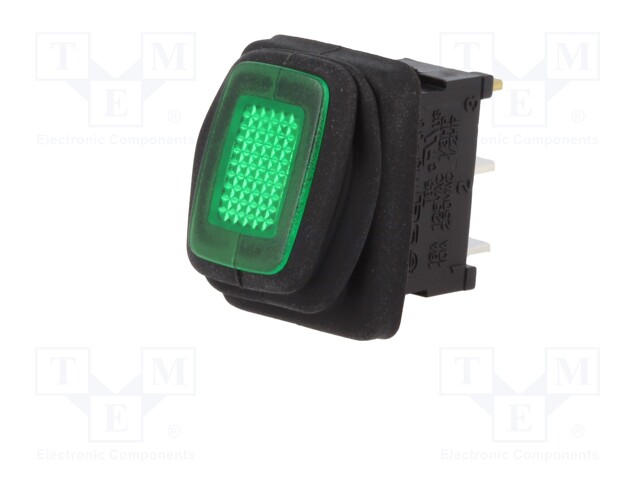

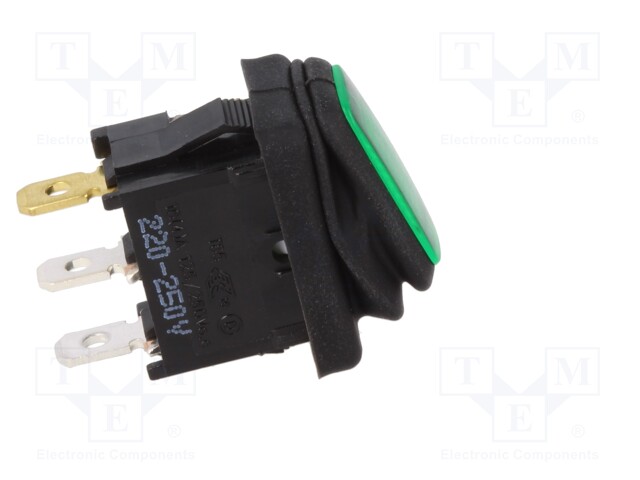

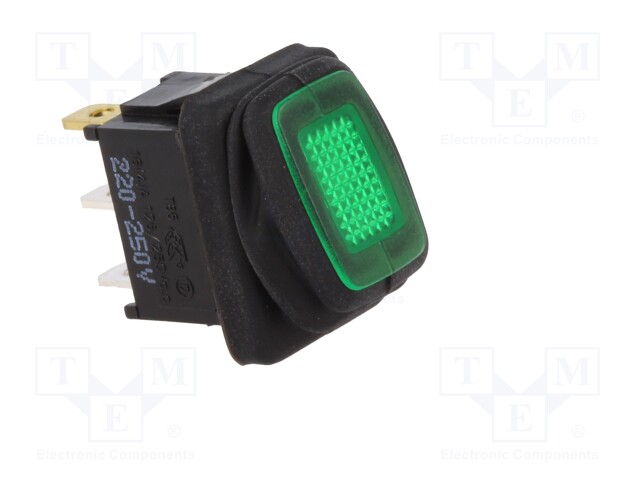

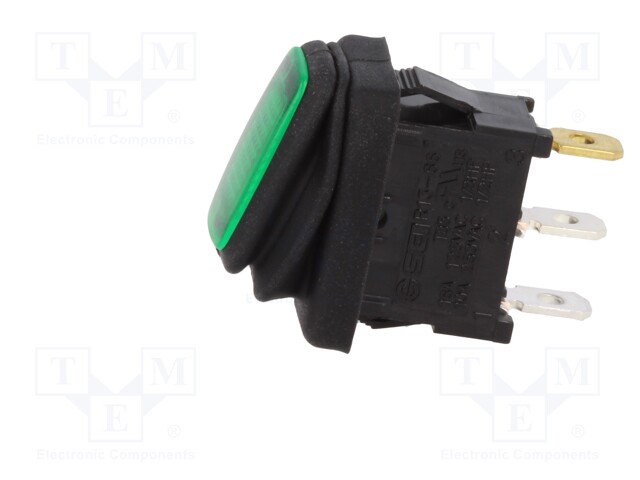

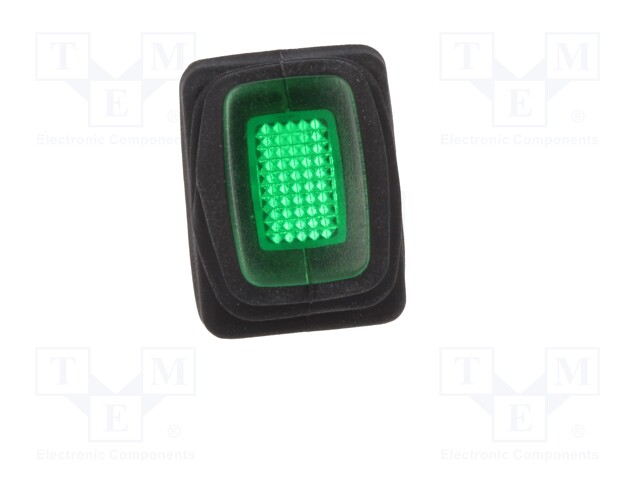

ROCKER; SPST; Pos: 2; OFF-ON; 16A/250VAC; green; IP65; 50mΩ; UL94V-2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: R13-66B8-02-BBG
    Manufacturer: SCI
    Manufacturer code: R13-66B8-02-BBG
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Leads
    • Max. contact resistance:
    • Flammability rating
    • Mounting hole diameter
    • Body colour
    • Body dimensions
    • Body dimensions
    • Dielectric strength
    • Panel thickness
    • Panel thickness
    • Backlight colour
    • Illumination
    • Illumination
    • Shape
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Button shape
    • Key button colour
    • Button marking
    • Illumination voltage

    2.88 € 2.88 € (wo VAT) 2.88 EUR

    2.88 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for ROCKER; SPST; Pos: 2; OFF-ON; 16A/250VAC; green; IP65; 50mΩ; UL94V-2

    Operating temperature -20...85°C
    IP rating IP65
    Type of switch ROCKER
    Number of positions 2
    Leads 4,8x0,8mm connectors, 6,3x0,8mm connectors
    Max. contact resistance: 50mΩ
    Flammability rating UL94V-2
    Mounting hole diameter 19.8x13mm
    Body colour black
    Body dimensions 23.4x17.4x25.5mm, 21x15x13.8mm
    Dielectric strength 1.5kV AC
    Panel thickness max. 2.5mm, max. 3mm
    Backlight colour green
    Illumination neon lamp, LED
    Shape rectangular
    Contacts configuration SPST
    AC contacts rating @R 10A / 250V AC
    Switching method ON-OFF
    Stable positions number 2
    Button shape rectangular
    Key button colour green
    Button marking blank
    Illumination voltage 230V
