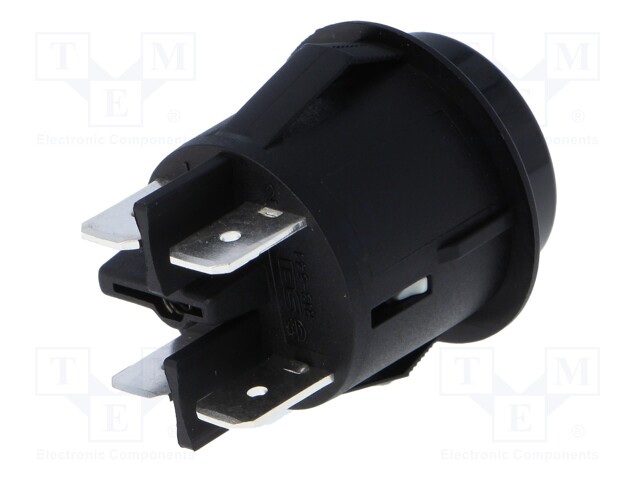

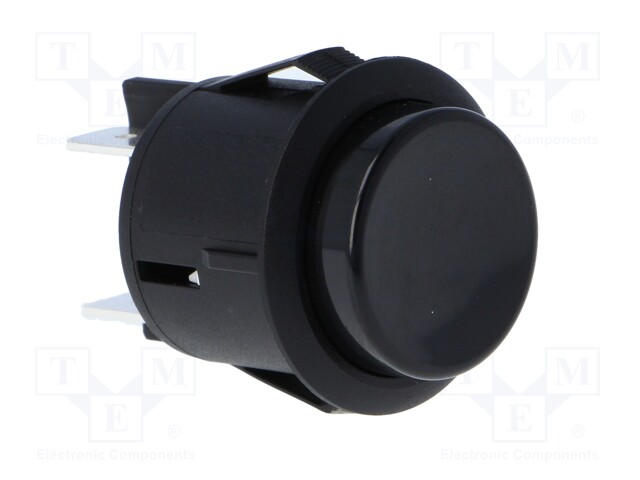

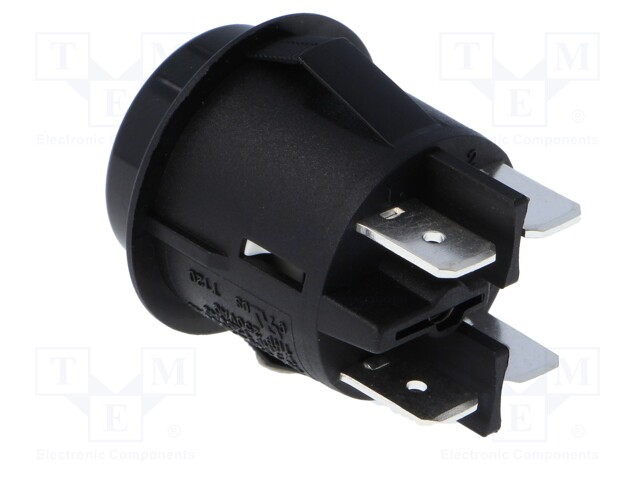

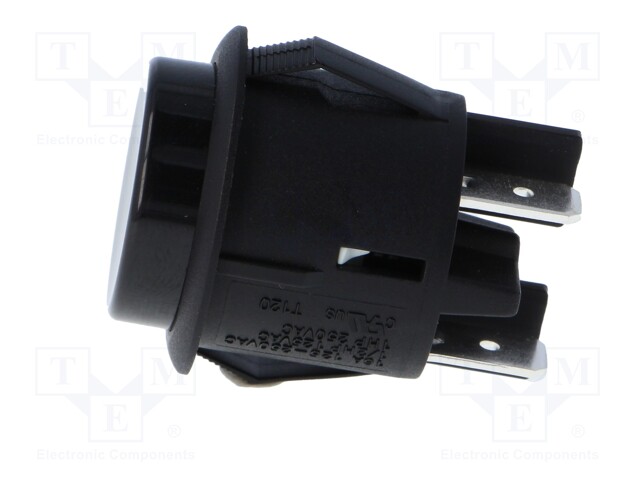

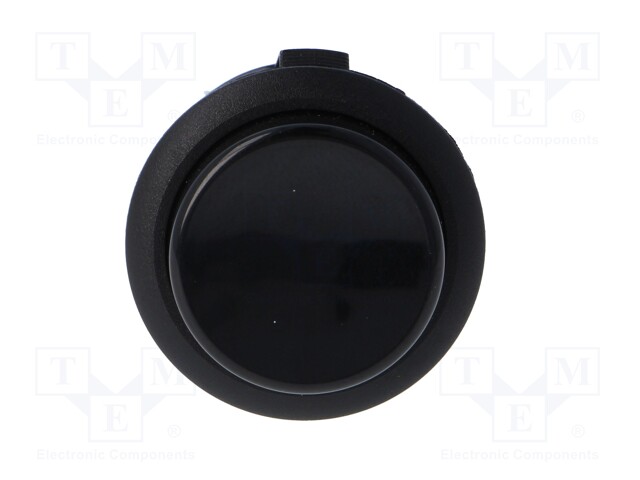

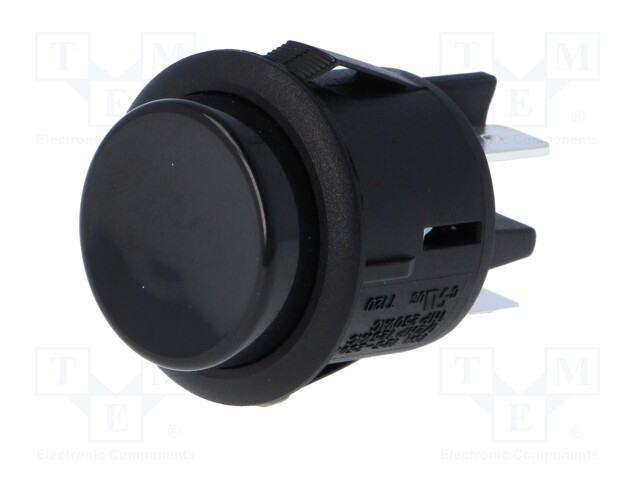

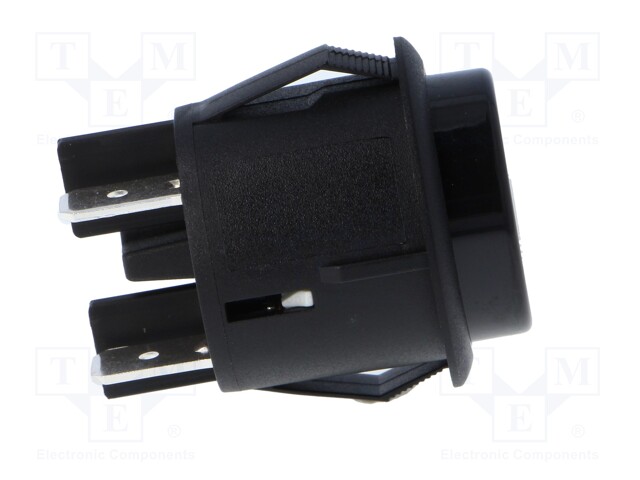

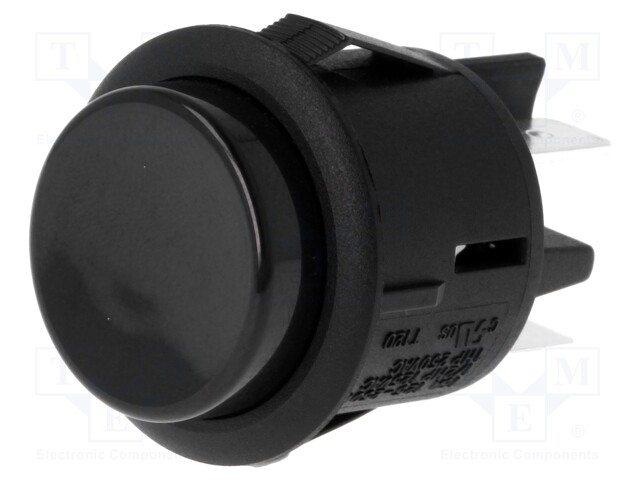

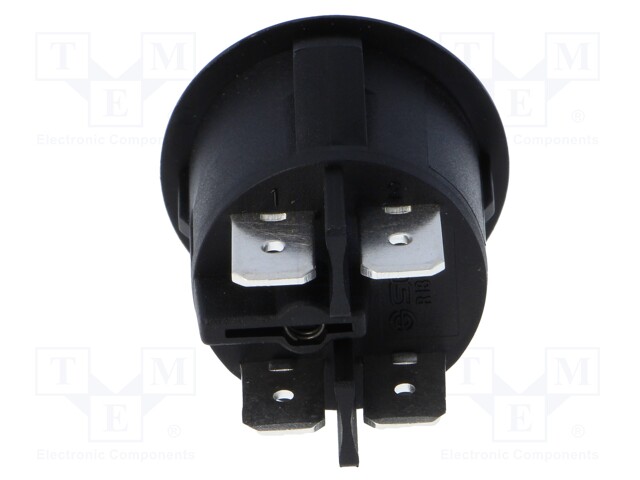

Switch: push-button; Pos: 2; DPST-NO; 16A/250VAC; black; none; 50mΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: R13-541A-01-BR
    Manufacturer: SCI
    Manufacturer code: R13-541A-01-BR
    • Mounting
    • Operating temperature
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Body material
    • Flammability rating
    • Mounting hole diameter
    • Body dimensions
    • Panel thickness
    • Illumination
    • Terminals plating
    • AC test voltage
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator colour
    • Button shape
    • Button shape

    6.56 € 6.56 € (wo VAT) 6.5600000000000005 EUR

    6.56 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: push-button; Pos: 2; DPST-NO; 16A/250VAC; black; none; 50mΩ

    Mounting on panel
    Operating temperature -25...70°C
    Type of switch push-button
    Number of positions 2
    Leads 6,35mm connectors
    Max. contact resistance: 50mΩ
    Body material polyamide
    Flammability rating UL94V-2
    Mounting hole diameter Ø25mm
    Body dimensions Ø26x27mm
    Panel thickness max. 3mm
    Illumination none
    Terminals plating silver plated
    AC test voltage 1.5kV
    Contacts configuration DPST-NO
    AC contacts rating @R 16A / 250V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Actuator colour black
    Button shape prominent, round
