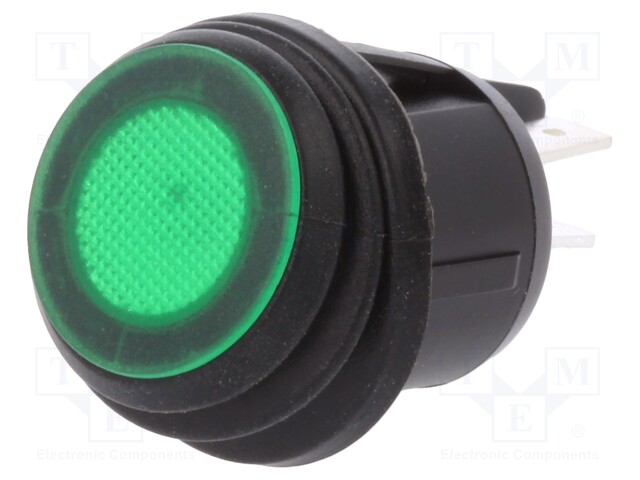

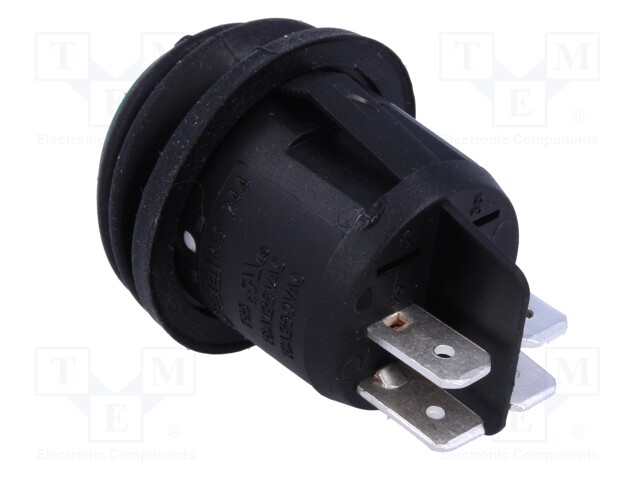

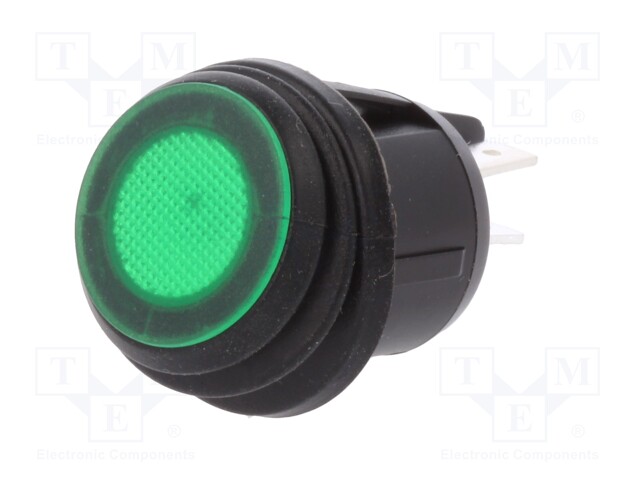

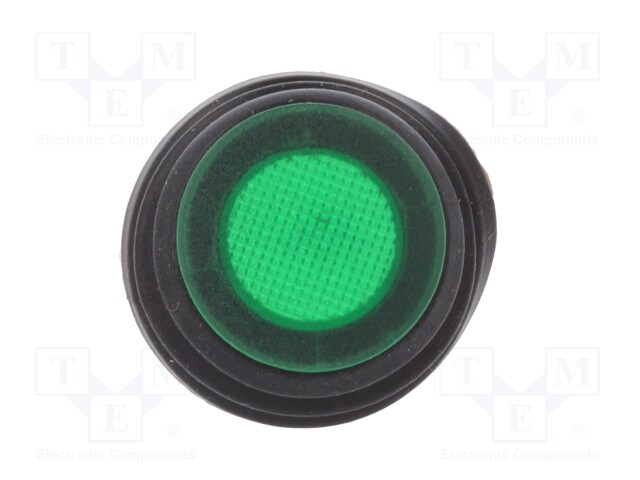

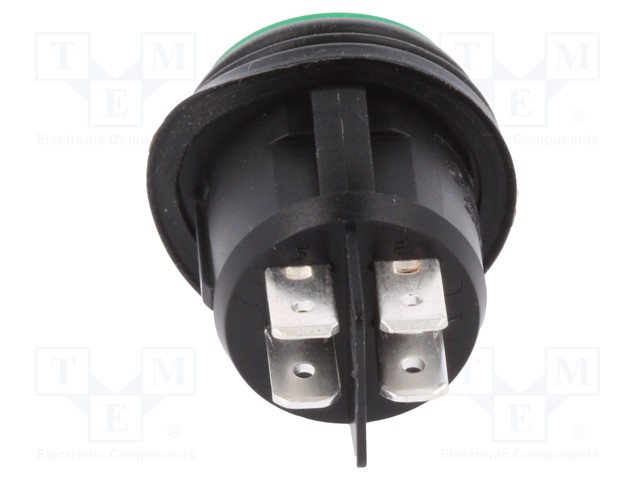

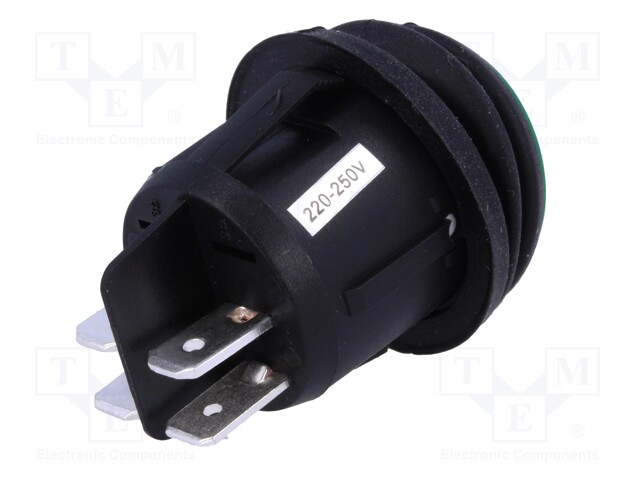

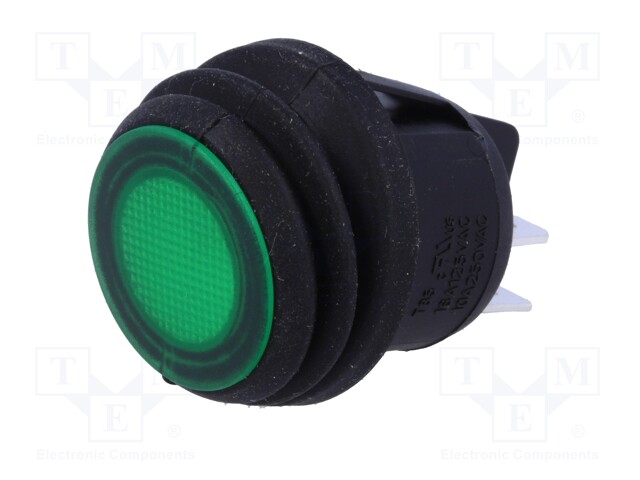

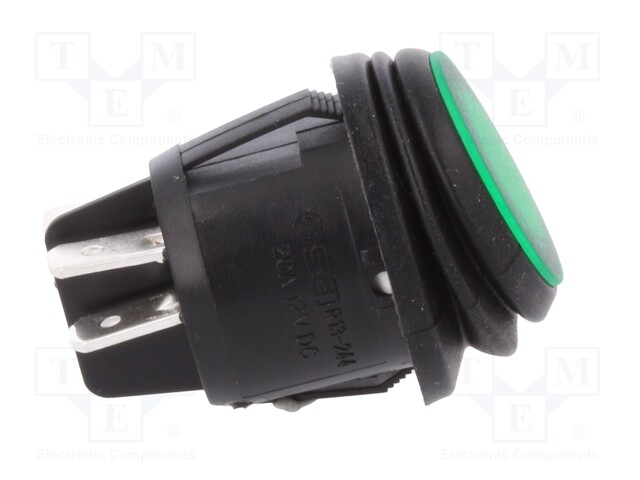

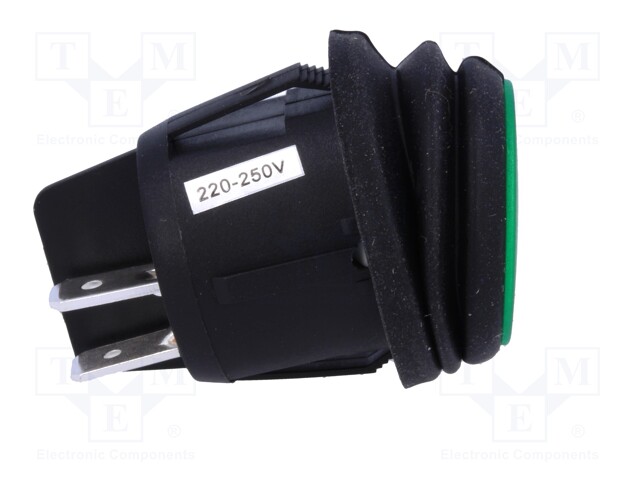

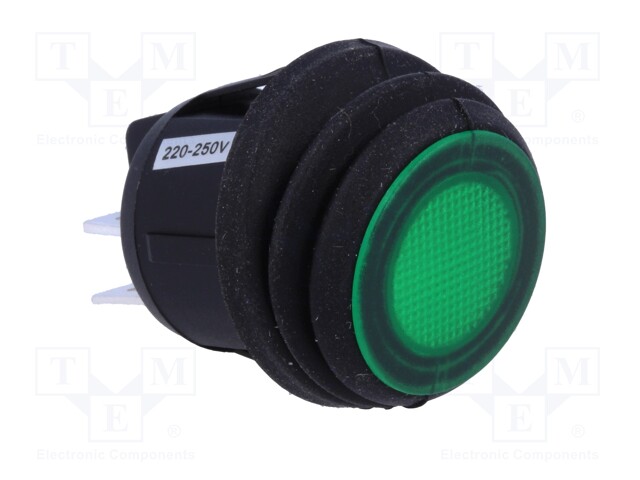

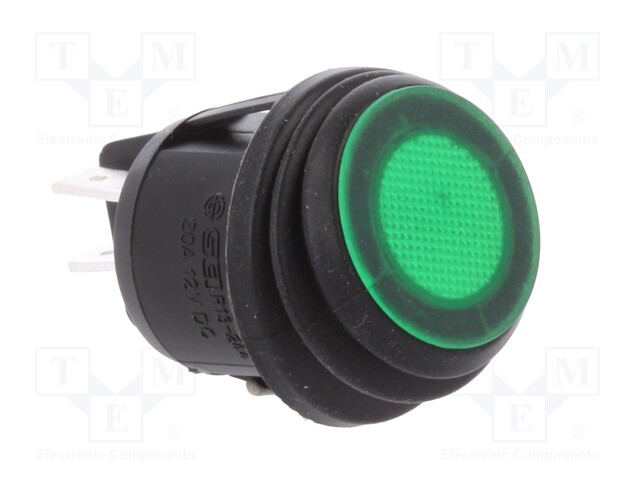

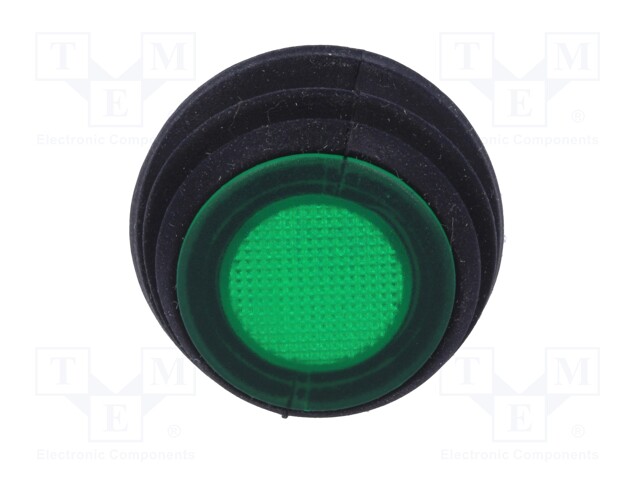

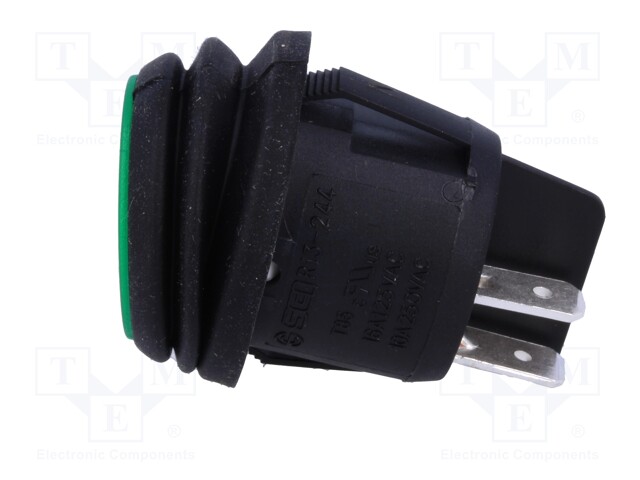

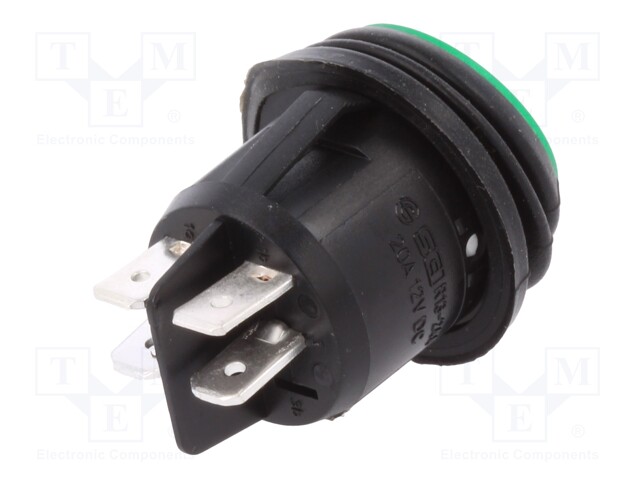

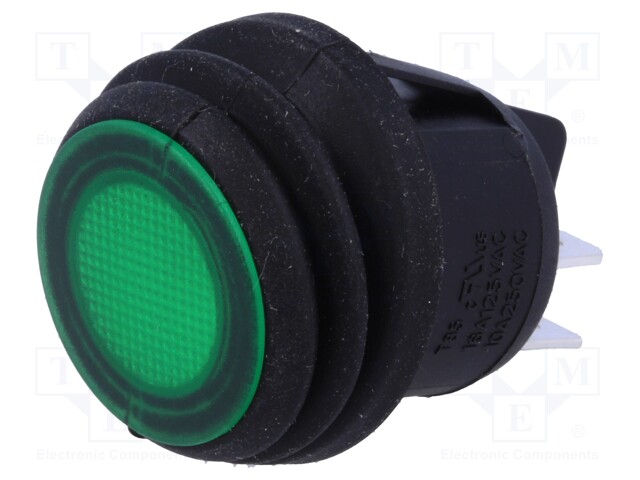

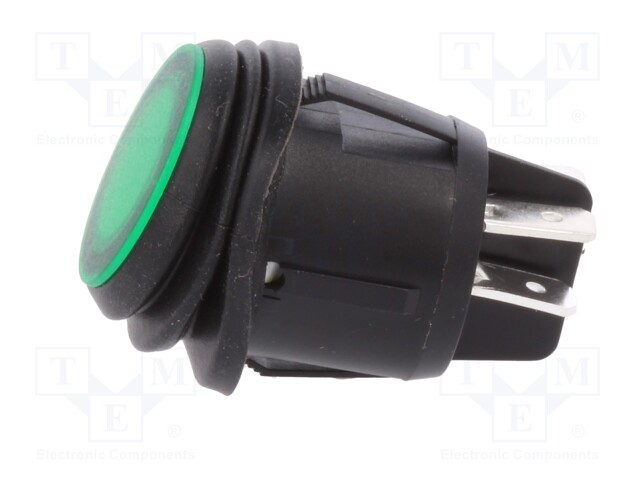

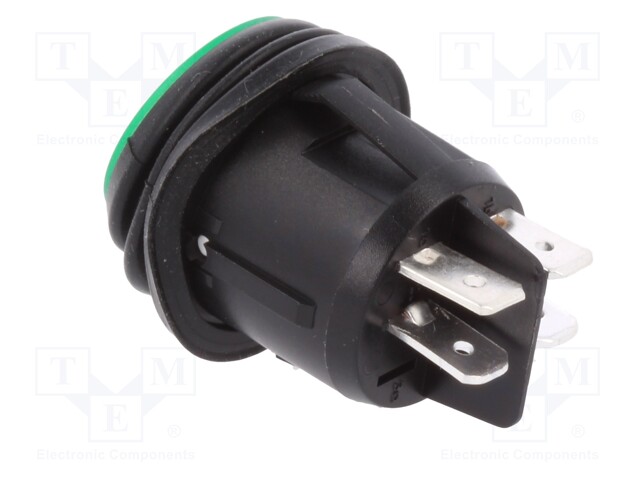

ROCKER; DPST; Pos: 2; OFF-ON; 20A/12VDC; green; IP65; LED 12VDC; 50mΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: R13-244B8-02-BBG
    Manufacturer: SCI
    Manufacturer code: R13-244B8-02-BBG
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Leads
    • Max. contact resistance:
    • Flammability rating
    • Mounting hole diameter
    • Body colour
    • Panel thickness
    • Panel thickness
    • Backlight colour
    • Illumination
    • Illumination
    • Shape
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Button shape
    • Key button colour
    • Button marking

    3.32 € 3.32 € (wo VAT) 3.3200000000000003 EUR

    3.32 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for ROCKER; DPST; Pos: 2; OFF-ON; 20A/12VDC; green; IP65; LED 12VDC; 50mΩ

    Operating temperature -20...85°C
    IP rating IP65
    Type of switch ROCKER
    Number of positions 2
    Leads 4,8x0,8mm connectors, 6,3x0,8mm connectors
    Max. contact resistance: 50mΩ
    Flammability rating UL94V-2
    Mounting hole diameter Ø20.2mm
    Body colour black
    Panel thickness max. 2.5mm, max. 3mm
    Backlight colour green
    Illumination neon lamp, LED
    Shape round
    Contacts configuration DPST
    DC contacts rating @R 20A / 12V DC
    AC contacts rating @R 10A / 250V AC
    Switching method ON-OFF
    Stable positions number 2
    Button shape round
    Key button colour green
    Button marking blank
