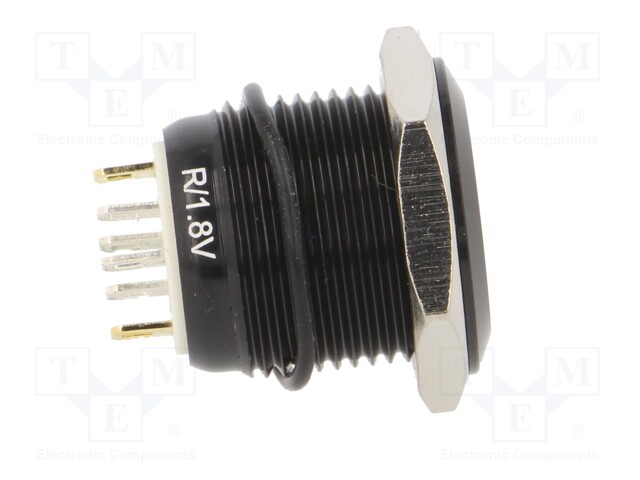

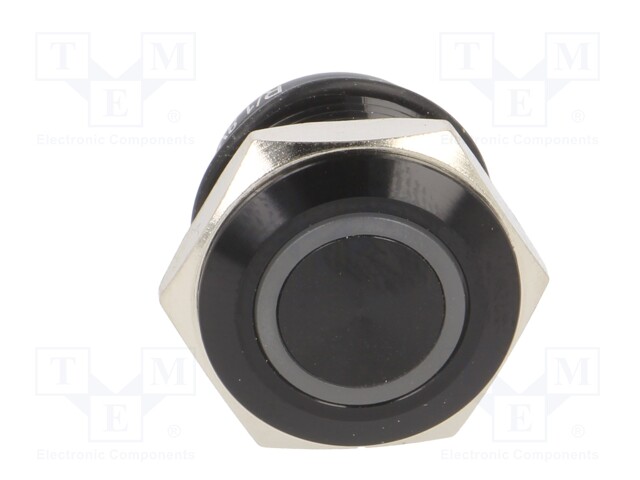

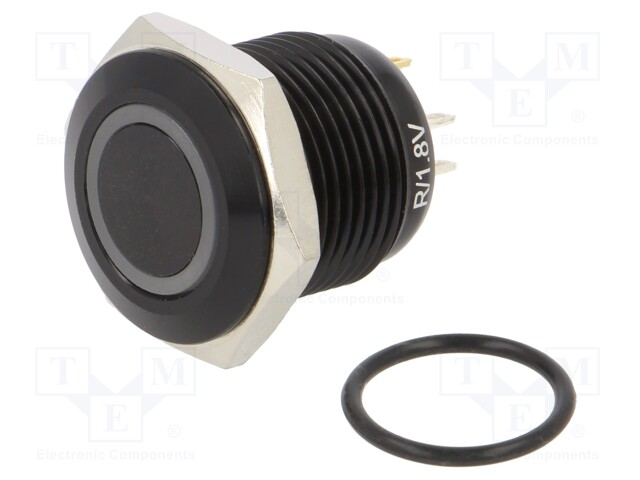

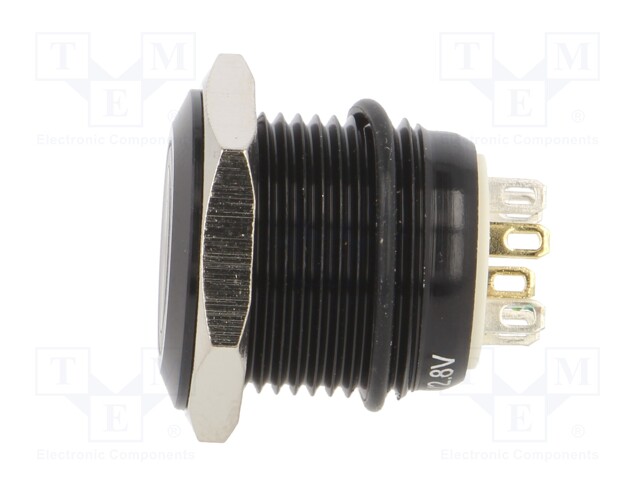

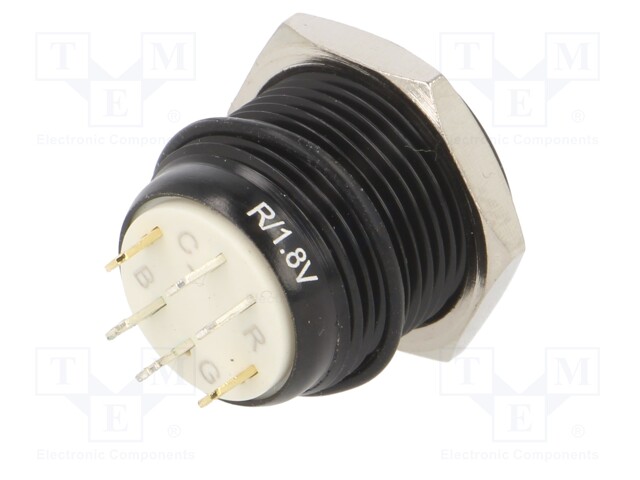

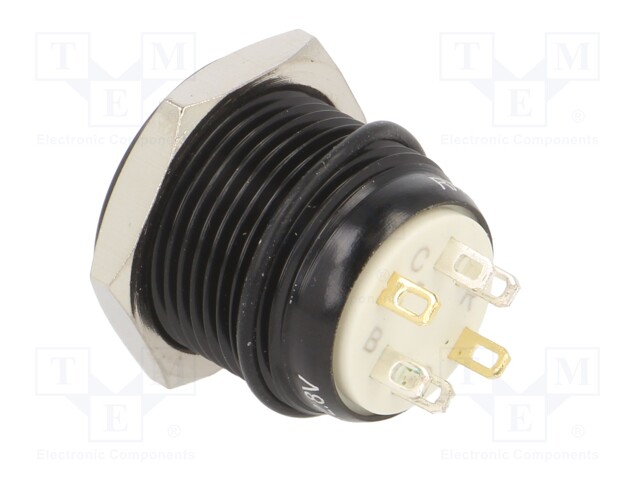

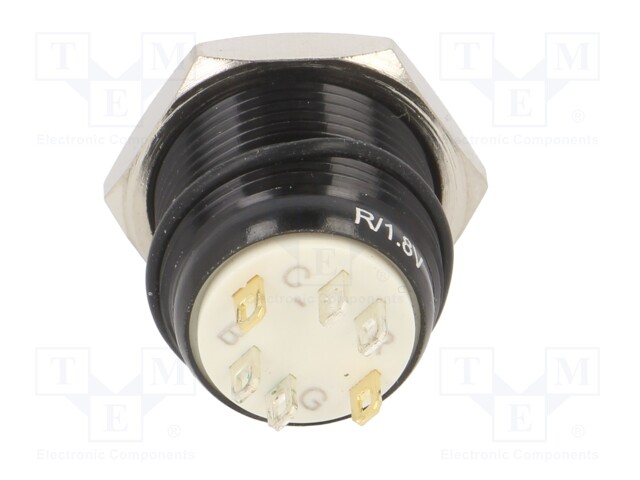

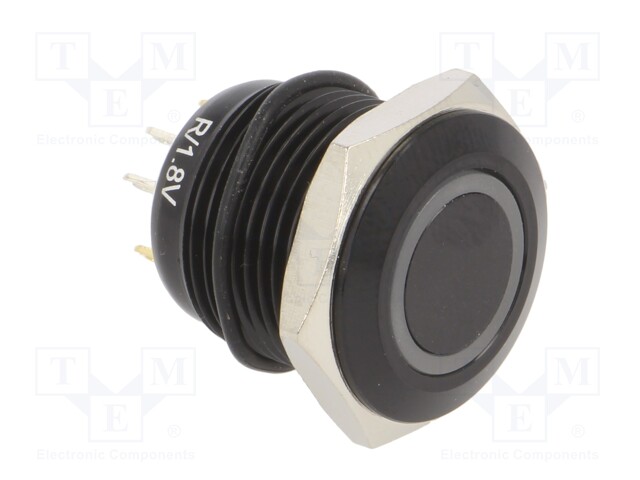

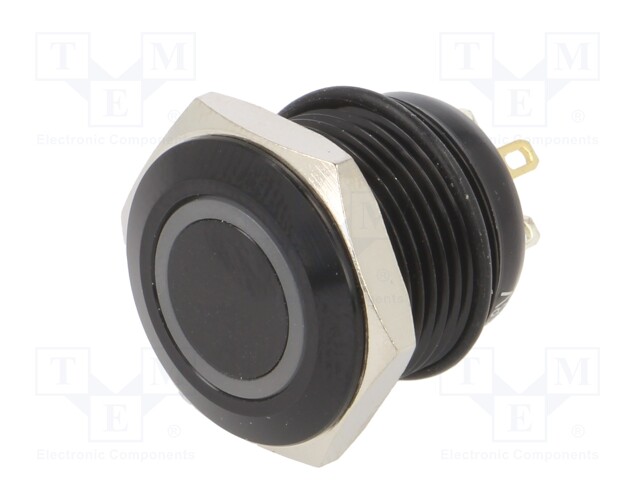

Switch: vandal resistant; Pos: 2; SPST-NO; 2A/48VDC; IP65; OFF-(ON)

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PV6F24011-3R1
    Manufacturer: E-SWITCH
    Manufacturer code: PV6F24011-3R1
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Mounting hole diameter
    • Body colour
    • Body dimensions
    • Mechanical durability
    • Illumination
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Actuator colour
    • Button shape
    • Button shape
    • Button height

    17.74 € 17.74 € (wo VAT) 17.740000000000002 EUR

    17.74 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: vandal resistant; Pos: 2; SPST-NO; 2A/48VDC; IP65; OFF-(ON)

    Mounting on panel
    Operating temperature -20...55°C
    IP rating IP65
    Type of switch vandal resistant
    Number of positions 2
    Leads for soldering
    Contact material silver
    Max. contact resistance: 50mΩ
    Mounting hole diameter Ø16mm
    Body colour black
    Body dimensions Ø18x16.5mm
    Mechanical durability 1000000cycles
    Illumination LED, ring
    Min. insulation resistance 1GΩ
    Electrical life 50000cycles
    Contacts configuration SPST-NO
    DC contacts rating @R 2A / 48V DC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 3.92N
    Actuator colour black
    Button shape flat, round
    Button height 1.5mm
