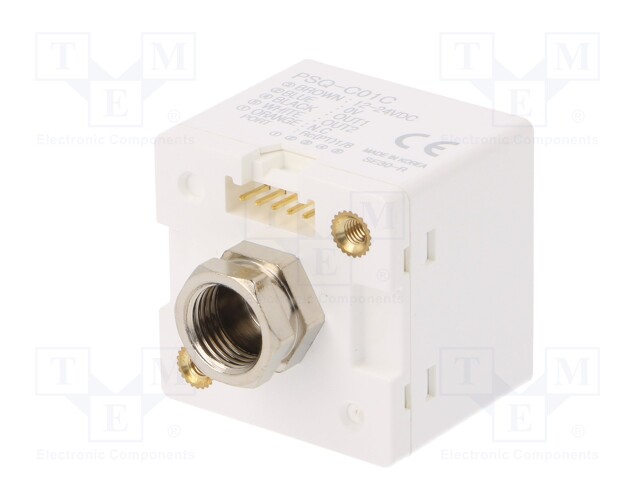

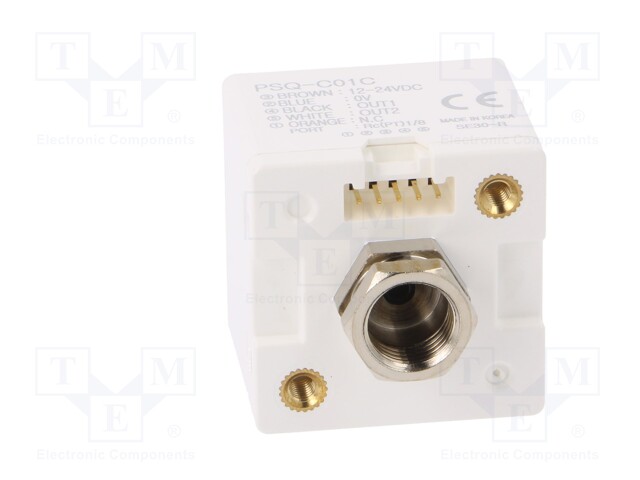

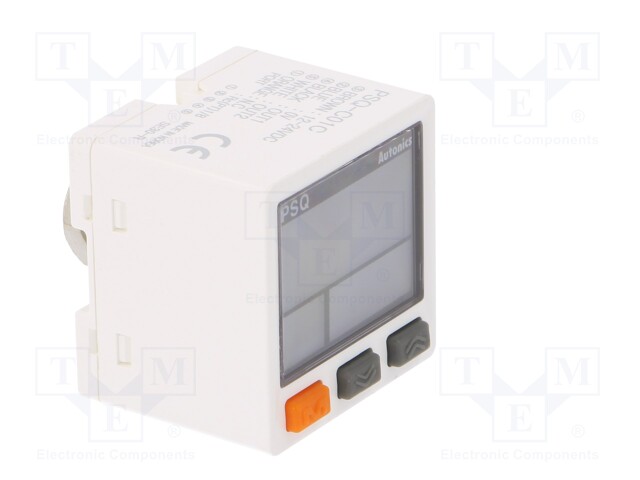

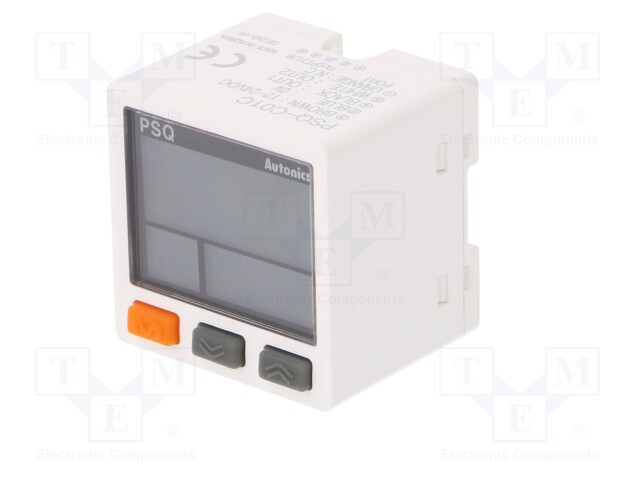

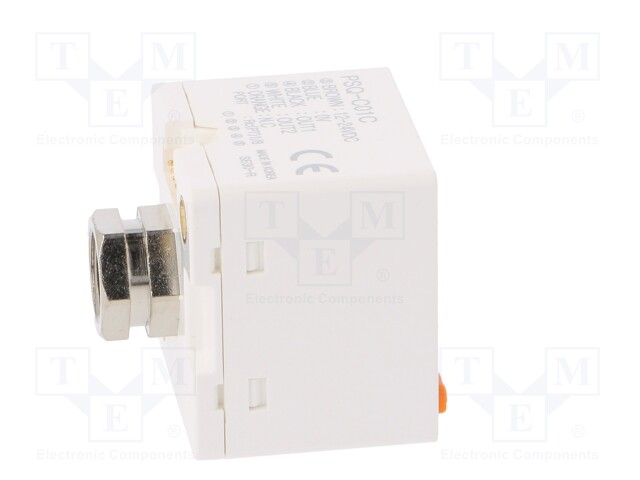

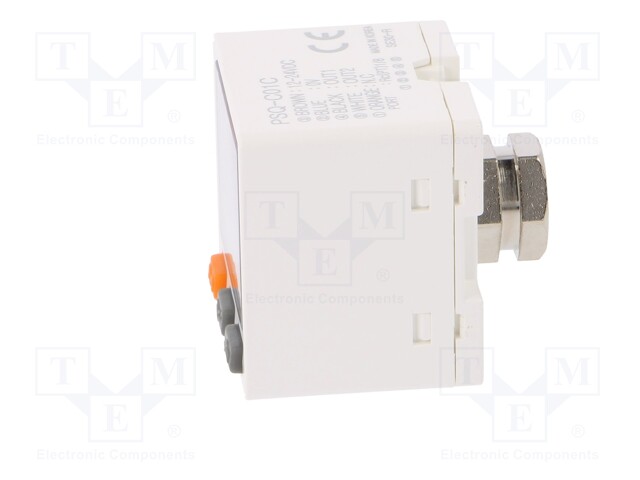

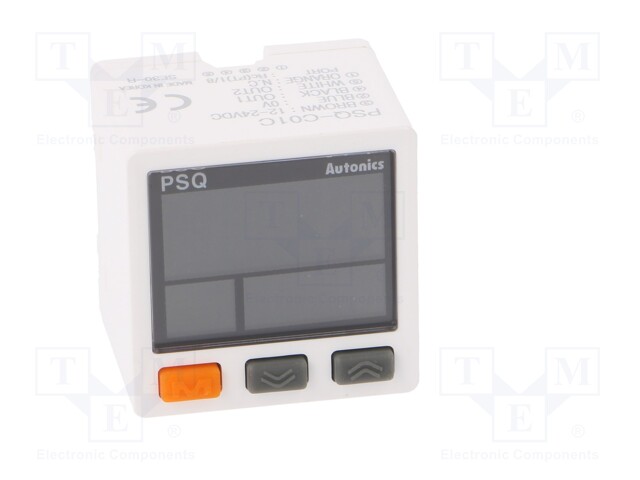

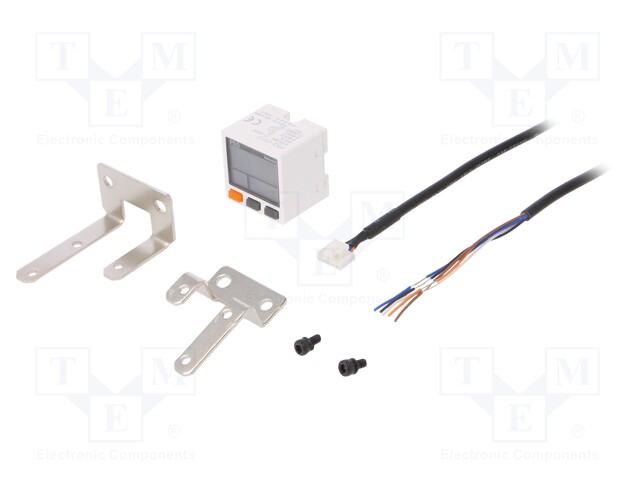

Module: transducer; pressure; -100÷+100 kPa; OUT 1: NPN,PNP

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PSQ-C01C-RC1/8
    Manufacturer: AUTONICS
    Manufacturer code: PSQ-C01C-RC1/8
    • Supply voltage
    • Operating temperature
    • IP rating
    • Type of module
    • Series
    • Body dimensions
    • Kind of display used
    • Measurement accuracy
    • Controlled parameter
    • Kind of output 1
    • Kind of output 1
    • Connection
    • The programming method

    84.95 € 84.95 € (wo VAT) 84.95 EUR

    84.95 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Module: transducer; pressure; -100÷+100 kPa; OUT 1: NPN,PNP

    Supply voltage 12...24V DC
    Operating temperature -10...50°C
    IP rating IP40
    Type of module transducer
    Series PSQ
    Body dimensions 30x30x24.8mm
    Kind of display used LCD
    Measurement accuracy 0.2%
    Controlled parameter pressure
    Kind of output 1 NPN, PNP
    Connection RC 1/8"
    The programming method keypad
