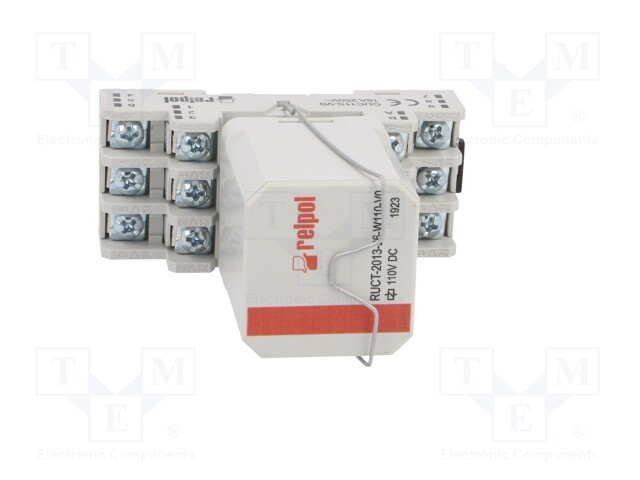

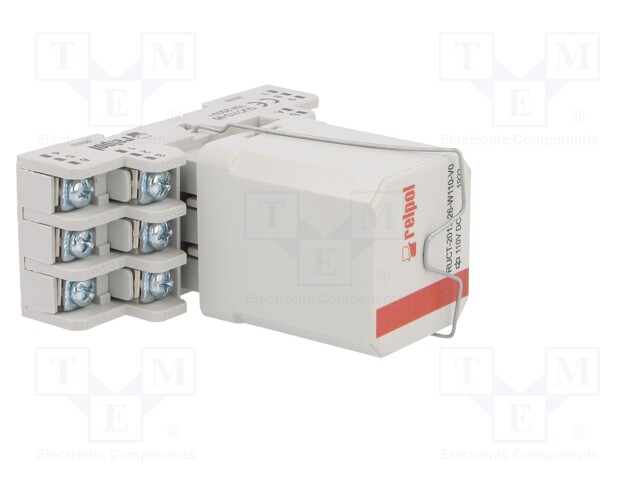

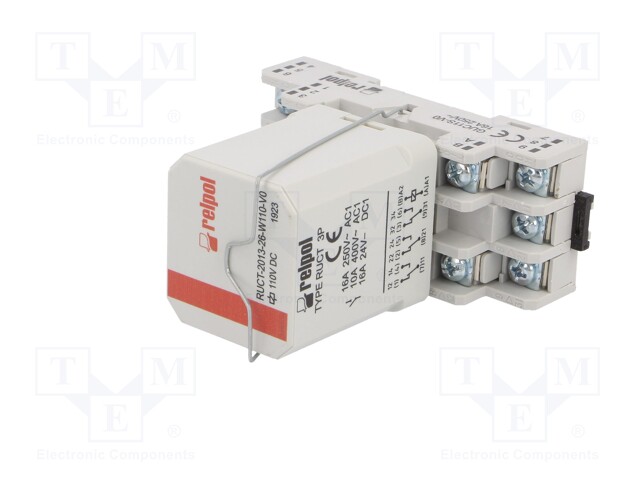

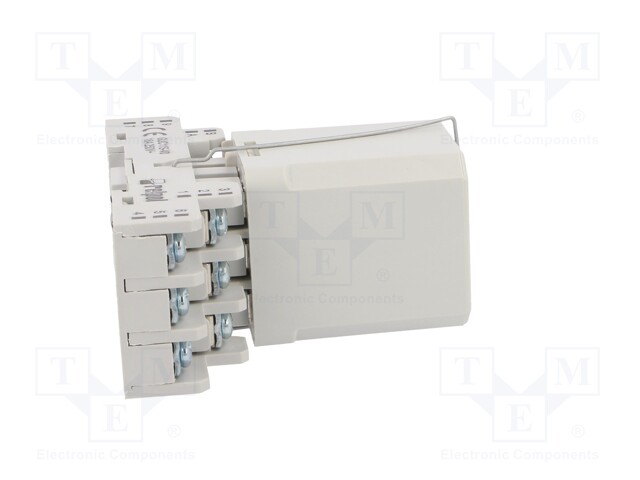

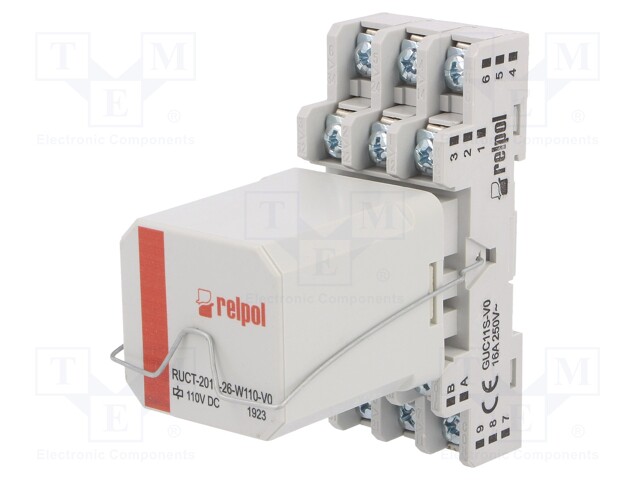

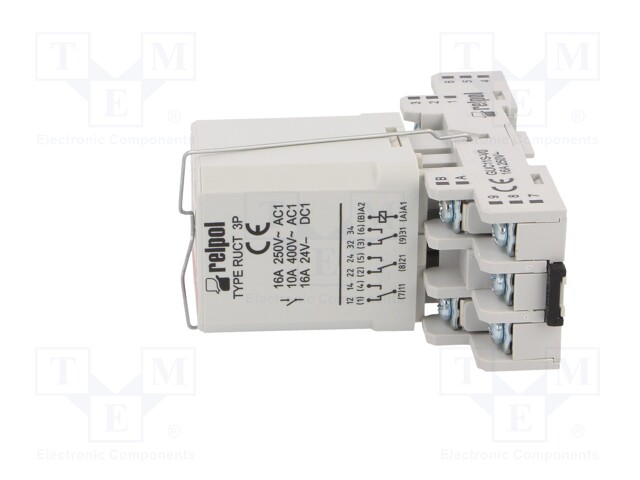

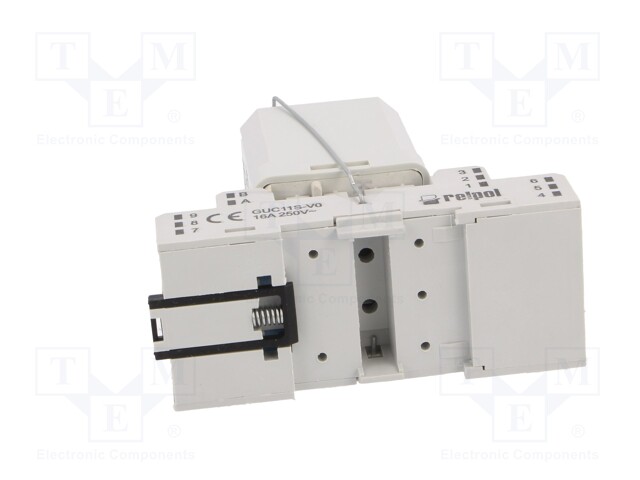

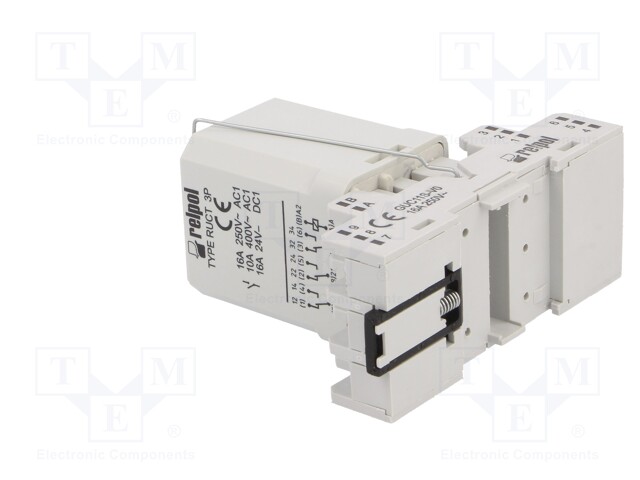

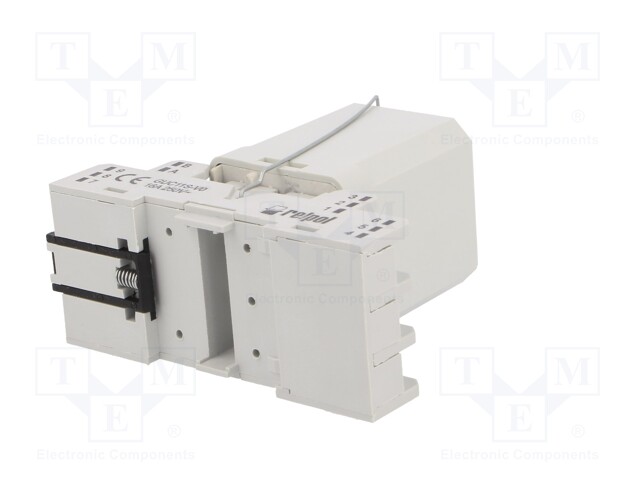

Relay: interface; 3PDT; Ucoil: 110VDC; 16A; 16A/250VAC; 16A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PRUCT-2013-26-W110-V0
    Manufacturer: RELPOL
    Manufacturer code: PRUCT-2013-26-W110-V0
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Contact material
    • Flammability rating
    • Body dimensions
    • Kit contents
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Conform to the norm
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Relay series
    • Operate time
    • Release time
    • OEM number

    40.52 € 40.52 € (wo VAT) 40.52 EUR

    40.52 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: interface; 3PDT; Ucoil: 110VDC; 16A; 16A/250VAC; 16A/24VDC

    Mounting for DIN rail mounting
    Max. operating current 16A
    Operating temperature -40...55°C
    Leads screw terminals
    Contact material AgNi
    Flammability rating UL94V-0
    Body dimensions 41.5x77.3x84.5mm
    Kit contents ejector, RUCT relay, socket
    Switched voltage max. 250V AC, max. 250V DC
    Switching capacity 2.5kVA
    Conform to the norm EN 50155
    Rated coil voltage 110V DC
    Contacts configuration 3PDT
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Relay variant Relay set
    Type of relay interface
    Relay series PRUCT
    Operate time 20ms
    Release time 15ms
    OEM number 862280
