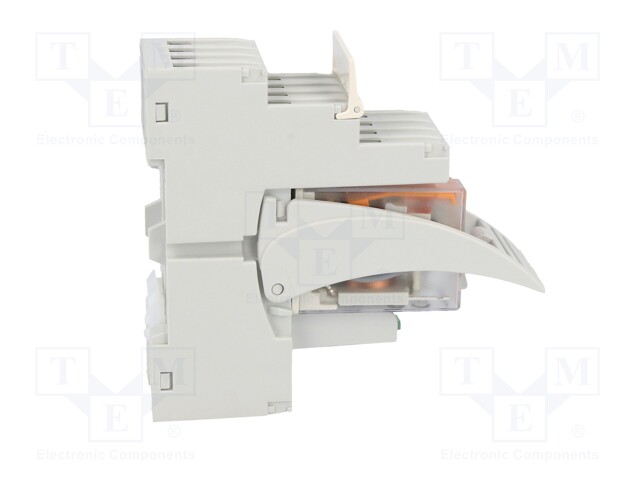

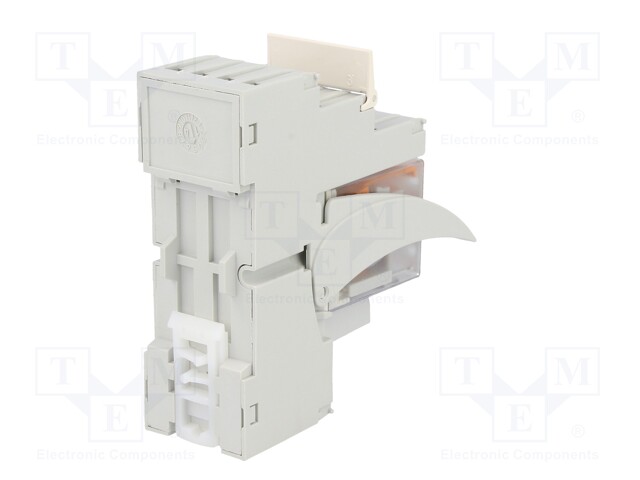

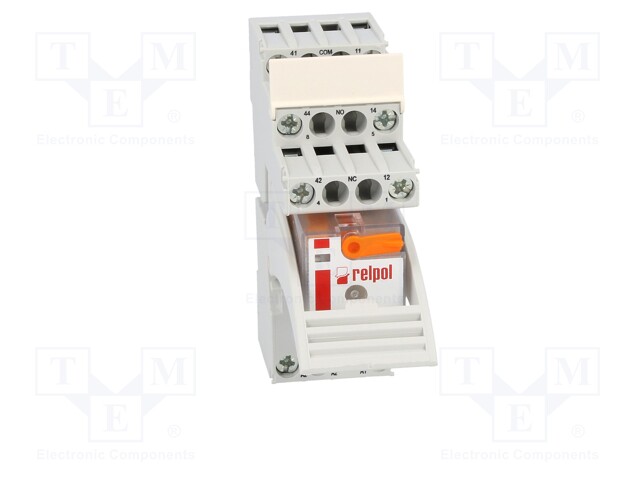

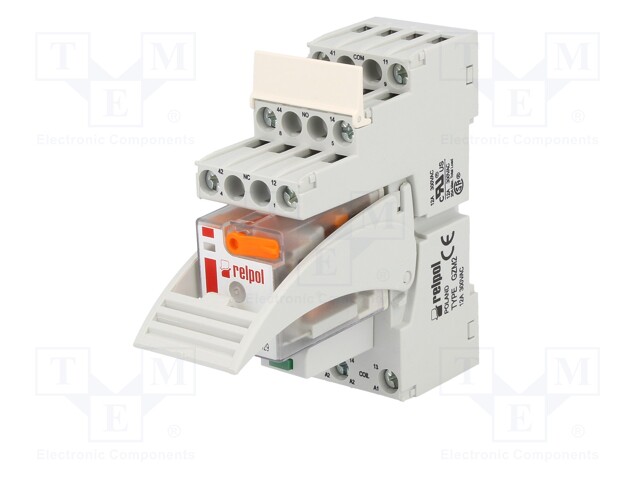

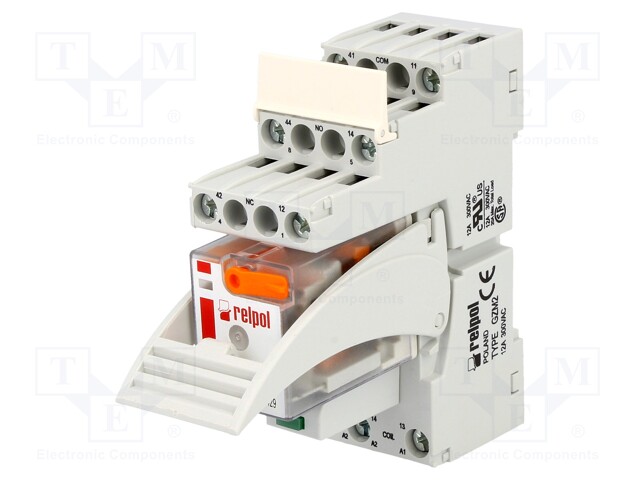

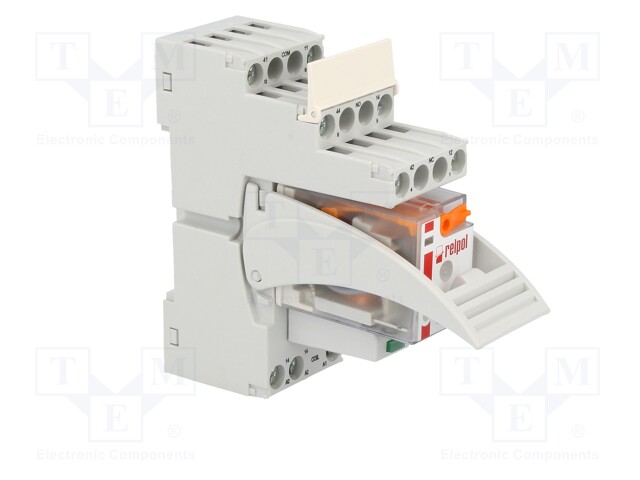

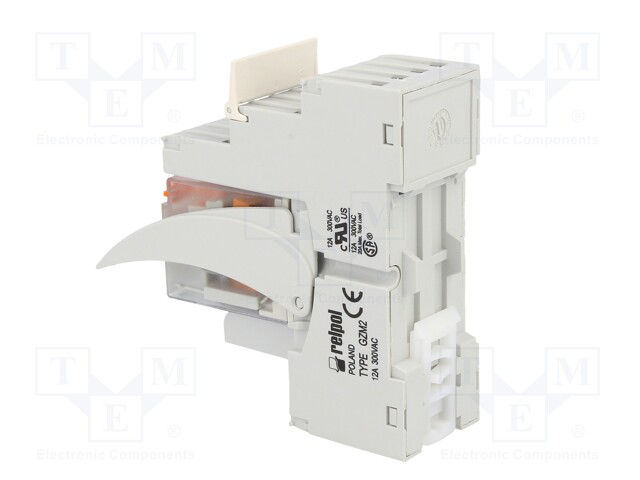

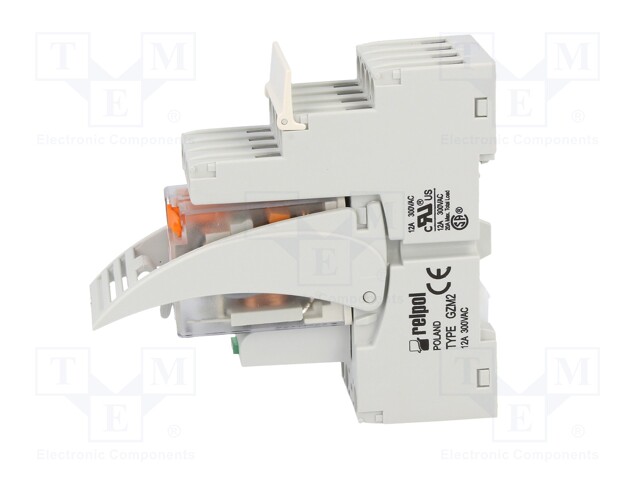

Relay: interface; DPDT; Ucoil: 24VAC; 12A; 12A/250VAC; 12A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PIR2-024AC-00LV
    Manufacturer: RELPOL
    Manufacturer code: PIR2-024AC-00LV
    • Mounting
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Relay series
    • OEM number

    16.25 € 16.25 € (wo VAT) 16.25 EUR

    16.25 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: interface; DPDT; Ucoil: 24VAC; 12A; 12A/250VAC; 12A/24VDC

    Mounting on panel, for DIN rail mounting
    Max. operating current 12A
    Operating temperature -40...55°C
    Leads screw terminals
    Contact material AgNi
    Body dimensions 75x27x82mm
    Kit contents ejector, indication module, label, R2 relay, socket
    Switched voltage max. 250V AC, max. 250V DC
    Coil resistance 158Ω
    Contacts configuration DPDT
    DC contacts rating @R 12A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 12A / 250V AC
    Relay variant Relay set
    Type of relay interface
    Relay series R2
    OEM number 854798
