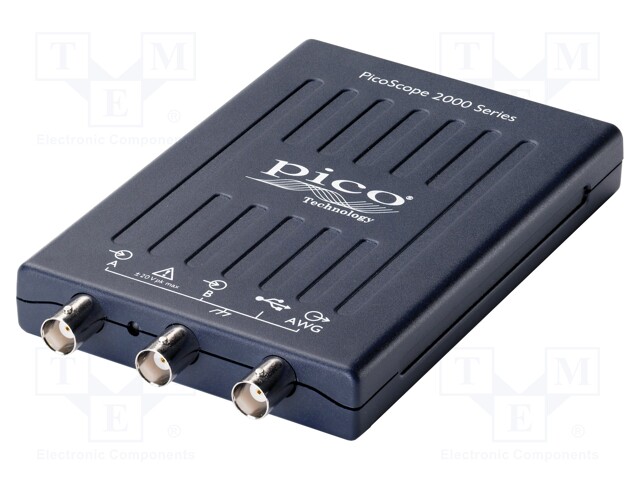

PC connected oscilloscope; Band: ≤25MHz; Channels: 2; 16kpts; 20V
Multiples:
1.0
Minimum quantity:
1.0
Product code:
PICOSCOPE 2205A-D2
Manufacturer: Pico Technology
Manufacturer code: PICOSCOPE 2205A-D2
Product downloads
Specification for PC connected oscilloscope; Band: ≤25MHz; Channels: 2; 16kpts; 20V
| Operating temperature | 0...50°C |
| Number of channels | 2 |
| Dimensions | 142x92x18.8mm |
| Converter resolution | 8bit |
| Operating system | Linux, Mac OS, Windows 10, Windows 7, Windows 8 |
| Producer guarantee (months) | 60 |
| Power supply | from USB port |
| Max. input voltage | 20V |
| Measuring instrument features | 12bit high resolution mode, 15 serial protocols analyse, including CAN, I<sup>2</sup>C, I<sup>2</sup>S, LIN, SENT, SPI and UART/RS-232, automatic measurements function, defined part of displayed signal zoom, FFT analysis, handheld design, mask testing, math channels, powerful tripping system, programmable alarm thresholds, segmented memory function, X-Y operation mode |
| Standard equipment | USB cable |
| Sampling | 200Msps (in real time), 4Gsps (in equivalent time) |
| Type of oscilloscope | PC connected oscilloscope |
| Input coupling | AC, DC |
