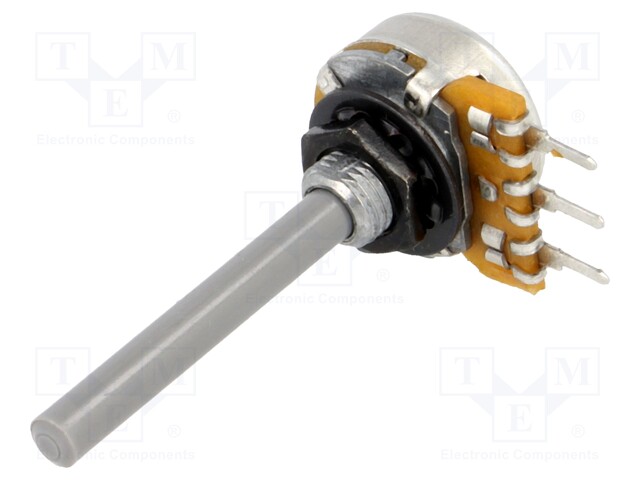

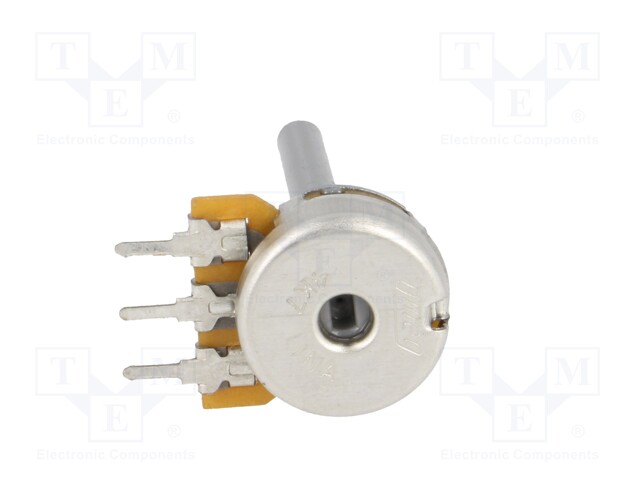

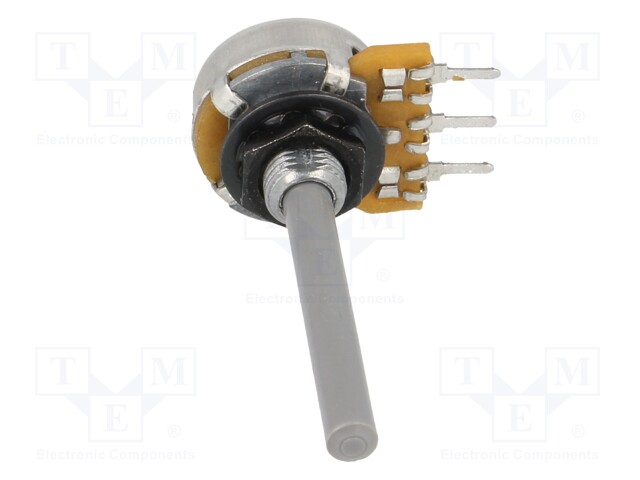

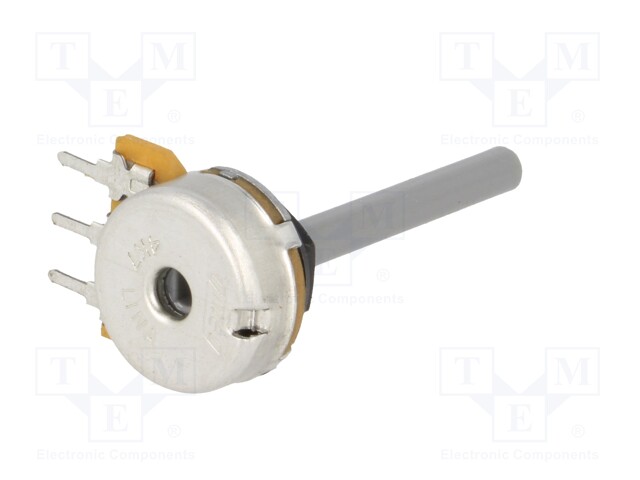

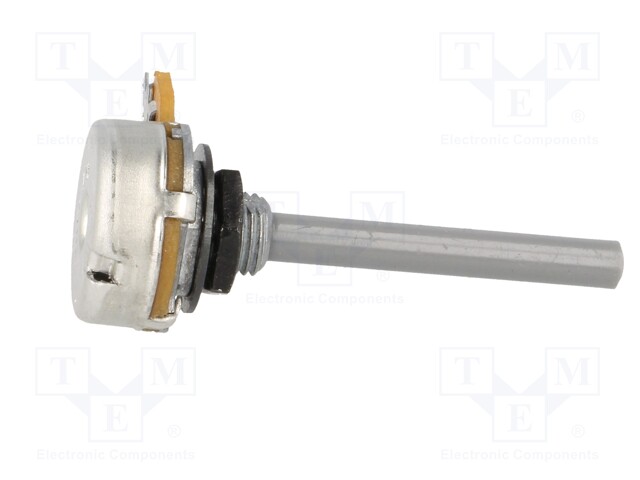

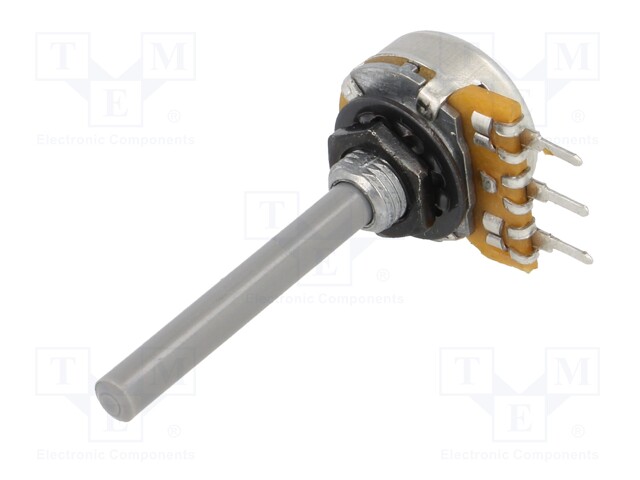

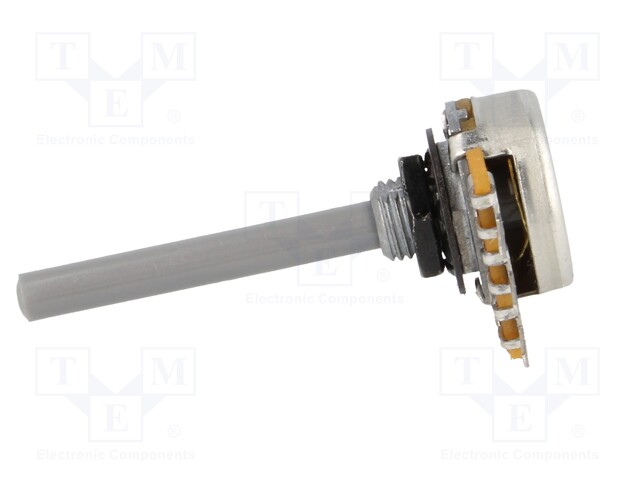

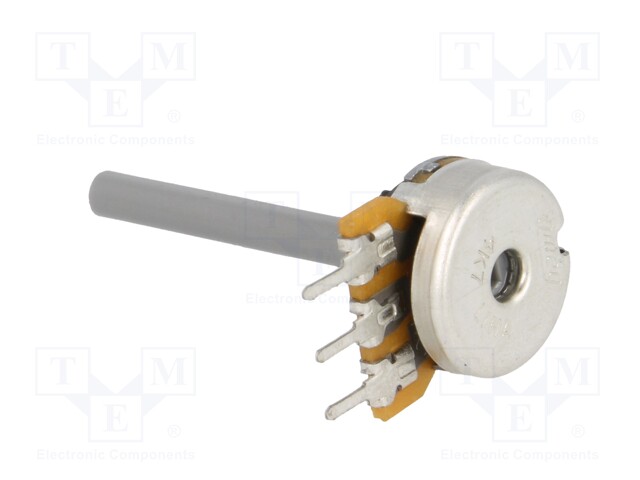

Potentiometer: shaft; single turn; 4.7kΩ; ±20%; 0.25W; linear; 4mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: PC16BU-4K7-LIN
    Manufacturer: OMEG
    Manufacturer code: PC16BU-4K7-LIN
    • Mounting
    • Power
    • Resistance
    • Tolerance
    • Terminal pitch
    • Body dimensions
    • Max. operating voltage
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Thread length
    • L shaft length
    • Kind of potentiometer
    • Type of potentiometer
    • Track material
    • Characteristics
    • Mechanical rotation angle
    • Potentiometer features

    3.36 € 3.36 € (wo VAT) 3.36 EUR

    3.36 €

    This combination does not exist.

    Add to Cart

    Specification for Potentiometer: shaft; single turn; 4.7kΩ; ±20%; 0.25W; linear; 4mm

    Mounting THT
    Power 250mW
    Resistance 4.7kΩ
    Tolerance ±20%
    Terminal pitch 5.08mm
    Body dimensions Ø16.5x9mm
    Max. operating voltage 350V DC
    Shaft length 29mm
    Shaft diameter 4mm
    Shaft surface smooth
    Thread length 6mm
    L shaft length 35mm
    Kind of potentiometer single turn
    Type of potentiometer shaft
    Track material plastic
    Characteristics linear
    Mechanical rotation angle 270°
    Potentiometer features mono
