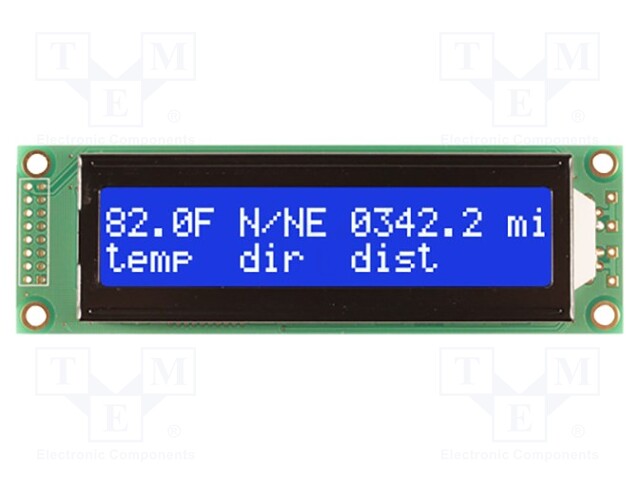

Display: LCD; alphanumeric; STN Negative; 20x2/2x20; blue; LED

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: NHD-0220DZ-NSW-BBW
    Manufacturer: NEWHAVEN DISPLAYTERNATIONAL
    Manufacturer code: NHD-0220DZ-NSW-BBW
    • Supply voltage
    • Operating temperature
    • Contacts pitch
    • Number of pins
    • Type of pin configuration
    • Number of characters (columns x lines)
    • Kind of display
    • Display technology
    • Backgr. colour
    • Backlight colour
    • Illumination
    • Window dimensions (H x W)
    • Kind of controller
    • Type of display
    • Digit height
    • Character width
    • Supported character set
    • Supported character set

    18.44 € 18.44 € (wo VAT) 18.44 EUR

    18.44 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Display: LCD; alphanumeric; STN Negative; 20x2/2x20; blue; LED

    Supply voltage 5V DC
    Operating temperature -20...70°C
    Contacts pitch 2.54mm
    Number of pins 16
    Type of pin configuration 2x8
    Number of characters (columns x lines) 20x2
    Kind of display alphanumeric
    Display technology STN Negative
    Backgr. colour blue
    Backlight colour white
    Illumination LED
    Window dimensions (H x W) 83x18.6mm
    Kind of controller ST7066U
    Type of display LCD
    Digit height 5.55mm
    Character width 3.2mm
    Supported character set English, Europe
