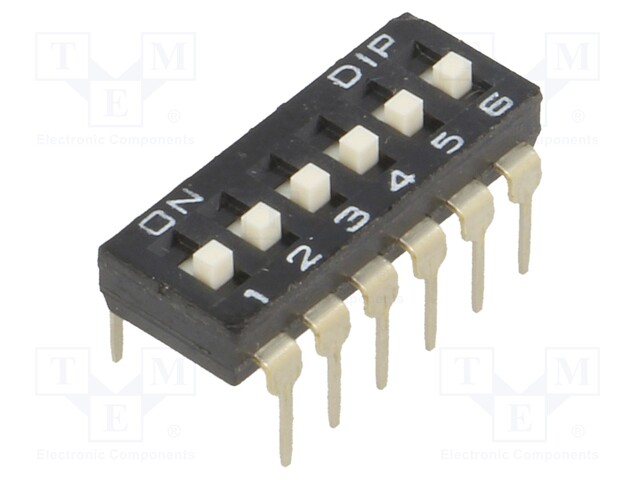

Switch: DIP-SWITCH; Poles number: 6; ON-OFF; 0.1A/24VDC; Pos: 2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: NDI-06H-V
    Manufacturer: DIPTRONICS
    Manufacturer code: NDI-06H-V
    • Mounting
    • Operating temperature
    • Type of switch
    • Switches features
    • Contact plating
    • Number of positions
    • Row pitch
    • Max. contact resistance:
    • Terminal pitch
    • Flammability rating
    • Body dimensions
    • Mechanical durability
    • Overall length
    • Min. insulation resistance
    • Poles number
    • Test voltage
    • DC contacts rating @R
    • Switching method
    • Stable positions number

    1.76 € 1.76 € (wo VAT) 1.76 EUR

    1.76 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: DIP-SWITCH; Poles number: 6; ON-OFF; 0.1A/24VDC; Pos: 2

    Mounting THT
    Operating temperature -25...70°C
    Type of switch DIP-SWITCH
    Switches features raised actuator
    Contact plating gold-plated
    Number of positions 2
    Row pitch 7.62mm
    Max. contact resistance: 50mΩ
    Terminal pitch 2.54mm
    Flammability rating UL94V-0
    Body dimensions 16.18x6.2x3.6mm
    Mechanical durability 2000cycles
    Overall length 16.18mm
    Min. insulation resistance 1GΩ
    Poles number 6
    Test voltage 500V
    DC contacts rating @R 0.1A / 24V DC
    Switching method ON-OFF
    Stable positions number 2
