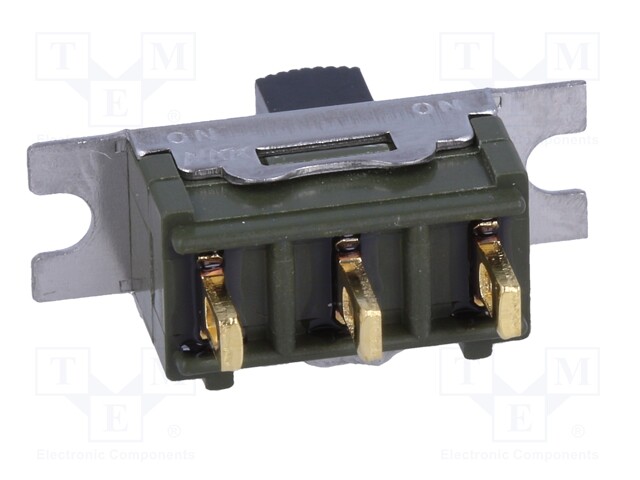

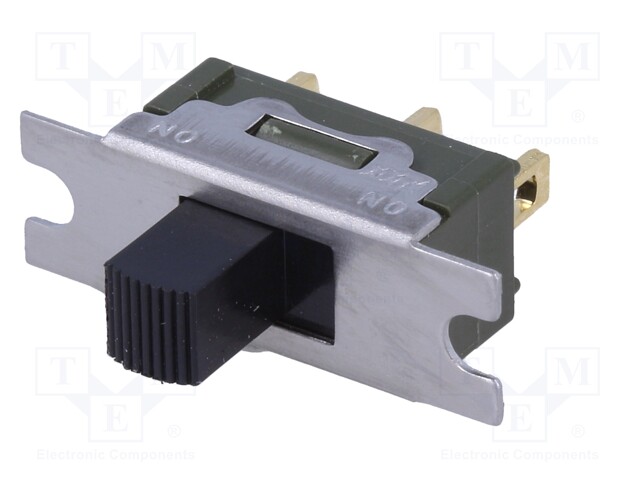

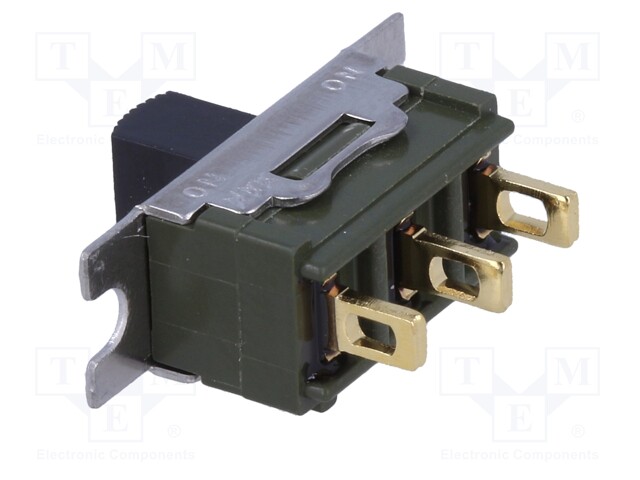

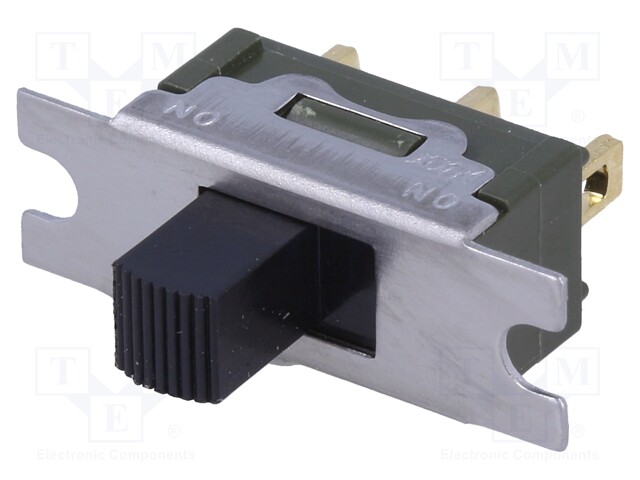

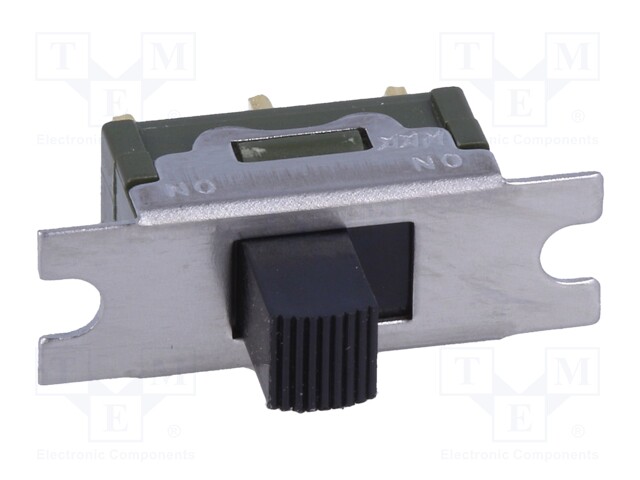

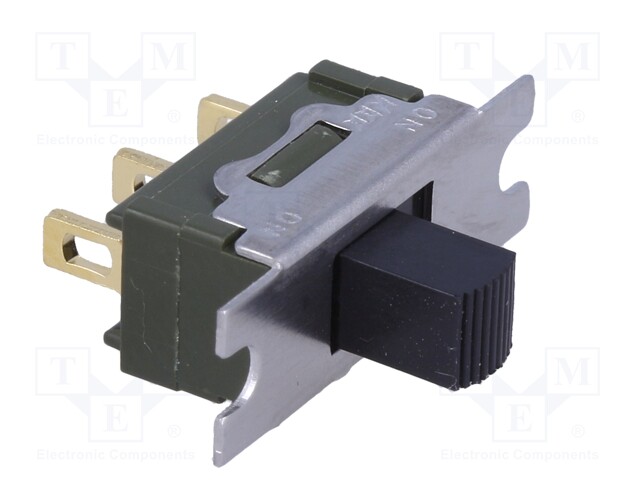

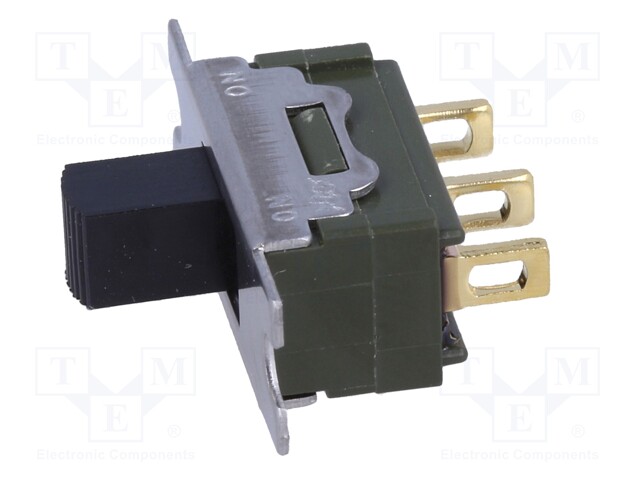

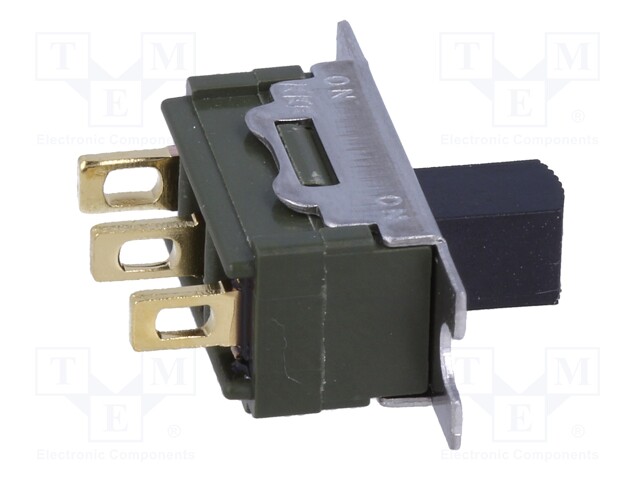

Switch: slide; Pos: 2; SPDT; 0.4A/28VAC; 0.4A/28VDC; ON-ON; -30÷85°C

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: MS12AFG01
    Manufacturer: NKK SWITCHES
    Manufacturer code: MS12AFG01
    • Mounting
    • Operating temperature
    • Type of switch
    • Number of positions
    • Mechanical durability
    • Min. insulation resistance
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Switching method
    • Stable positions number

    4.91 € 4.91 € (wo VAT) 4.91 EUR

    4.91 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: slide; Pos: 2; SPDT; 0.4A/28VAC; 0.4A/28VDC; ON-ON; -30÷85°C

    Mounting soldered
    Operating temperature -30...85°C
    Type of switch slide
    Number of positions 2
    Mechanical durability 100000cycles
    Min. insulation resistance 1GΩ
    Electrical life 25000cycles
    Contacts configuration SPDT
    DC contacts rating @R 0.4A / 28V DC
    Contact resistance 10mΩ
    Switching method ON-ON
    Stable positions number 2
