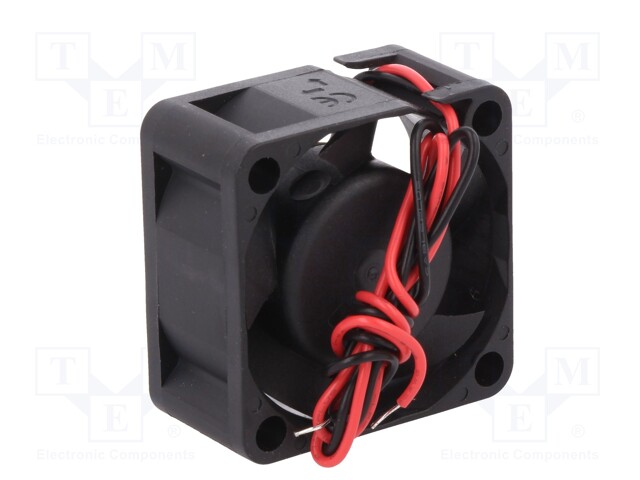

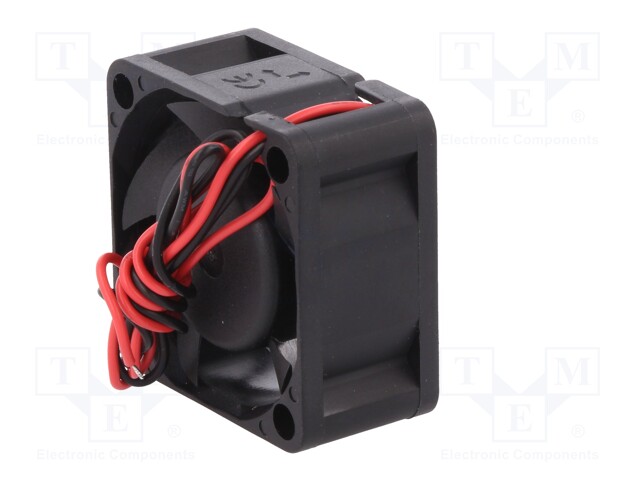

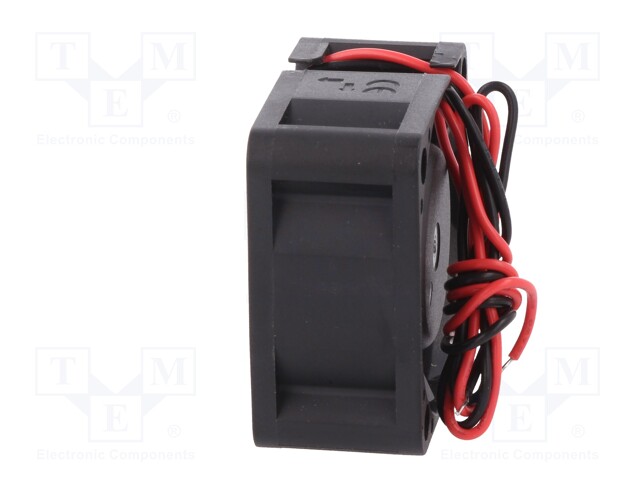

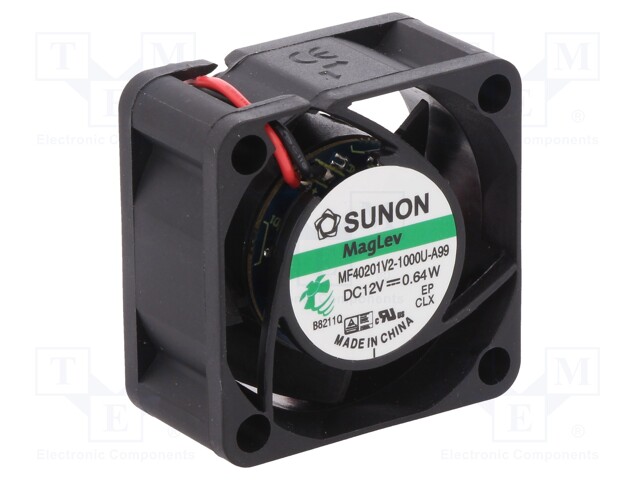

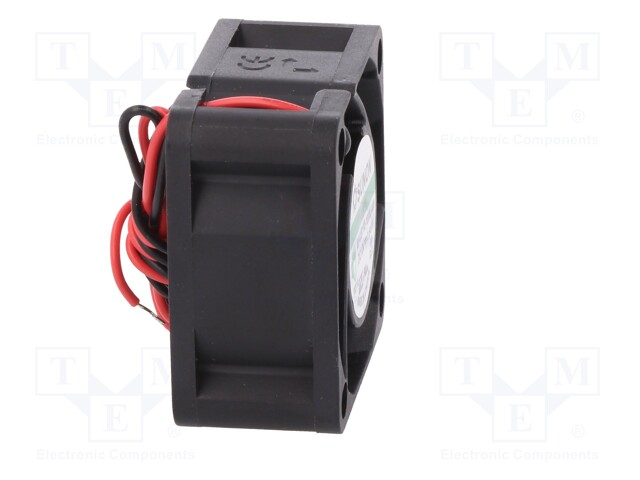

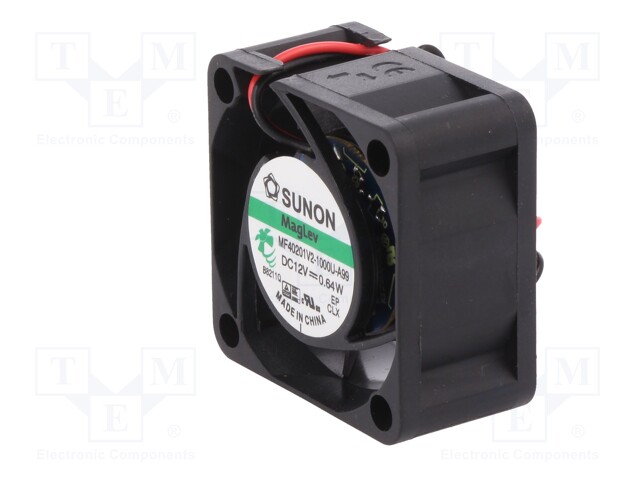

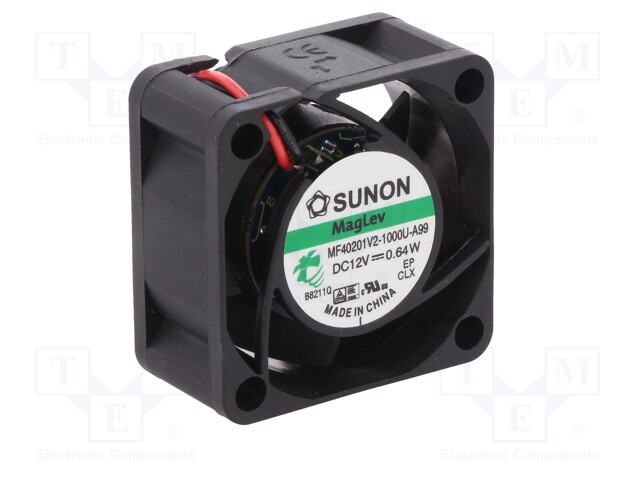

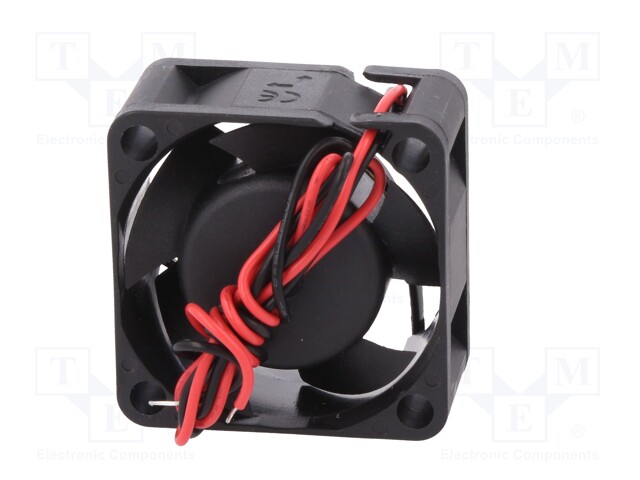

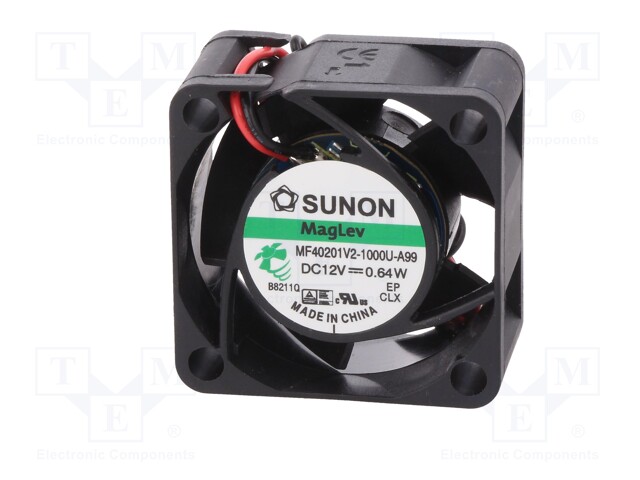

Fan: DC; axial; 12VDC; 40x40x20mm; 13.01m3/h; 21dBA; Vapo; 6000rpm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: MF40201V2-1000U-A99
    Manufacturer: SUNON
    Manufacturer code: MF40201V2-1000U-A99
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Cable length
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Static pressure
    • Noise level

    5.55 € 5.55 € (wo VAT) 5.55 EUR

    5.55 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; axial; 12VDC; 40x40x20mm; 13.01m3/h; 21dBA; Vapo; 6000rpm

    Supply voltage 12V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Leads 2 leads
    Flammability rating UL94V-0
    Cable length 305mm
    Current rating 45mA
    Fan efficiency 13.01m<sup>3</sup>/h
    Power consumption 0.54W
    Additional functions Autorestart
    Rotational rate/speed 6000rpm
    Fan motor brushless DC motor
    Fan dimensions 40x40x20mm
    Kind of Bearing Vapo
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class A
    Type of fan DC
    Static pressure 4.32mm H<sub>2</sub>O
    Noise level 21dBA
