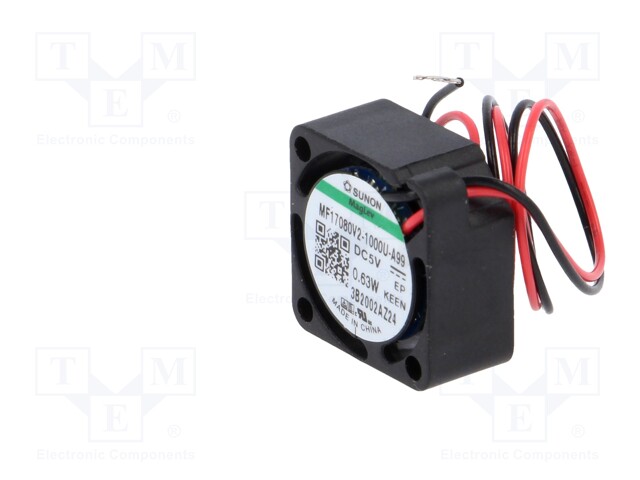

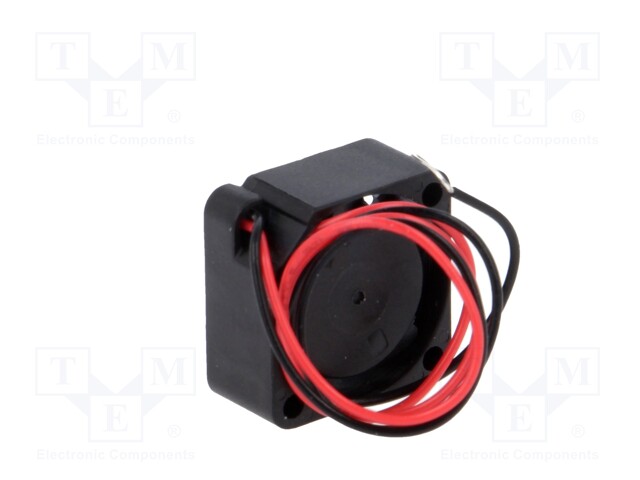

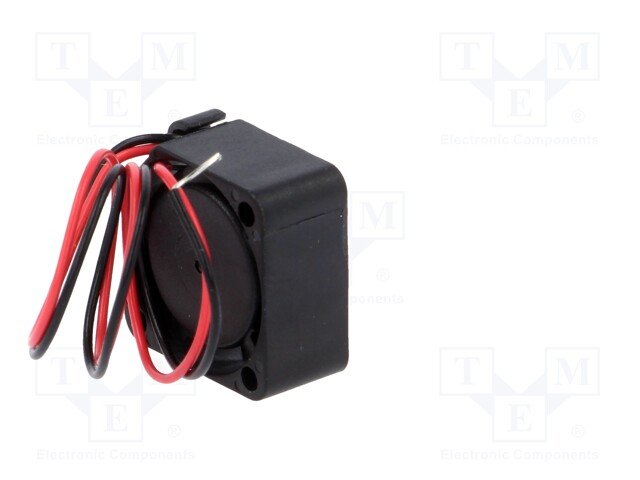

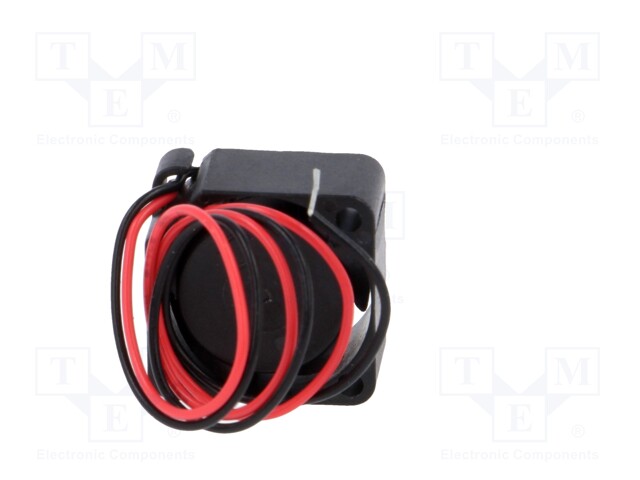

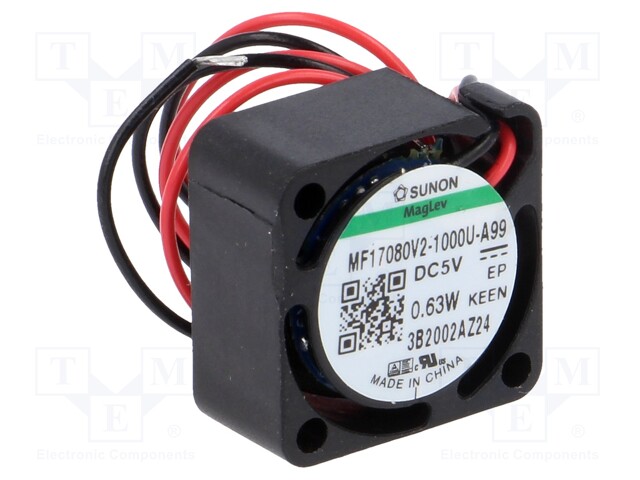

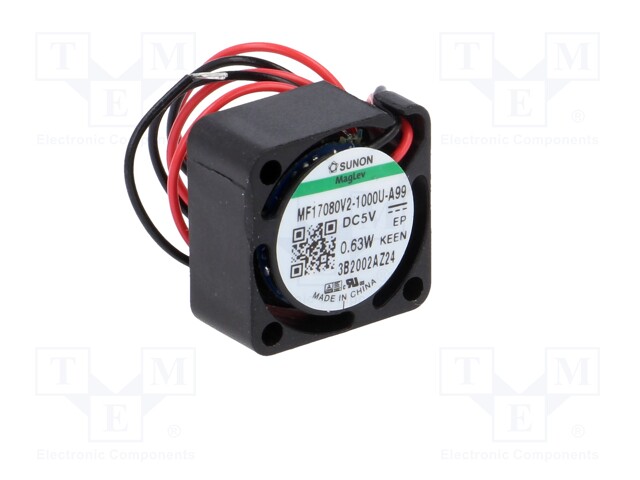

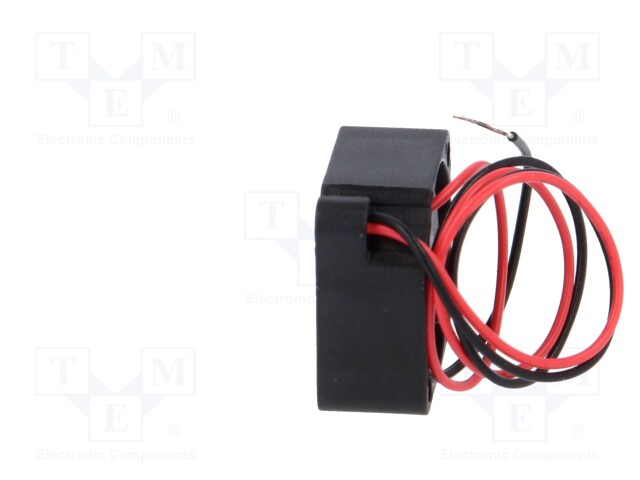

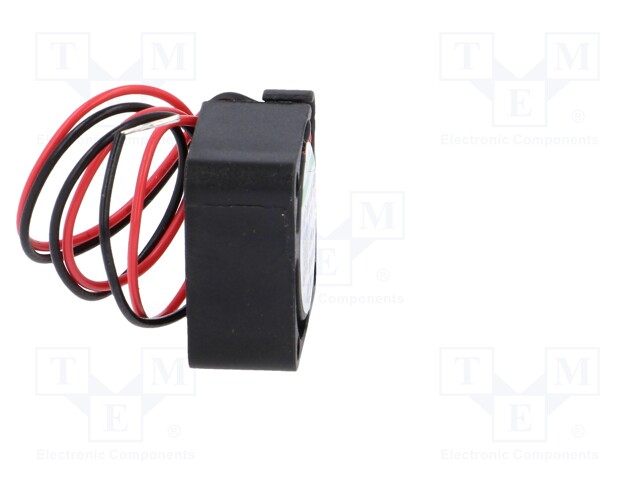

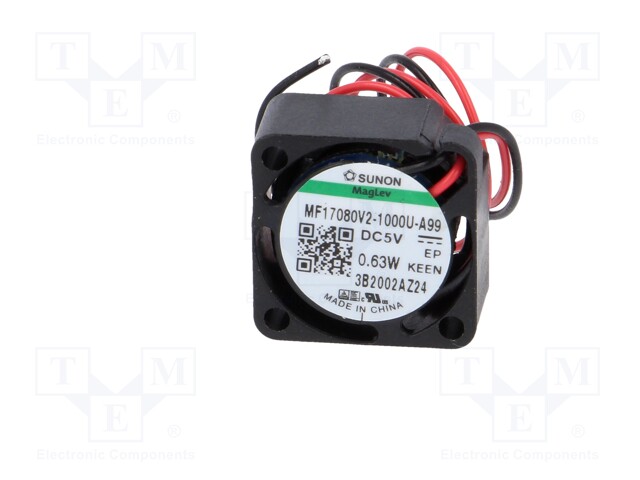

Fan: DC; axial; 5VDC; 17x17x8mm; 1.19m3/h; Vapo; 16500rpm; Len: 0.15m

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: MF17080V2-1000U-A99
    Manufacturer: SUNON
    Manufacturer code: MF17080V2-1000U-A99
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Cable length
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Noise level

    9.98 € 9.98 € (wo VAT) 9.98 EUR

    9.98 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; axial; 5VDC; 17x17x8mm; 1.19m3/h; Vapo; 16500rpm; Len: 0.15m

    Supply voltage 5V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Leads 2 leads
    Flammability rating UL94V-0
    Cable length 150mm
    Current rating 66mA
    Fan efficiency 1.19m<sup>3</sup>/h
    Power consumption 330mW
    Additional functions Autorestart, protection against reverse connection of power supply
    Rotational rate/speed 16500rpm
    Fan motor brushless DC motor
    Fan dimensions 17x17x8mm
    Kind of Bearing Vapo
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class A
    Type of fan DC
    Noise level 34.2dBA
