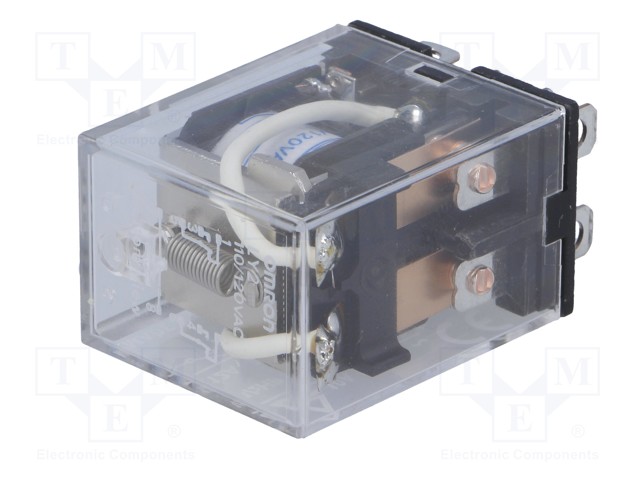

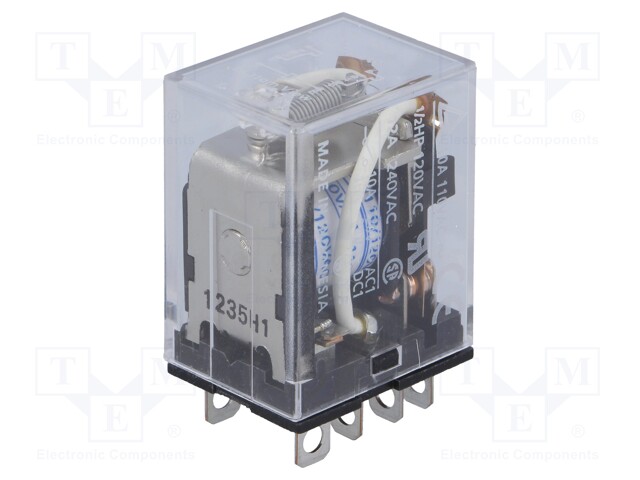

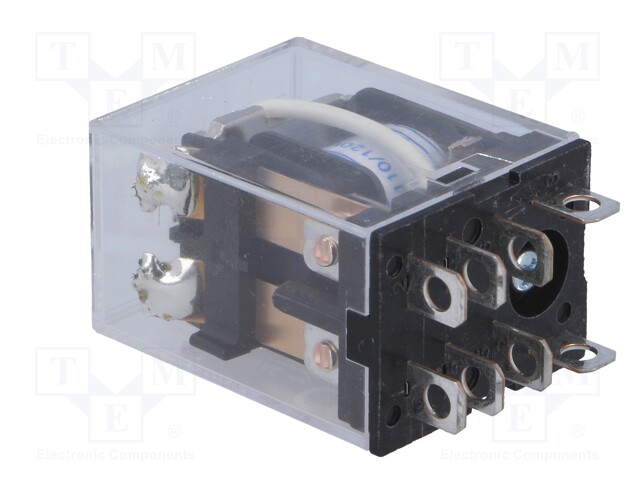

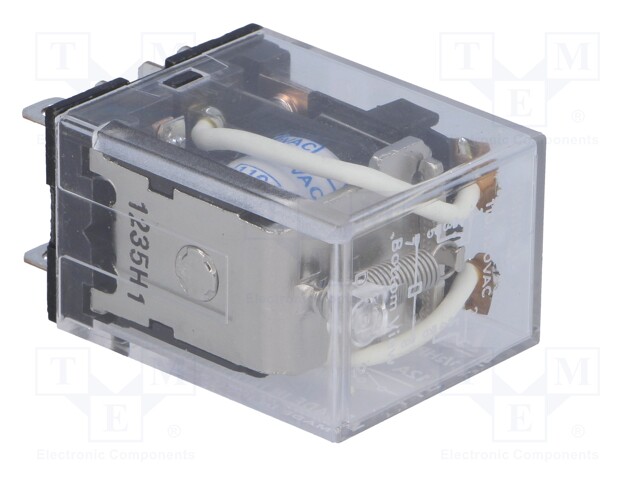

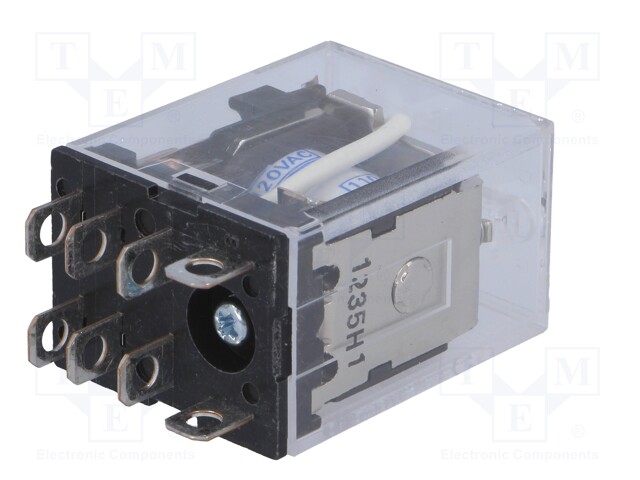

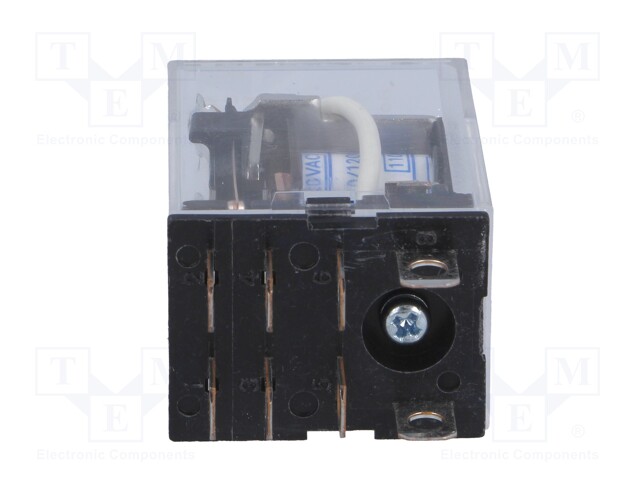

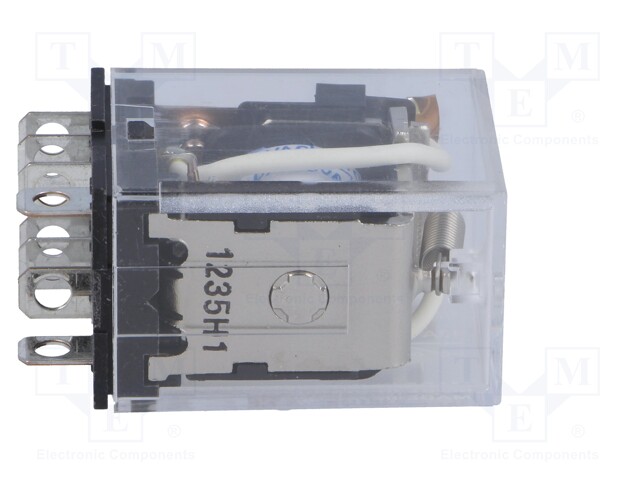

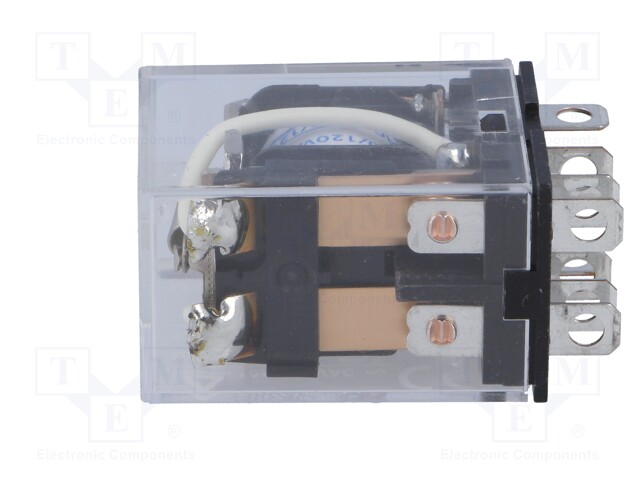

Relay: electromagnetic; DPDT; Ucoil: 120VAC; 10A/110VAC; 10A/24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: LY2 110/120VAC
    Manufacturer: OMRON
    Manufacturer code: LY2 110/120VAC
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Switching capacity
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time

    12.39 € 12.39 € (wo VAT) 12.39 EUR

    12.39 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 120VAC; 10A/110VAC; 10A/24VDC

    Mounting socket
    Operating temperature -25...40°C
    Leads 4,8x0,5mm connectors
    Body dimensions 28x21.5x36mm
    Mechanical durability 50000000cycles
    Switched voltage max. 125V DC, max. 250V AC
    Switching capacity 240W, 1100VA
    Coil resistance 4.43kΩ
    Contacts configuration DPDT
    DC contacts rating @R 10A / 24V DC
    Contact resistance 50mΩ
    AC contacts rating @R 10A / 110V AC
    Contact current max. 10A
    Relay variant industrial
    Type of relay electromagnetic
    Coil power consumption 1.2VA
    Relay series LY2
    Operate time 25ms
    Release time 25ms
