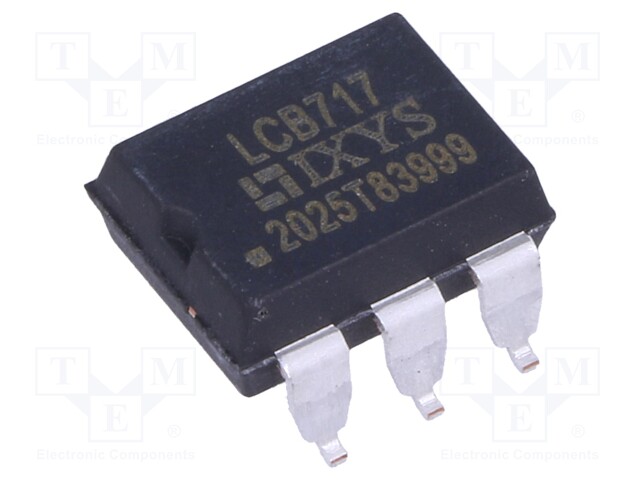

Relay: solid state; SPST-NC; Icntrl max: 50mA; 1.5A; max.30VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: LCB717S
    Manufacturer: IXYS
    Manufacturer code: LCB717S
    • Mounting
    • Case
    • Max. operating current
    • Operating temperature
    • Turn-on time
    • Series
    • On-state resistance
    • Body dimensions
    • Insulation voltage
    • Switched voltage
    • Switched voltage
    • Kind of output
    • Turn-off time
    • Contacts configuration
    • Relay variant
    • Relay variant
    • Type of relay
    • Control current max.

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: solid state; SPST-NC; Icntrl max: 50mA; 1.5A; max.30VAC

    Mounting SMT
    Case DIP6
    Max. operating current 1.5A
    Operating temperature -40...85°C
    Turn-on time 2ms
    Series OptoMOS
    On-state resistance 300mΩ
    Body dimensions 8.38x6.35x3.3mm
    Insulation voltage 3.75kV
    Switched voltage max. 30V AC, max. 30V DC
    Kind of output MOSFET
    Turn-off time 5ms
    Contacts configuration SPST-NC
    Relay variant 1-phase, current source
    Type of relay solid state
    Control current max. 50mA
