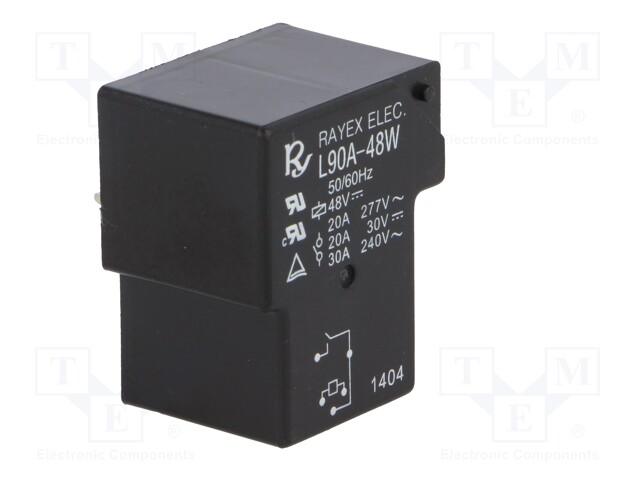

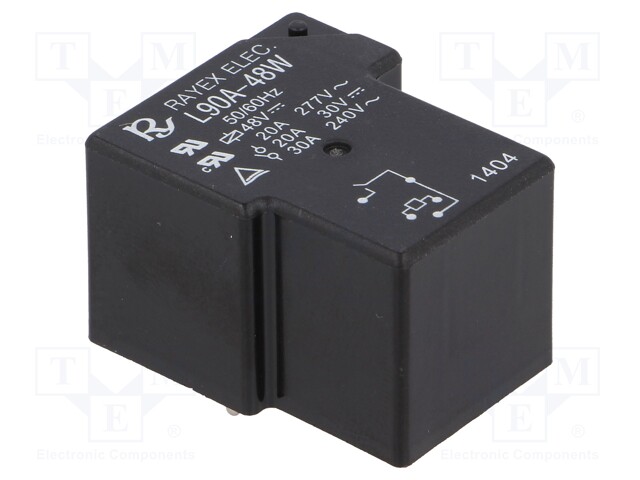

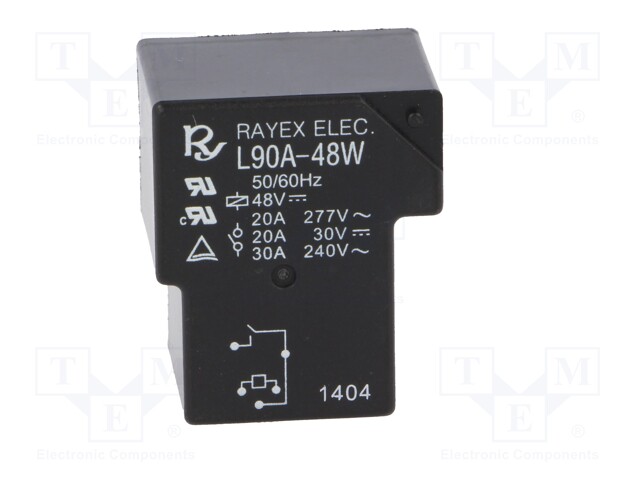

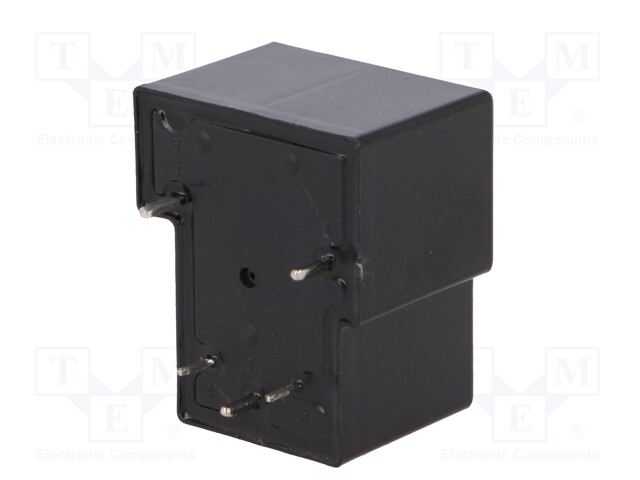

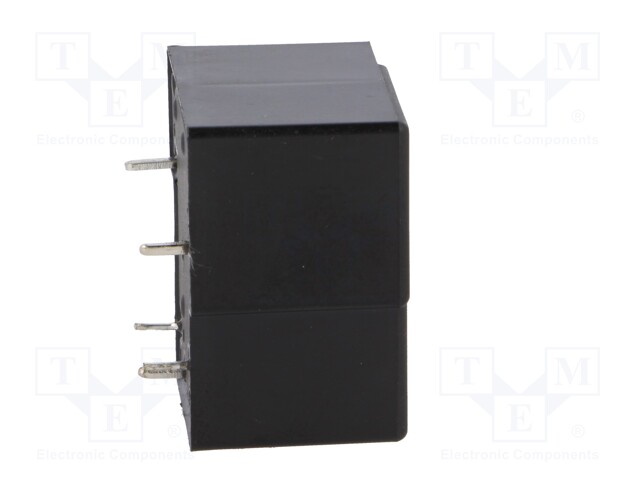

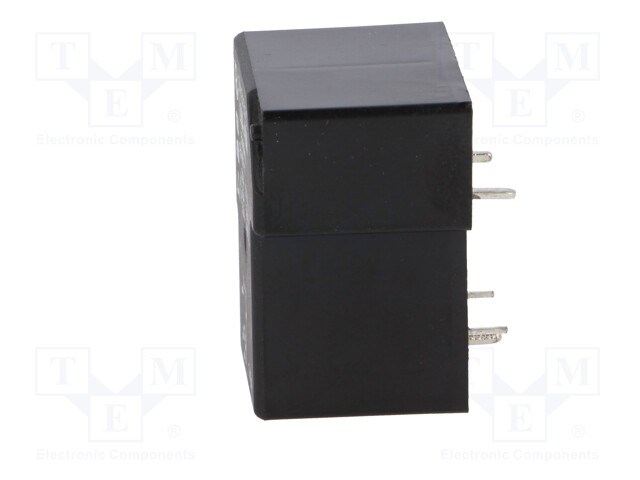

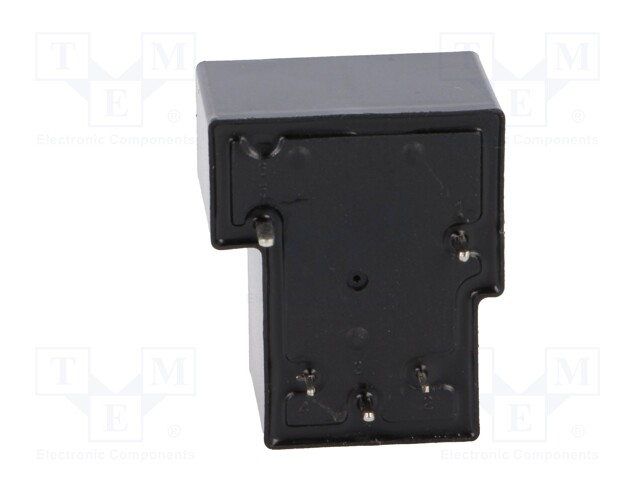

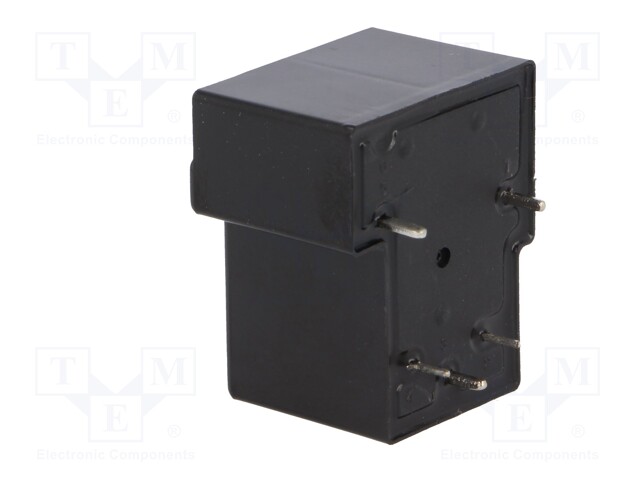

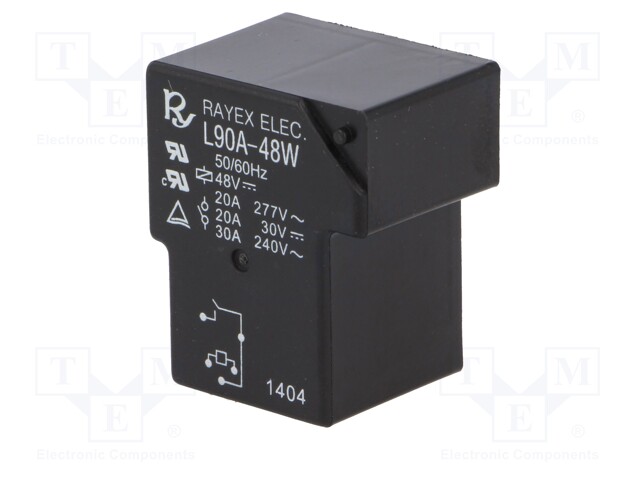

Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; 30A; Series: L90

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: L90A-48W
    Manufacturer: RAYEX ELECTRONICS
    Manufacturer code: L90A-48W
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time

    2.78 € 2.78 € (wo VAT) 2.7800000000000002 EUR

    2.78 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 48VDC; 30A; Series: L90

    Mounting PCB
    Operating temperature -55...85°C
    Leads for PCB
    Contact material AgCdO
    Mechanical durability 10000000cycles
    Switched voltage max. 30V DC, max. 240V AC
    Electrical life 100000cycles
    Coil resistance 2.56kΩ
    Rated coil voltage 48V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 20A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 30A / 240V AC
    Contact current max. 30A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 0.9W
    Relay series L90
    Operate time 15ms
    Release time 15ms
