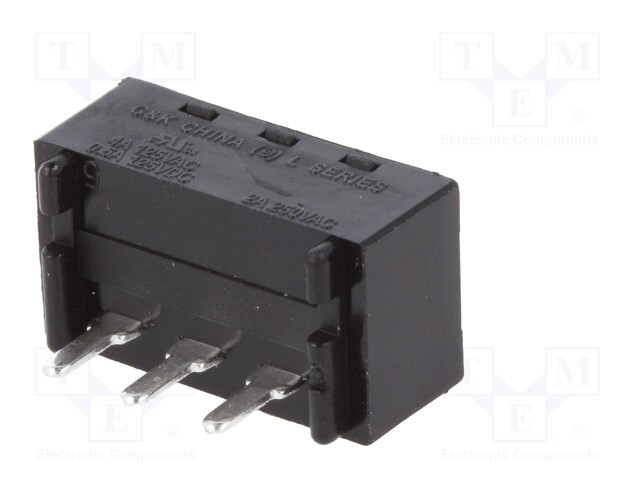

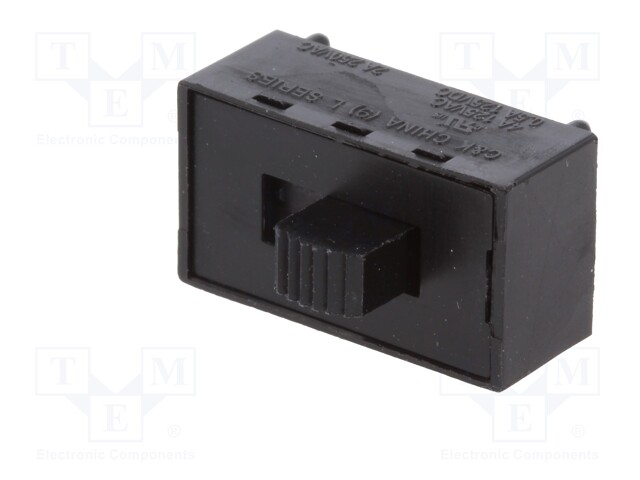

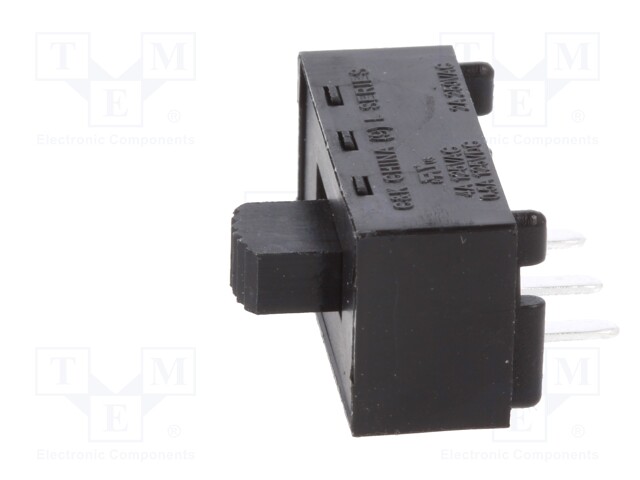

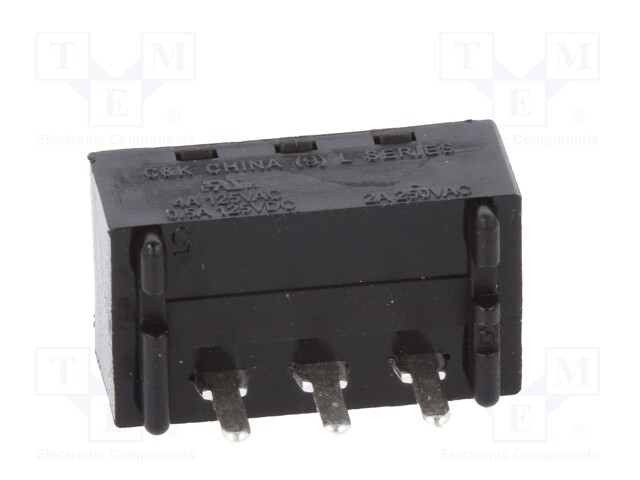

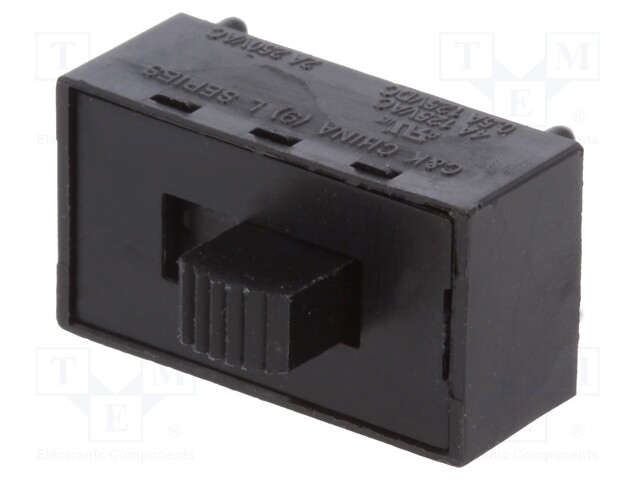

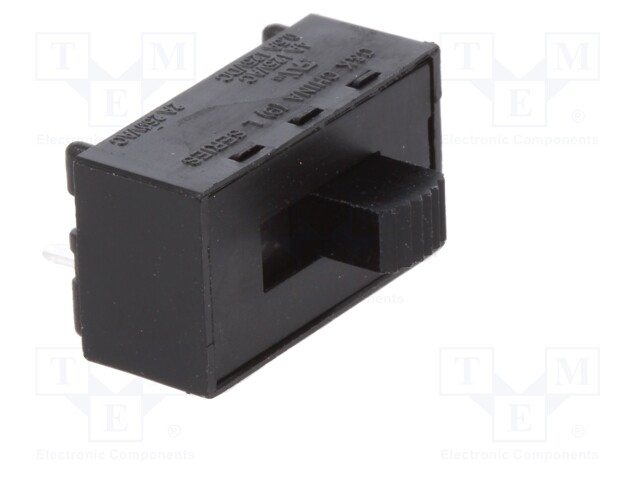

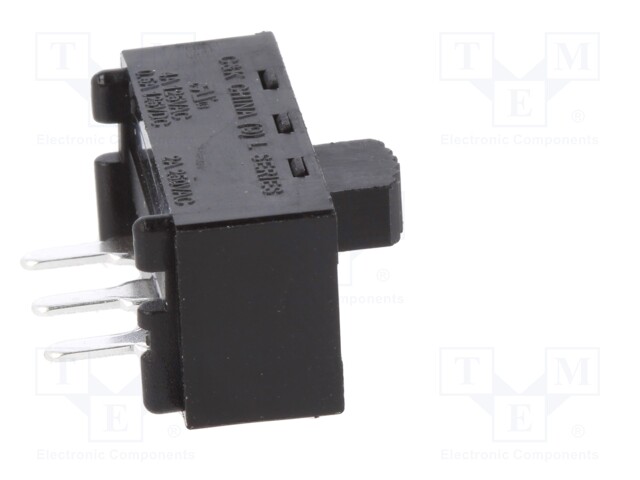

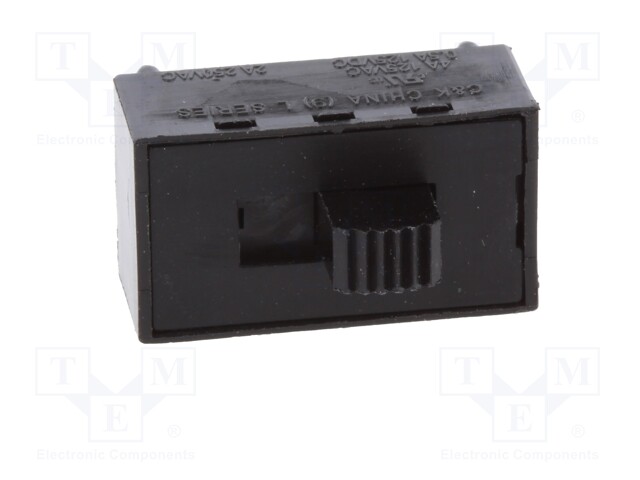

Switch: slide; Pos: 2; SPDT; 2A/250VAC; 4A/28VDC; ON-ON; -30÷65°C

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: L102011MS02Q
    Manufacturer: C&K
    Manufacturer code: L102011MS02Q
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Terminal pitch
    • Body dimensions
    • Min. insulation resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number

    3.47 € 3.47 € (wo VAT) 3.47 EUR

    3.47 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: slide; Pos: 2; SPDT; 2A/250VAC; 4A/28VDC; ON-ON; -30÷65°C

    Mounting THT
    Operating temperature -30...65°C
    Type of switch slide
    Contact plating silver plated
    Number of positions 2
    Leads for PCB
    Contact material copper
    Max. contact resistance: 10mΩ
    Terminal pitch 4.6mm
    Body dimensions 19.1x10.8x5.6mm
    Min. insulation resistance 1GΩ
    Contacts configuration SPDT
    DC contacts rating @R 4A / 28V DC
    AC contacts rating @R 2A / 250V AC
    Switching method ON-ON
    Stable positions number 2
