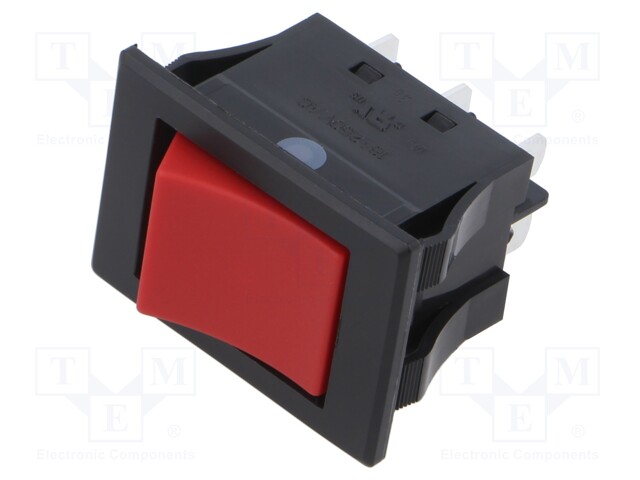

ROCKER; DPDT; Pos: 2; ON-ON; 16A/250VAC; 5A/72VDC; red; IP67; none

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: JWLW22RCA
    Manufacturer: NKK SWITCHES
    Manufacturer code: JWLW22RCA
    • Mounting
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Leads
    • Contact material
    • Max. contact resistance:
    • Body material
    • Body material
    • Body colour
    • Mechanical durability
    • Number of terminals
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Poles number
    • Conform to the norm
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Button shape
    • Key button colour

    16.88 € 16.88 € (wo VAT) 16.88 EUR

    16.88 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for ROCKER; DPDT; Pos: 2; ON-ON; 16A/250VAC; 5A/72VDC; red; IP67; none

    Mounting on panel, SNAP-IN
    Operating temperature -25...85°C
    IP rating IP67
    Type of switch ROCKER
    Contact plating silver plated
    Number of positions 2
    Leads 4,75x0,8mm connectors, for soldering
    Contact material silver alloy
    Max. contact resistance: 20mΩ
    Body material melamine, polyamide
    Body colour black
    Mechanical durability 25000cycles
    Number of terminals 6
    Illumination none
    Min. insulation resistance 1GΩ
    Electrical life 25000cycles
    Poles number 2
    Conform to the norm UL
    Contacts configuration DPDT
    AC contacts rating @R 16A / 250V AC
    Switching method ON-ON
    Stable positions number 2
    Button shape rectangular
    Key button colour red
