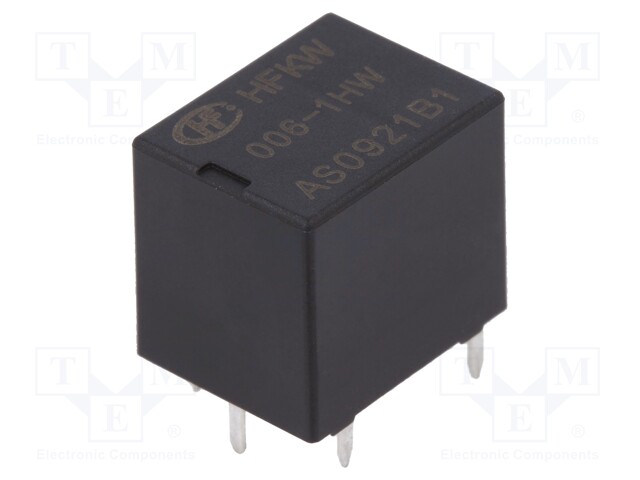

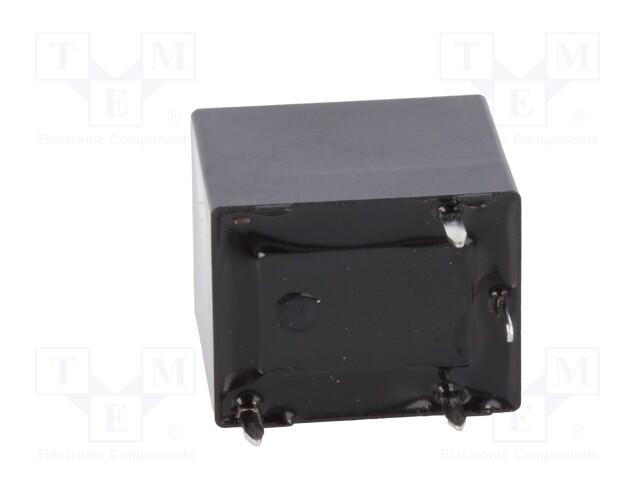

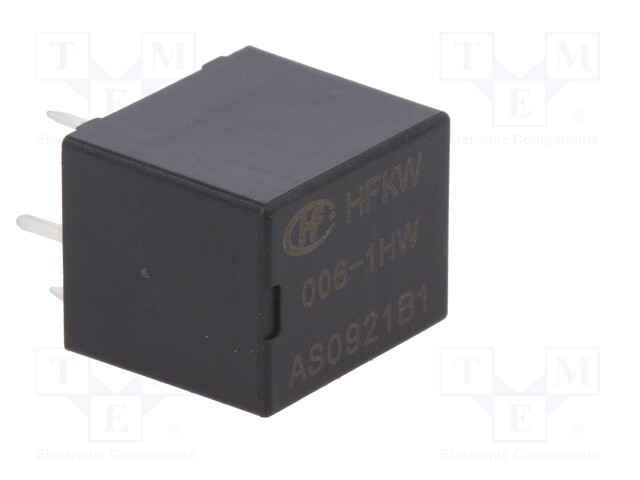

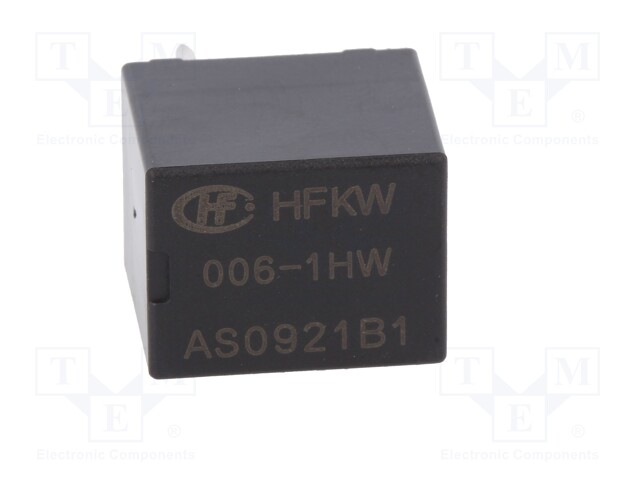

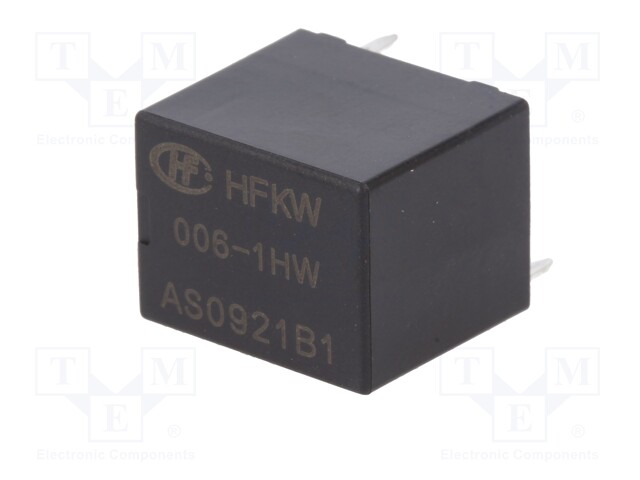

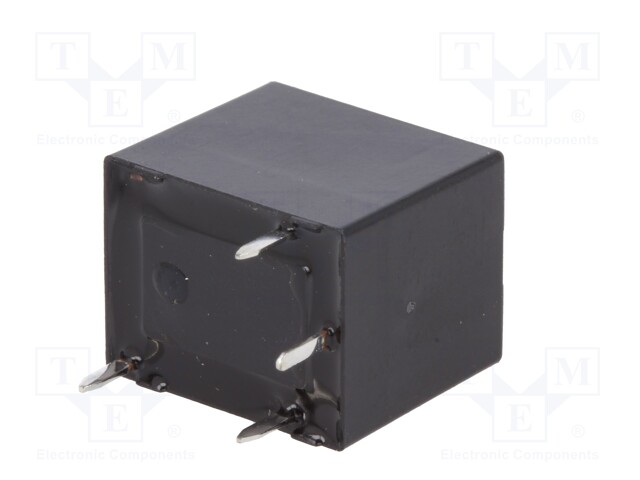

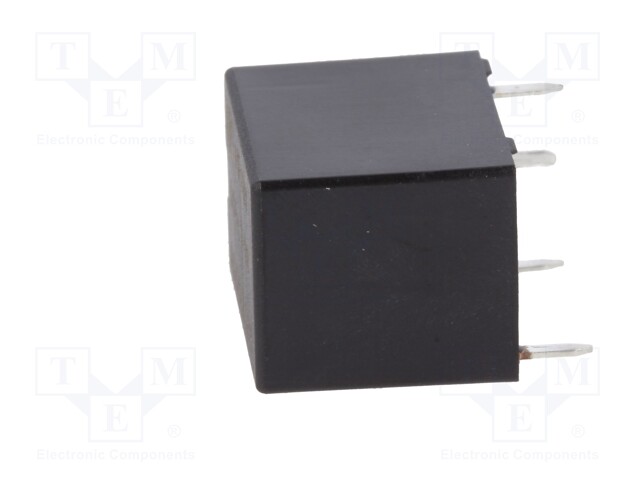

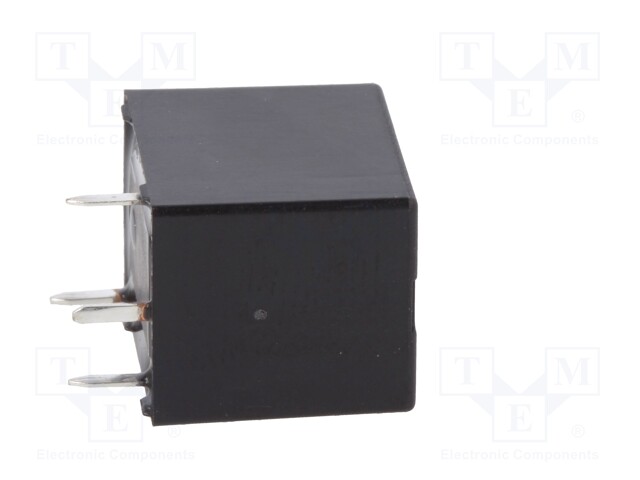

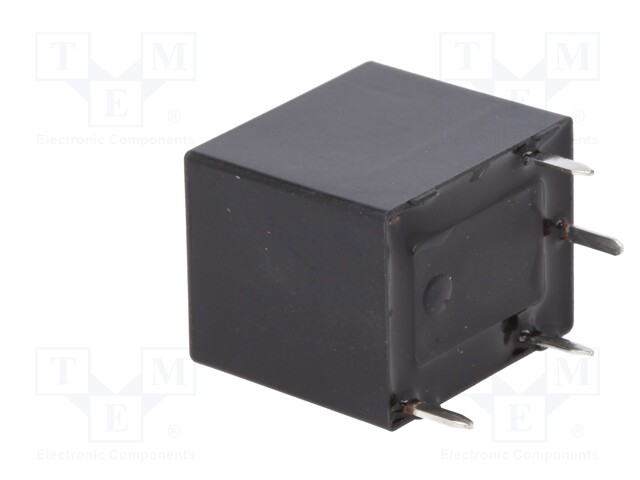

Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; 35A; Ucoil max: 8VDC

    Multiples: 1500.0
    Minimum quantity: 1500.0
    Product code: HFKW/006-1HW
    Manufacturer: HONGFA RELAY
    Manufacturer code: HFKW/006-1HW
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; 35A; Ucoil max: 8VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Body dimensions 15.7x12.5x14mm
    Switched voltage max. 16V DC
    Coil resistance 60Ω
    Rated coil voltage 6V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 20A / 12V DC
    Contact current max. 35A
    Relay variant automotive, subminiature
    Coil voltage max. 8V DC
    Type of relay electromagnetic
    Coil voltage min. 3.6V DC
    Coil power consumption 0.6W
