Relay: electromagnetic; DPST-NO; Ucoil: 48VDC; 10A/250VAC; 10A
Multiples:
1.0
Minimum quantity:
1.0
Product code:
HF140FF/048-2HSW3
Manufacturer: HONGFA RELAY
Manufacturer code: HF140FF/048-2HSW3
Product downloads
Specification for Relay: electromagnetic; DPST-NO; Ucoil: 48VDC; 10A/250VAC; 10A
Mounting | PCB |
Operating temperature | -40...85°C |
Contact material | AgNi |
Terminal pitch | 5mm |

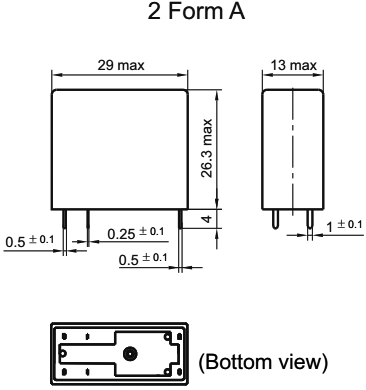

Body dimensions | 29x13x26.3mm |
Switched voltage | max. 30V DC, max. 250V AC |
Coil resistance | 2.88kΩ |
Rated coil voltage | 48V DC |

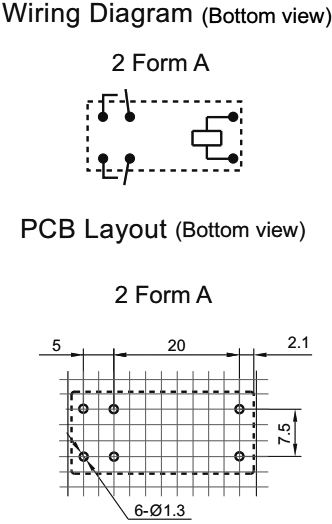

Contacts configuration | DPST-NO |
DC contacts rating @R | 8A / 30V DC |
Contact resistance | 50mΩ |
AC contacts rating @R | 10A / 250V AC |
Contact current max. | 10A |
Relay variant | miniature |
Coil voltage max. | 52.8V DC |
Type of relay | electromagnetic |
Coil voltage min. | 36V DC |
Operate time | 15ms |
Release time | 5ms |
