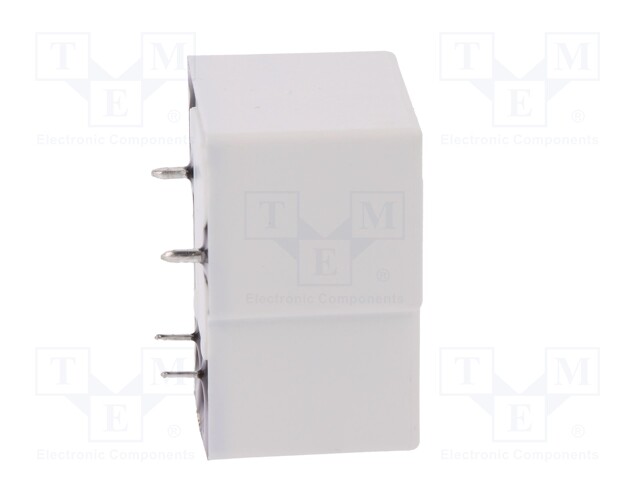

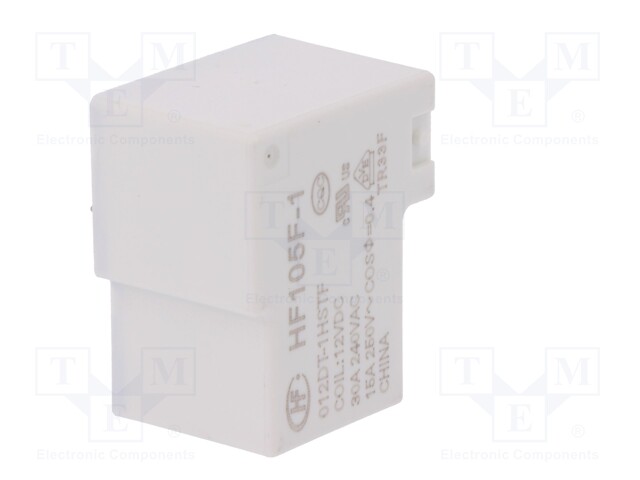

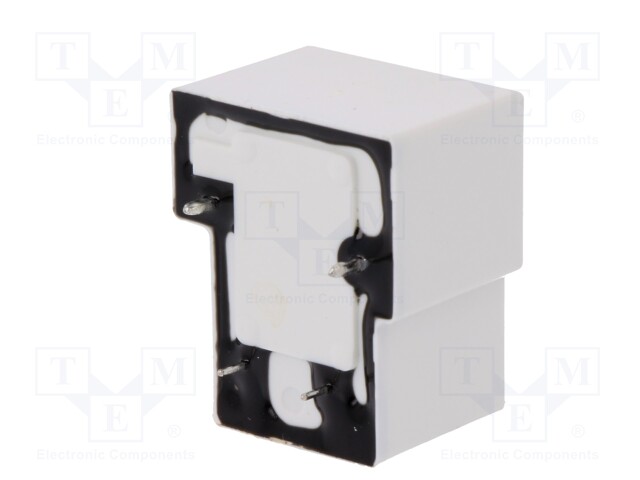

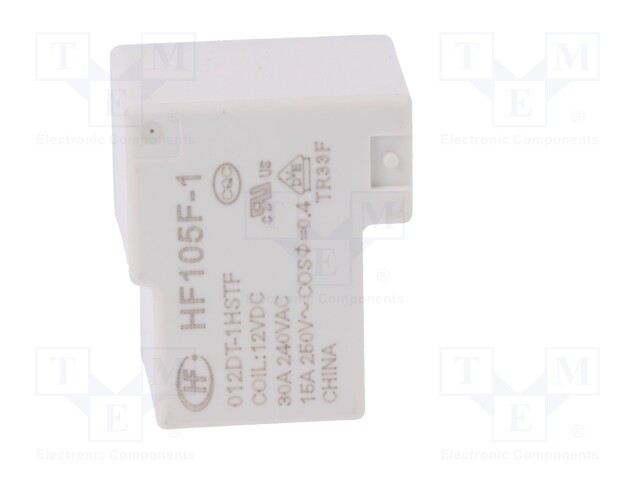

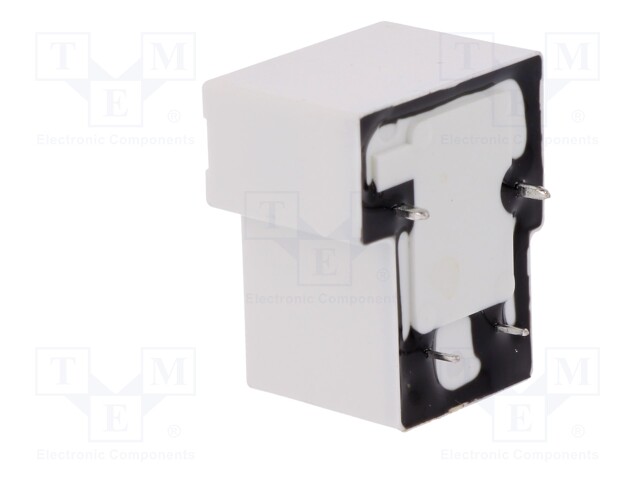

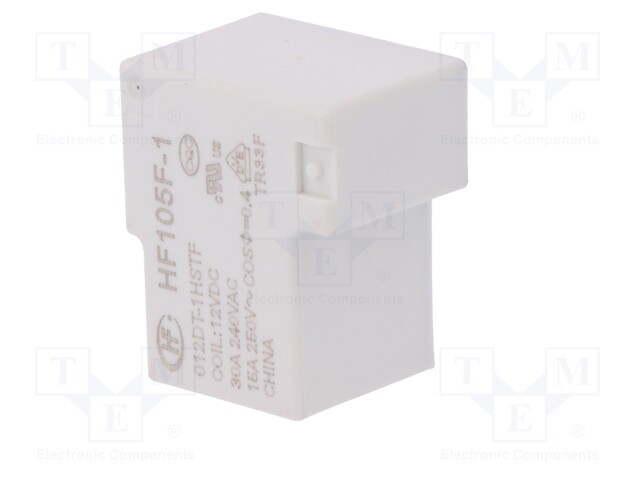

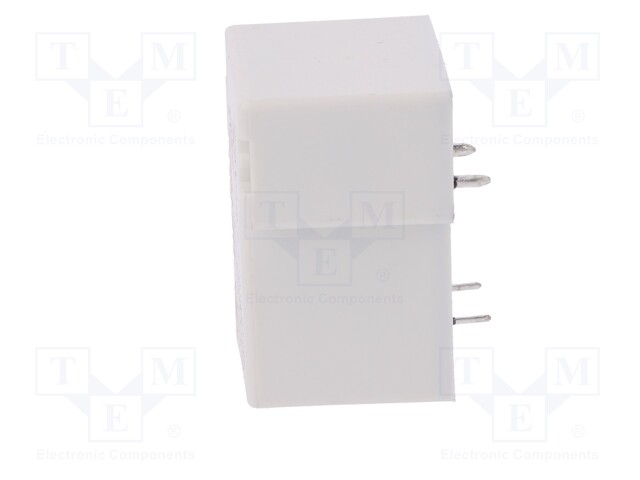

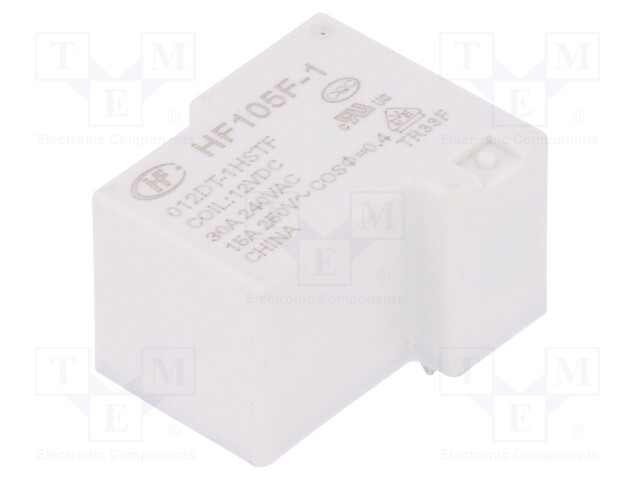

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; Ucoil min: 9VDC
Multiples:
1.0
Minimum quantity:
1.0
Product code:
HF105F-1/012DT-1HSTF
Manufacturer: HONGFA RELAY
Manufacturer code: HF105F-1/012DT-1HSTF
Product downloads
Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 40A; Ucoil min: 9VDC
Mounting | PCB |
Operating temperature | -55...85°C |
Contact material | AgSnO<sub>2</sub> |

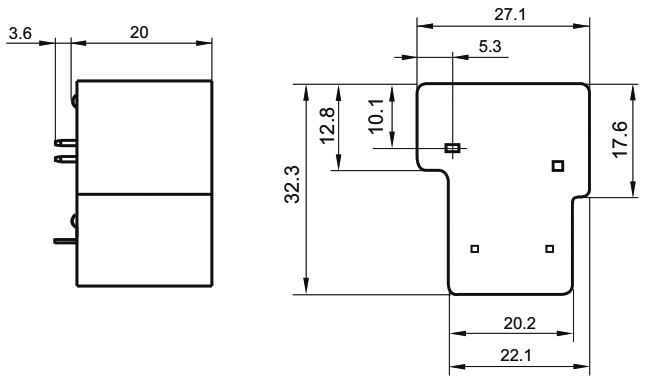

Body dimensions | 32.3x27.1x20mm |
Mechanical durability | 10000000cycles |
Switched voltage | max. 28V DC, max. 277V AC |
Switching capacity | 560W, 7.2kVA |
Coil resistance | 155Ω |
Rated coil voltage | 12V DC |

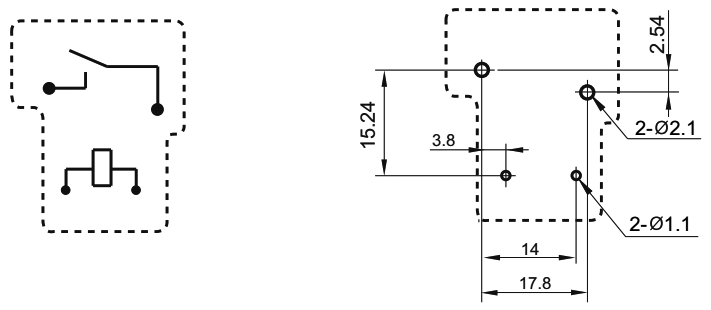

Contacts configuration | SPST-NO |
DC contacts rating @R | 20A / 28V DC |
Contact resistance | 50mΩ |
AC contacts rating @R | 30A / 240V AC |
Contact current max. | 40A |
Relay variant | power |
Type of relay | electromagnetic |
Coil voltage min. | 9V DC |
Coil power consumption | 0.9W |
Operate time | 15ms |
Release time | 10ms |
