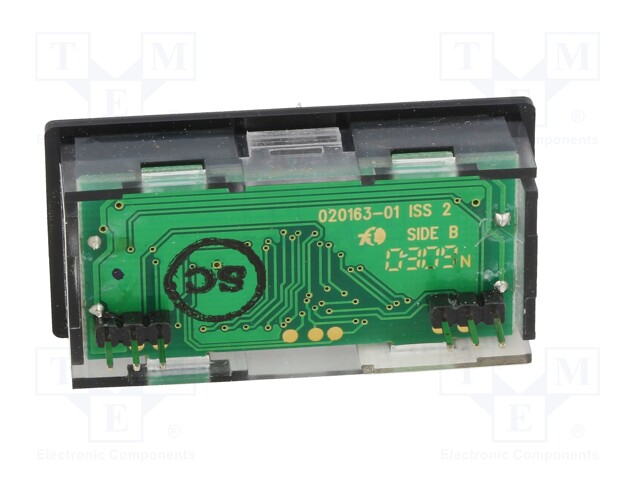

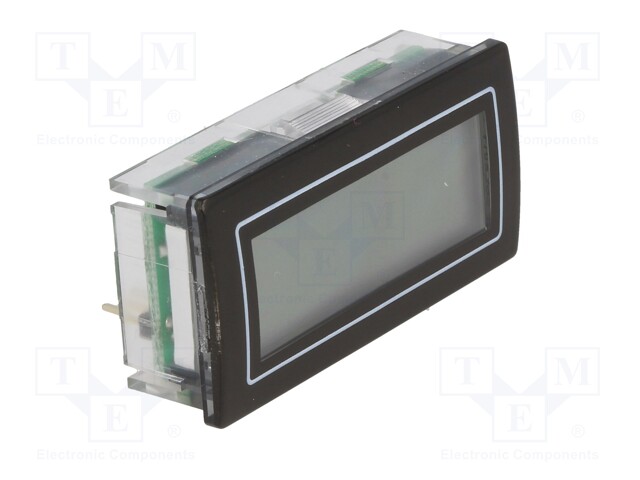

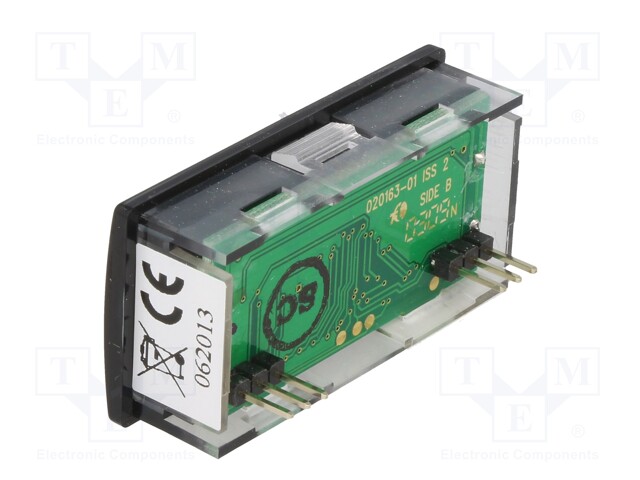

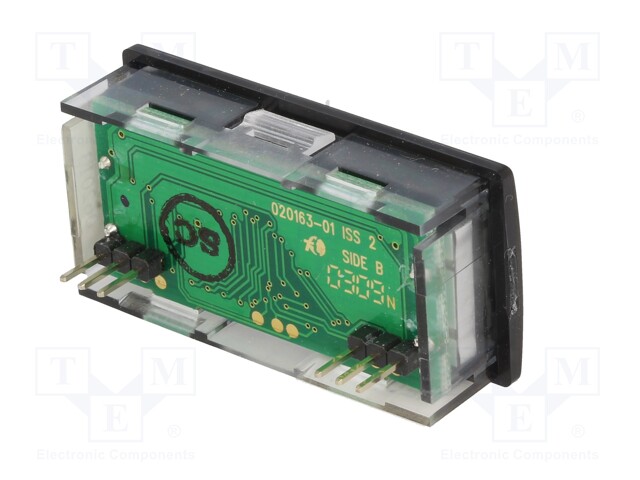

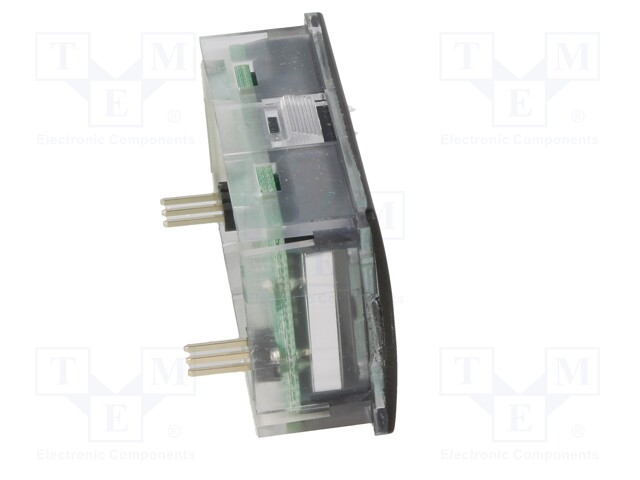

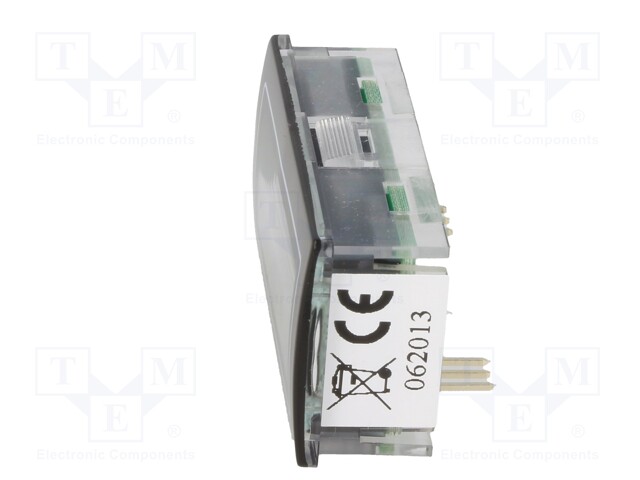

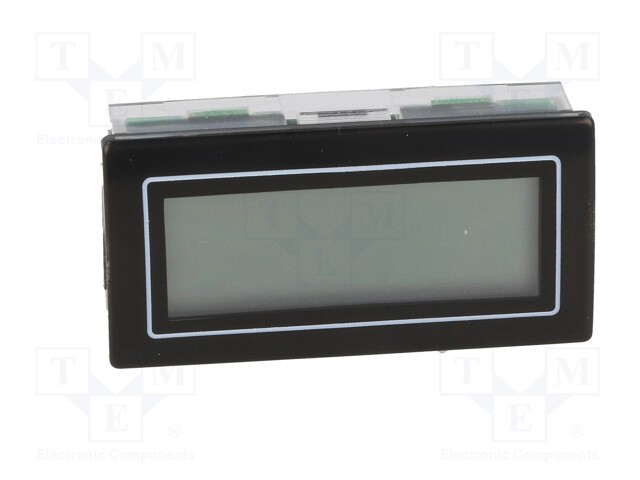

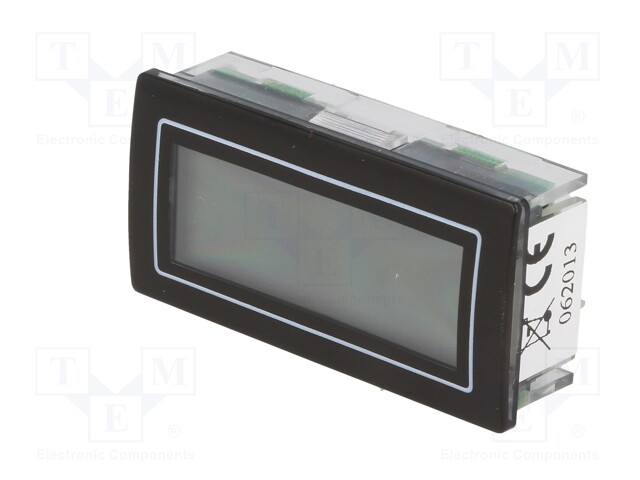

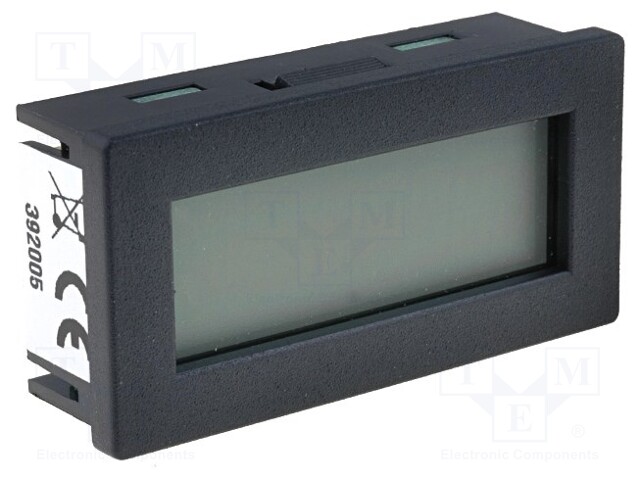

Counter: electronical; LCD,with a backlit; pulses; 99999999; IP20

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HED261-T
    Manufacturer: TRUMETER
    Manufacturer code: HED261-T
    • Mounting
    • Operating temperature
    • IP rating
    • Mounting hole diameter
    • Body dimensions
    • Kind of display used
    • Power supply
    • Power supply
    • Kind of input 1
    • Kind of input 1
    • Electrical connection
    • Counting range
    • Resetting method
    • Kind of input 2
    • Input 1 properties
    • Type of counted signal
    • Type of counter
    • Display height 1
    • Max IN1 counting frequency
    • IN2 max counting frequency
    • Input 2 properties
    • Erasing features

    42.52 € 42.52 € (wo VAT) 42.52 EUR

    42.52 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Counter: electronical; LCD,with a backlit; pulses; 99999999; IP20

    Mounting PCB
    Operating temperature 0...50°C
    IP rating IP20
    Mounting hole diameter 45.3x22.2mm

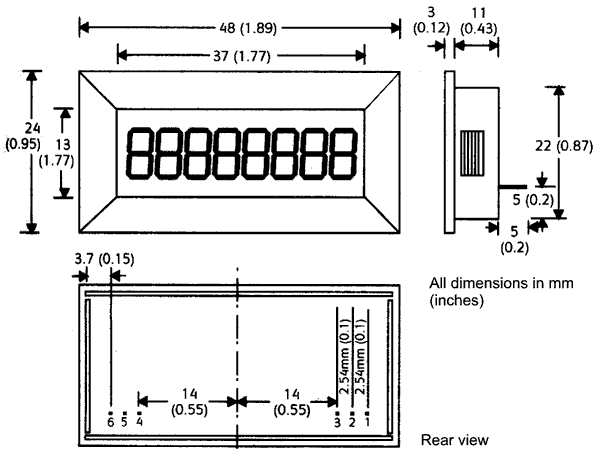

    Body dimensions 48x24x14mm
    Kind of display used LCD
    Power supply battery 2.7-3.3V, external
    Kind of input 1 contact, OC
    Electrical connection pin headers with 2,54mm pitch
    Counting range 99999999
    Resetting method electrical
    Kind of input 2 voltage

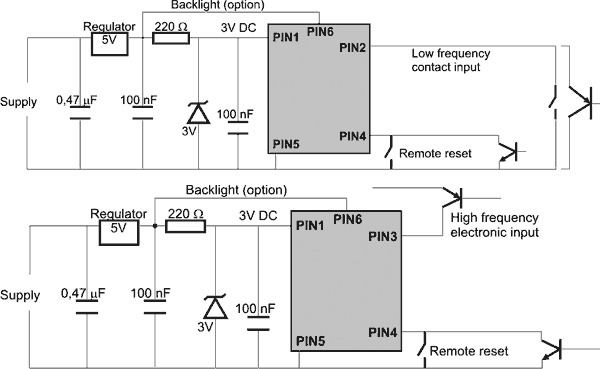

    Input 1 properties PIN2, negative edge activation, threshold 0.7V, max 18V, minimal pulse length 25ms
    Type of counted signal pulses
    Type of counter electronical
    Display height 1 8mm
    Max IN1 counting frequency 30Hz
    IN2 max counting frequency 10kHz
    Input 2 properties PIN3 - negative edge activation, threshold 0,7V, max 18V, pulse length 50µs ( TTL/CMOS compatible)
    Erasing features PIN4 - remote contact / OC, negative edge activation, threshold 0.7 V, max 18 V, minimal pulse length 15ms
