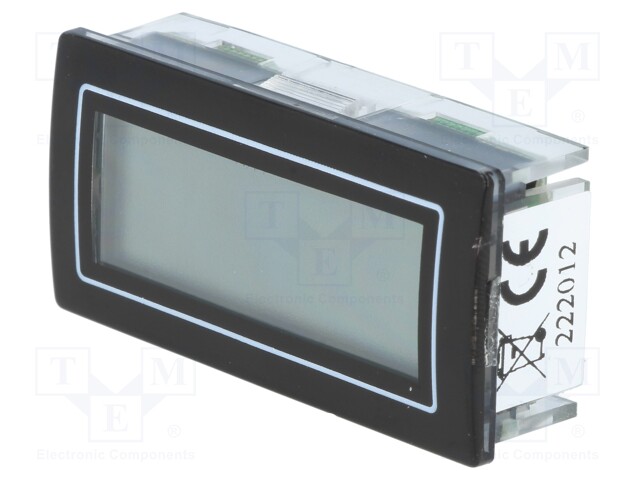

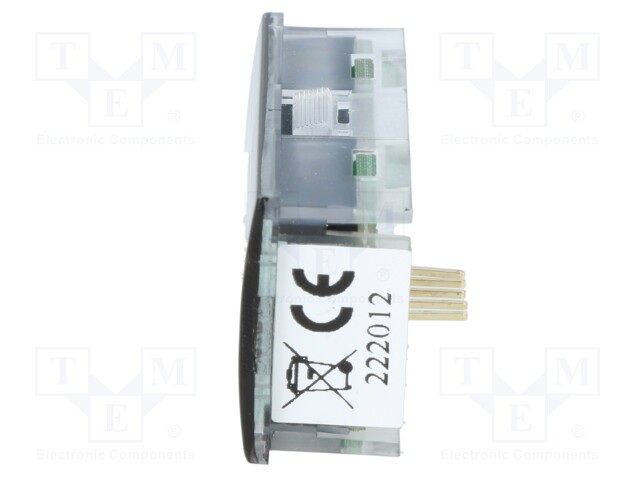

Counter: electronical; LCD,with a backlit,high contrast; pulses

Multiples: 1.0
Minimum quantity: 1.0
Product code: HED251-T
Manufacturer: TRUMETER
Manufacturer code: HED251-T
  • Mounting
  • Supply voltage
  • Operating temperature
  • IP rating
  • Mounting hole diameter
  • Body dimensions
  • Kind of display used
  • Power supply
  • Kind of input 1
  • Kind of input 1
  • Electrical connection
  • Counting range
  • Resetting method
  • Input 1 properties
  • Type of counted signal
  • Type of counter
  • Display height 1
  • Max IN1 counting frequency
  • Erasing features

35.32 € 35.32 € (wo VAT) 35.32 EUR

35.32 €

This combination does not exist.

Add to Cart

Product downloads

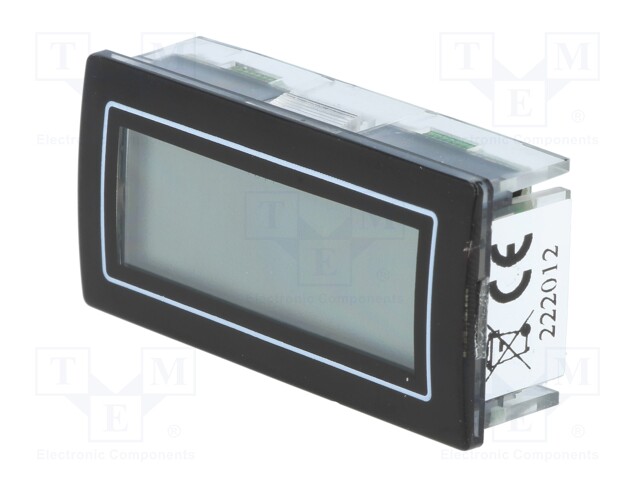

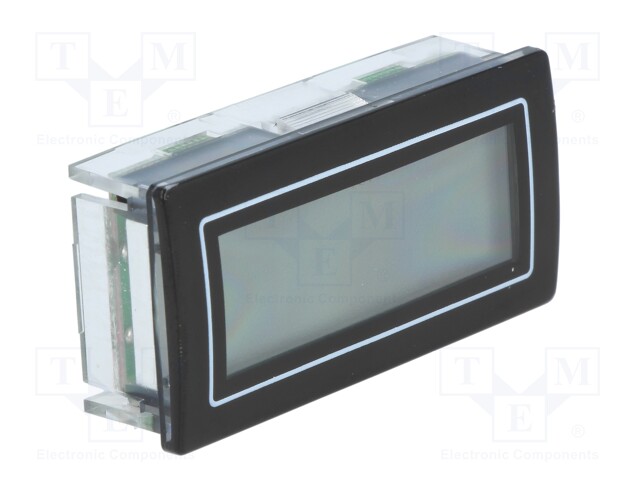

Specification for Counter: electronical; LCD,with a backlit,high contrast; pulses

Mounting on panel

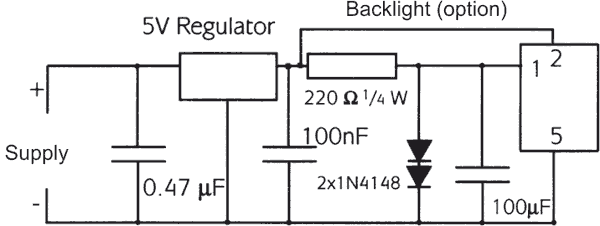

Supply voltage 3V DC
Operating temperature 0...50°C
IP rating IP20
Mounting hole diameter 45x22.2mm

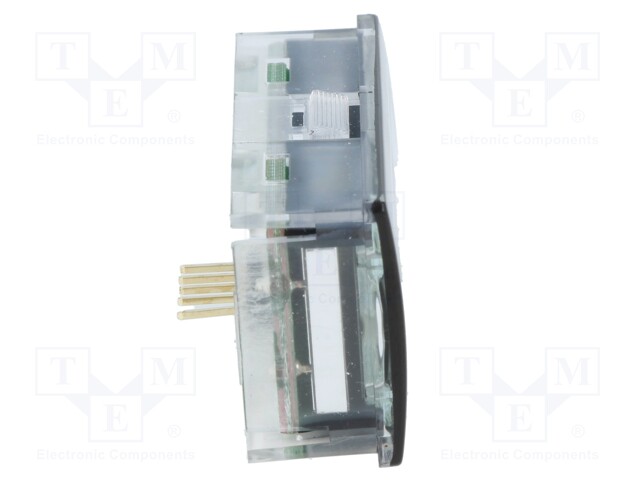

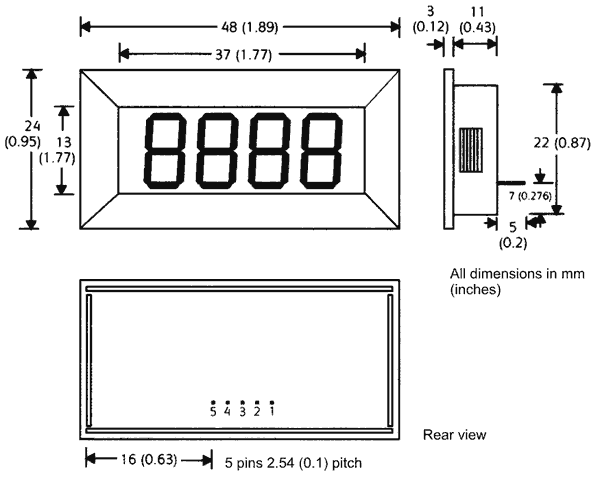

Body dimensions 48x24x14mm

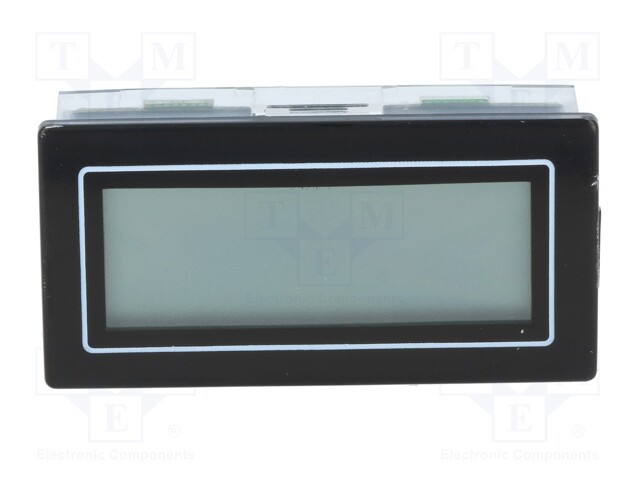

Kind of display used LCD
Power supply external
Kind of input 1 contact, OC

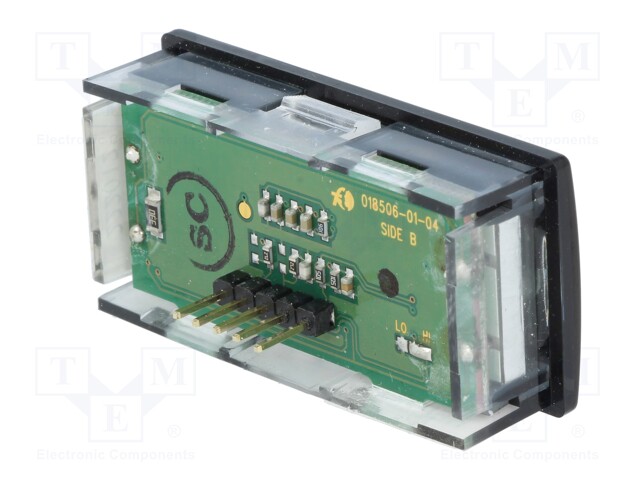

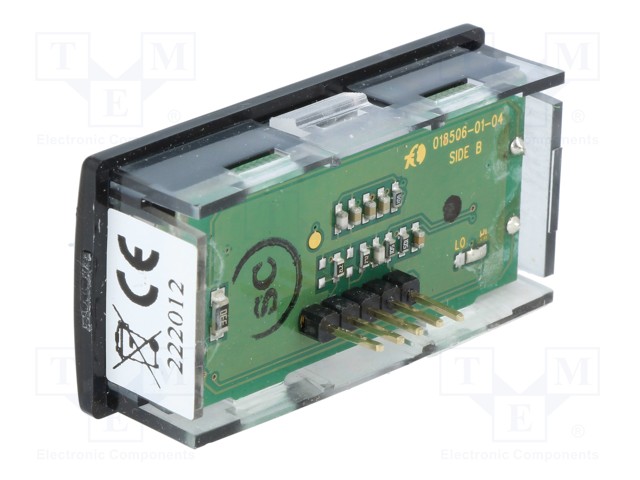

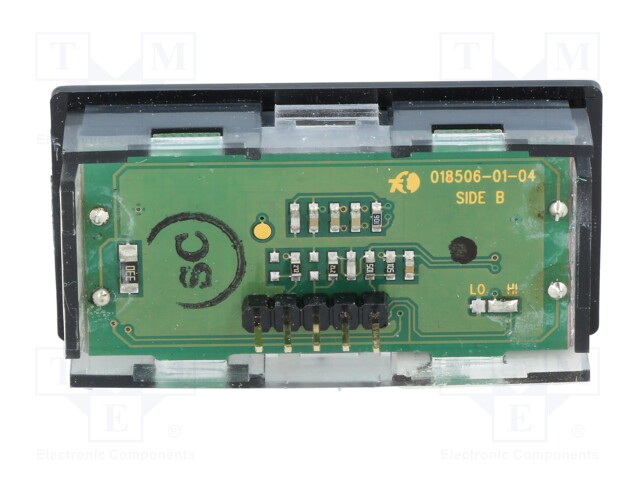

Electrical connection pin headers with 2,54mm pitch
Counting range 9999
Resetting method electrical

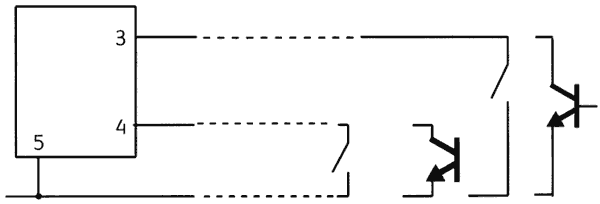

Input 1 properties PIN3, negative edge activation, threshold 0.7V, max 18V, minimal pulse length 25ms
Type of counted signal pulses
Type of counter electronical
Display height 1 10mm
Max IN1 counting frequency 10Hz

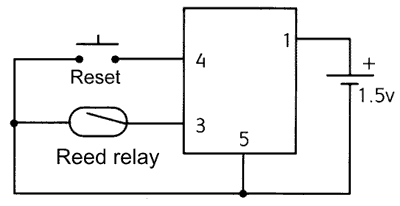

Erasing features PIN4 - remote contact, negative edge activation, threshold 0.7 V, max 18 V, minimal pulse length 15ms
