Relay: reed; SPST-NO; Ucoil: 5VDC; max.300VDC; Rcoil: 500Ω; 50mW; PCB

    Multiples: 6000.0
    Minimum quantity: 6000.0
    Product code: HE751A0510
    Manufacturer: LITTELFUSE
    Manufacturer code: HE751A0510
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series
    • Optional equipment

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed; SPST-NO; Ucoil: 5VDC; max.300VDC; Rcoil: 500Ω; 50mW; PCB

    Mounting PCB
    Case DIP
    Operating temperature -20...85°C
    Terminal pitch 2.54mm

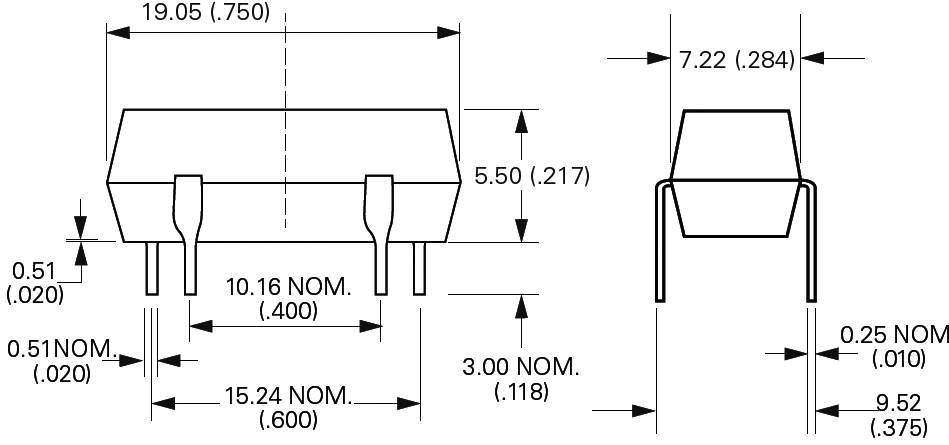

    Body dimensions 5.5x7.22x19.05mm
    Switched voltage max. 300V DC
    Coil resistance 500Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Coil voltage max. 12V DC
    Type of relay reed
    Coil voltage min. 3.75V DC
    Coil power consumption 50mW
    Relay series HE700
    Optional equipment overvoltage damping diode
