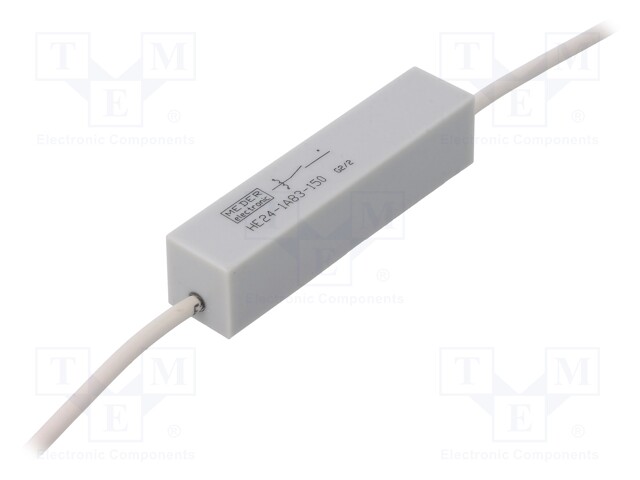

Relay: reed; SPST-NO; Ucoil: 24VDC; 5A; max.7.5kVDC; max.7.5kVAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HE24-1A83-150
    Manufacturer: MEDER
    Manufacturer code: HE24-1A83-150
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Min. insulation resistance
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time

    40.01 € 40.01 € (wo VAT) 40.01 EUR

    40.01 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed; SPST-NO; Ucoil: 24VDC; 5A; max.7.5kVDC; max.7.5kVAC

    Mounting PCB
    Operating temperature -20...70°C
    Body dimensions 65x15.5x14.5mm
    Switched voltage max. 7.5kV AC, max. 7.5kV DC
    Min. insulation resistance 10GΩ
    Switching capacity 50W
    Coil resistance 1.05kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 5A
    Type of relay reed
    Coil power consumption 0.549W
    Relay series HE
    Operate time 3.2ms
    Release time 1.5ms
