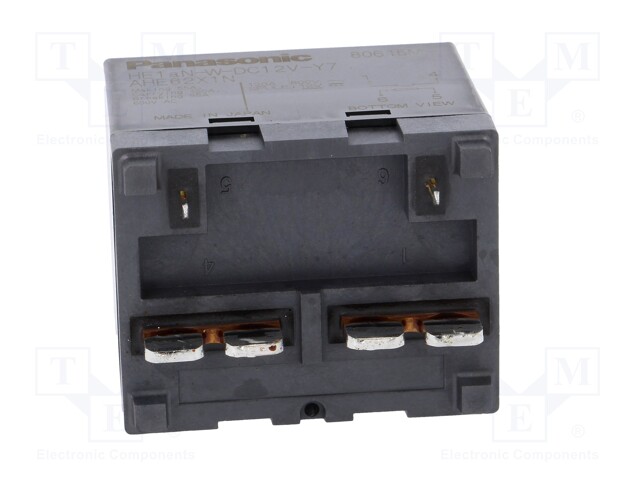

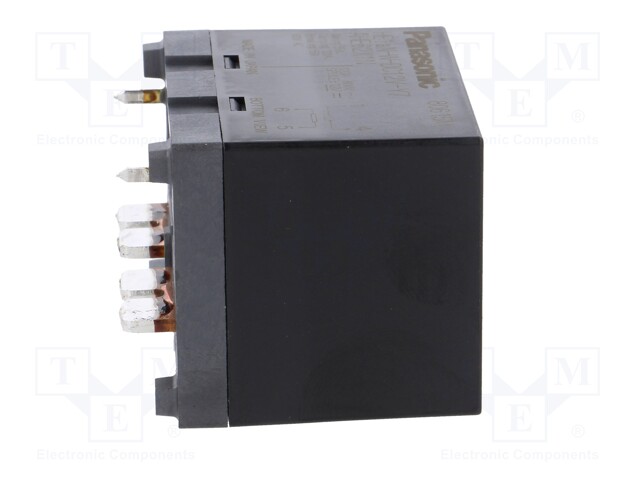

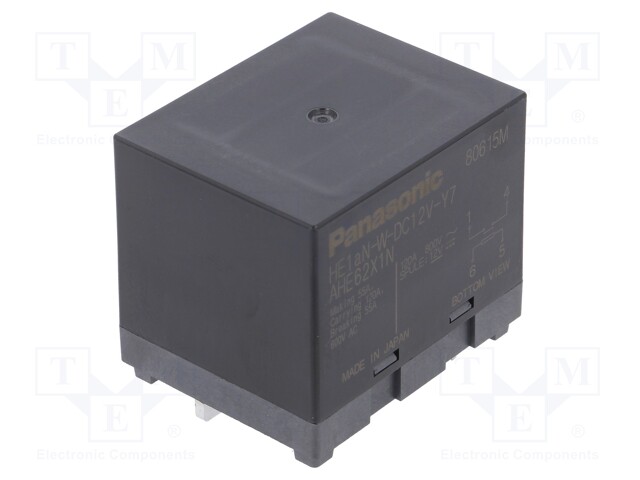

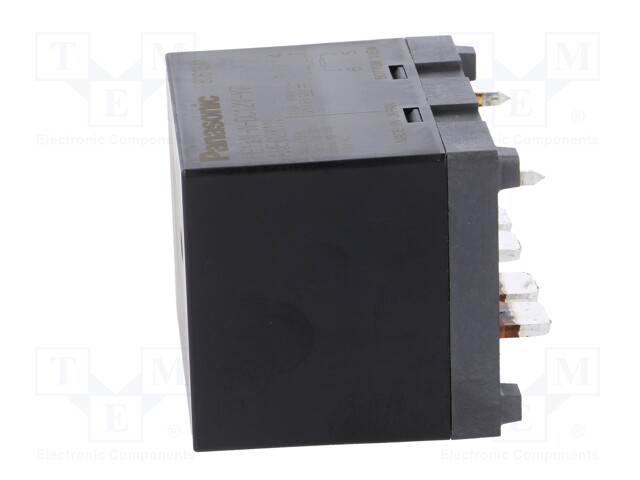

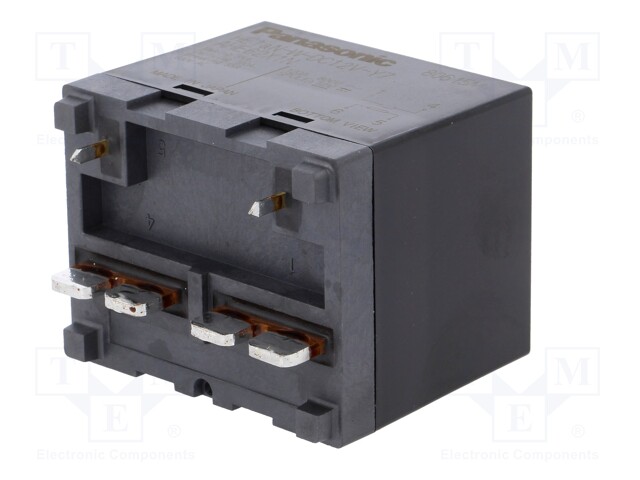

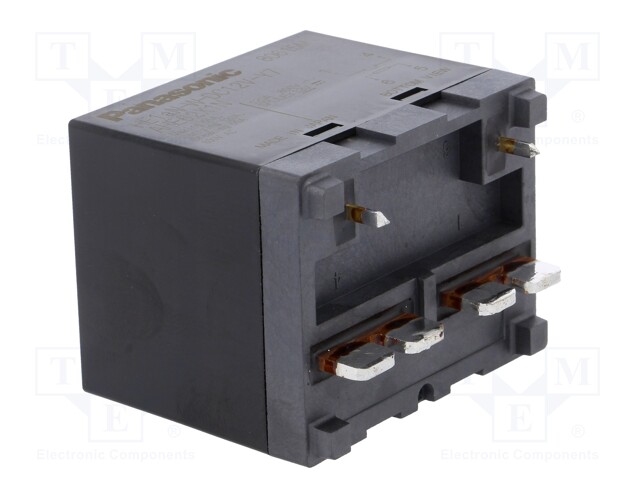

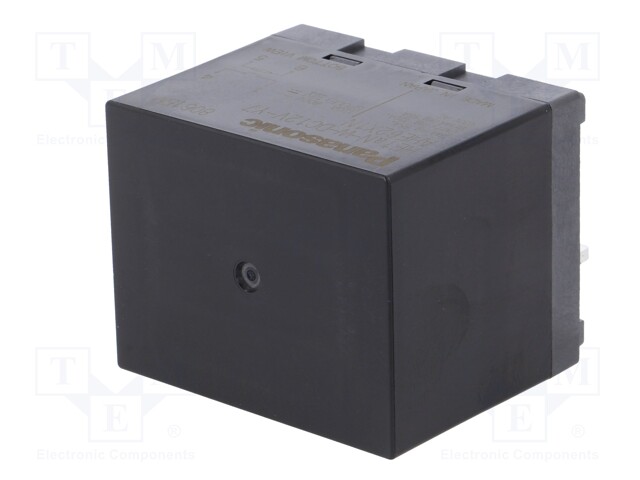

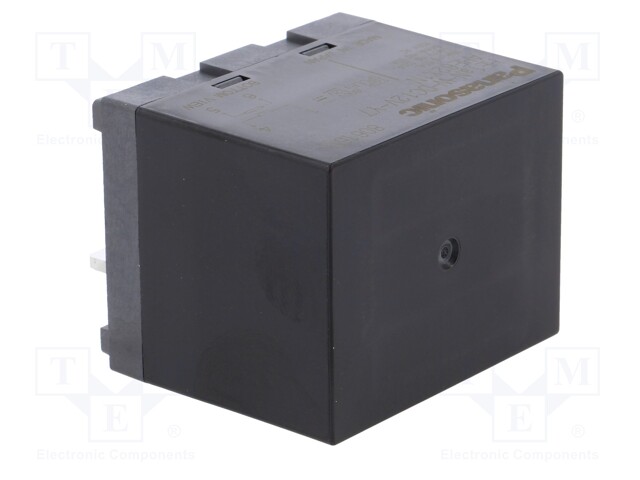

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 120A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HE1AN-W-DC12V-Y7
    Manufacturer: PANASONIC
    Manufacturer code: HE1AN-W-DC12V-Y7
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • Coil current

    40.99 € 40.99 € (wo VAT) 40.99 EUR

    40.99 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 120A

    Mounting PCB
    Operating temperature -40...55°C
    Contact material AgNi
    Body dimensions 50x40x43mm
    Mechanical durability 1000000cycles
    Switched voltage max. 800V AC
    Switching capacity 57.6kVA
    Coil resistance 57.6Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 120A / 480V AC
    Contact current max. 120A
    Relay variant power
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 2.5W
    Relay series HE
    Operate time 30ms
    Release time 10ms
    Coil current 208mA
