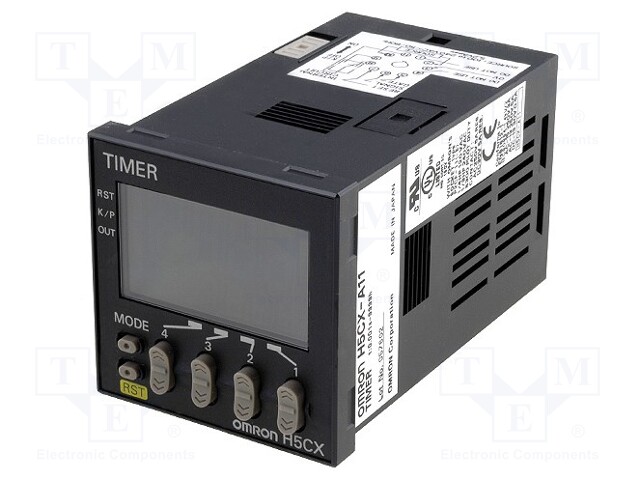

Timer; Range: 0,01s÷9999h; SPDT; 100÷240VAC; DIN,socket,on panel
Multiples:
1.0
Minimum quantity:
1.0
Product code:
H5CX-A11-N
Manufacturer: OMRON
Manufacturer code: H5CX-A11-N
Product downloads
Specification for Timer; Range: 0,01s÷9999h; SPDT; 100÷240VAC; DIN,socket,on panel
| Mounting | on panel, socket, for DIN rail mounting |
| Supply voltage | 100...240V AC |
| Operating temperature | -10...55°C |
| IP rating | IP66 |
| Kind of connector | undecal |
| Number of pins | 11 |
| Type of module | timer |
| Mounting hole diameter | 45x45mm |
| Kind of display used | LED |
| Kind of output | SPDT |
| Indication | LED |
| Electrical connection | round socket |
| Counting range | 0,01s...9999h |
| Counter operation modes | cumulative, delayed switching off, delayed switching on, ON for the set interval, symmetrical cyclical operation pause first, with the control contact S |
| Timers features | fitted with function for up and down time counting |
| number of operation modes | 12 |
| The additional control inputs | gate, RESET, START |
