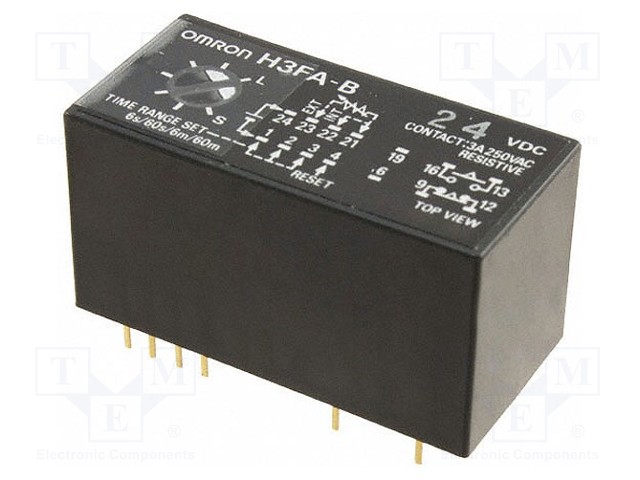

Timer; 0,6s÷60min; SPST-NO + SPST-NC; 250VAC/3A; 24VDC; PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: H3FA-B 24DC
    Manufacturer: OMRON
    Manufacturer code: H3FA-B 24DC
    • Mounting
    • Supply voltage
    • Operating temperature
    • Number of pins
    • Type of module
    • Body dimensions
    • Kind of output
    • Counting range
    • Counter operation modes
    • Counter operation modes
    • number of operation modes
    • The additional control inputs

    84.41 € 84.41 € (wo VAT) 84.41 EUR

    84.41 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Timer; 0,6s÷60min; SPST-NO + SPST-NC; 250VAC/3A; 24VDC; PCB

    Mounting PCB
    Supply voltage 24V DC
    Operating temperature -10...55°C

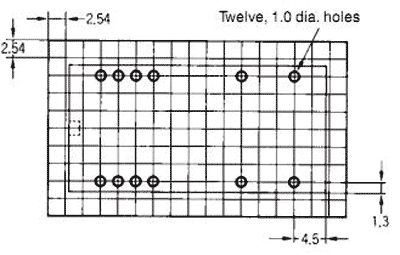

    Number of pins 12
    Type of module timer

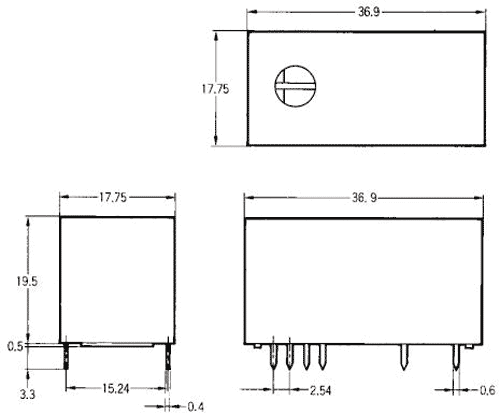

    Body dimensions 17.5x36.9x19.5mm
    Kind of output SPST-NO + SPST-NC
    Counting range 0,6s...60min
    Counter operation modes delayed switching on, with the control contact S
    number of operation modes 1
    The additional control inputs RESET
