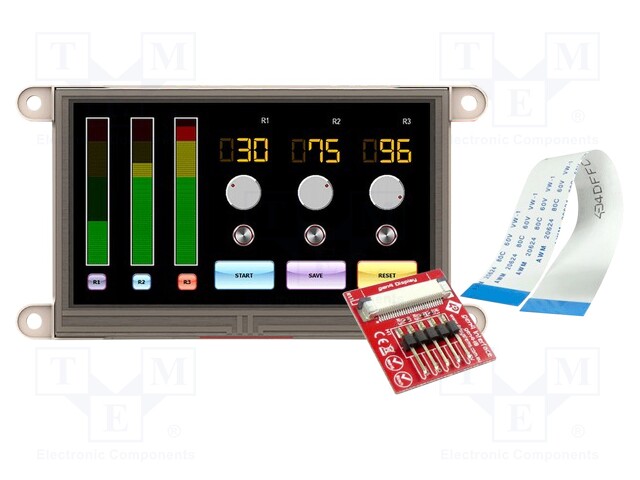

Display: TFT; 4.3"; 480x272; Window dimensions: 95.04x53.86mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GEN4-ULCD-43DT
    Manufacturer: 4D Systems
    Manufacturer code: GEN4-ULCD-43DT
    • Supply voltage
    • Operating temperature
    • Kind of connector
    • Interface
    • Interface
    • Interface
    • Interface
    • Interface
    • Interface
    • Operating current
    • Kit contents
    • Kit contents
    • Kit contents
    • Type of pin configuration
    • Microcontroller
    • Display resolution
    • Display features
    • Display features
    • Display features
    • Display features
    • Display features
    • Display features
    • Screen size
    • Kind of display
    • Window dimensions (H x W)
    • Type of display
    • Flash memory organisation

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Display: TFT; 4.3"; 480x272; Window dimensions: 95.04x53.86mm

    Supply voltage 5V DC
    Operating temperature -15...65°C
    Kind of connector FFC/FPC
    Interface 1-wire, 8bit parallel, GPIO, I2C x3, serial, SPI x3
    Operating current 300mA
    Kit contents 15cm 30pin FFC cable, GEN4-IB, manual
    Type of pin configuration 1x30
    Microcontroller DIABLO16
    Display resolution 480x272
    Display features CRC, microSD card reader, NeoPixel, pulse output, PWM output, quadrature input
    Screen size 4.3"
    Kind of display graphical
    Window dimensions (H x W) 95.04x53.86mm
    Type of display TFT
    Flash memory organisation 6x32kB
