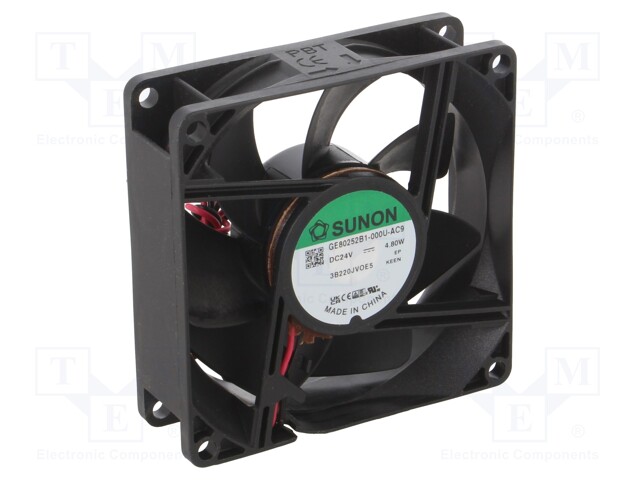

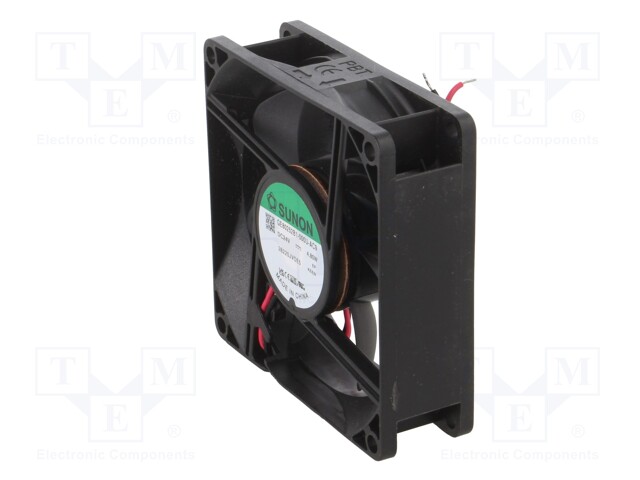

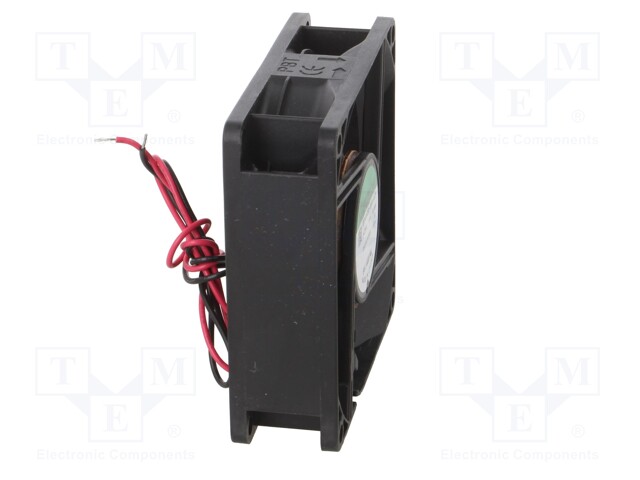

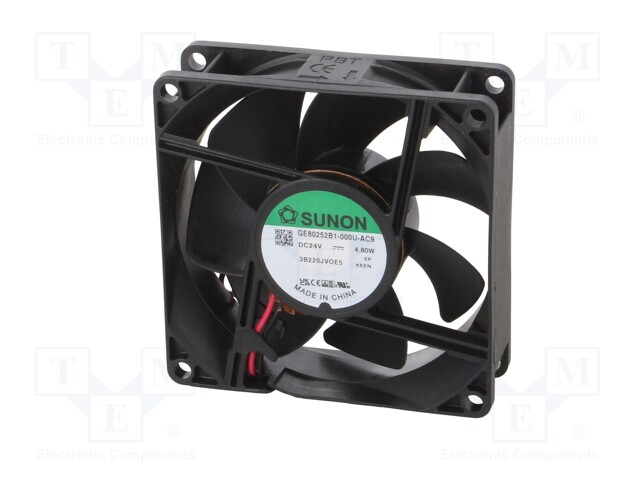

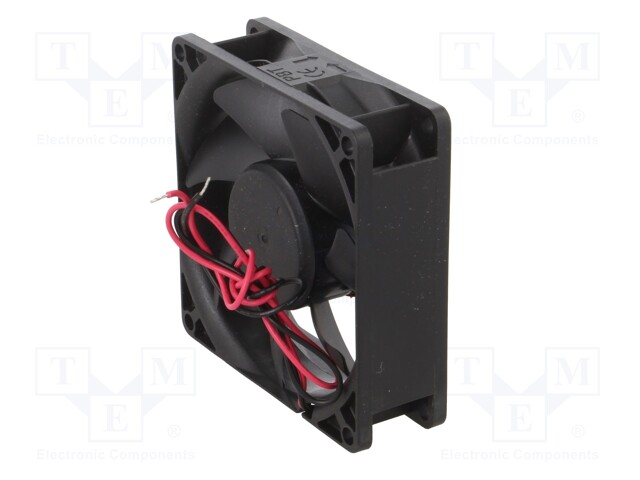

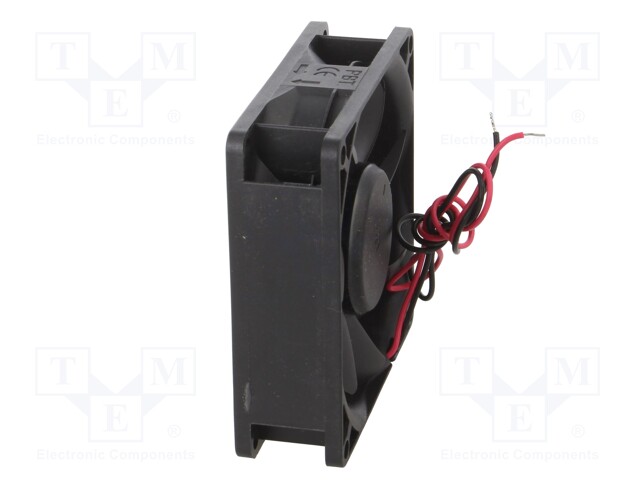

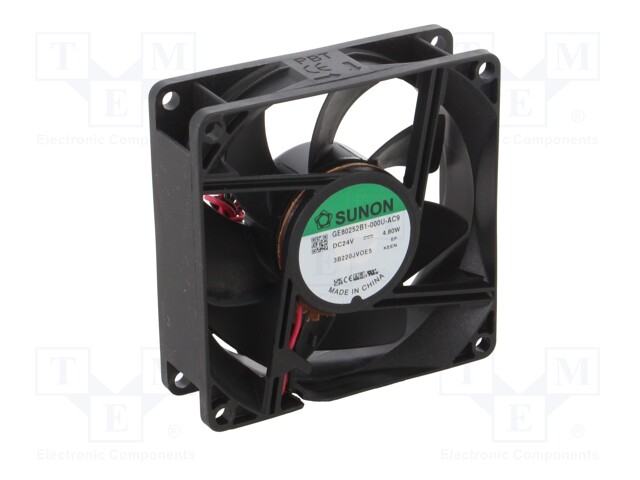

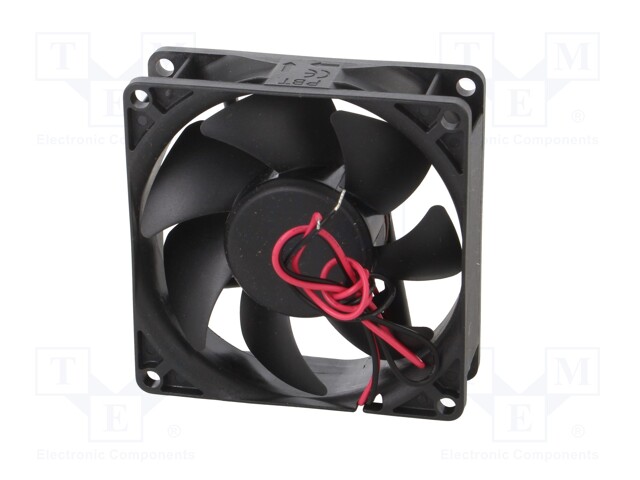

Fan: DC; axial; 24VDC; 80x80x25mm; 101.9m3/h; 47.5dBA; ball bearing
Multiples:
1.0
Minimum quantity:
1.0
Product code:
GE80252B1-000U-AC9
Manufacturer: SUNON
Manufacturer code: GE80252B1-000U-AC9
Product downloads
Specification for Fan: DC; axial; 24VDC; 80x80x25mm; 101.9m3/h; 47.5dBA; ball bearing
Supply voltage | 24V DC |
Operating temperature | -10...70°C |
IP rating | IP56 |
Enclosure material | thermoplastic |
Leads | 2 leads |
Flammability rating | UL94V-0 |
Current rating | 200mA |
Fan efficiency | 101.9m<sup>3</sup>/h |
Power consumption | 4.8W |
Additional functions | Autorestart |
Rotational rate/speed | 4800 (±10%)rpm |
Fan motor | brushless DC motor |
Fan dimensions | 80x80x25mm |
Kind of Bearing | ball bearing |
Min. insulation resistance | 10MΩ |
Impeller material | thermoplastic |
Kind of fan | axial |
Insulation class | A |
Type of fan | DC |
Static pressure | 10.414mm H<sub>2</sub>O |
Noise level | 47.5dBA |
