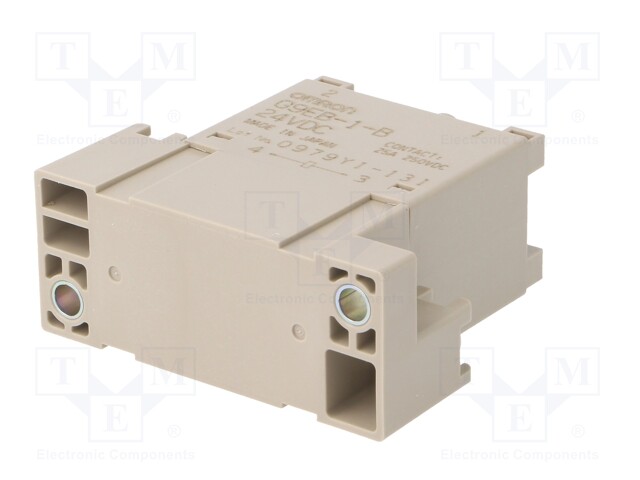

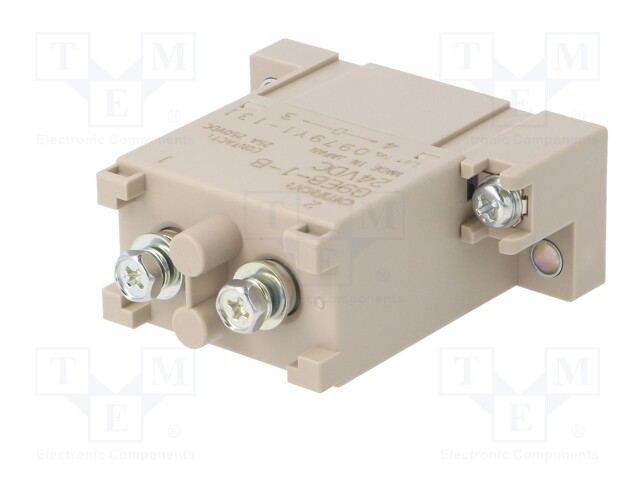

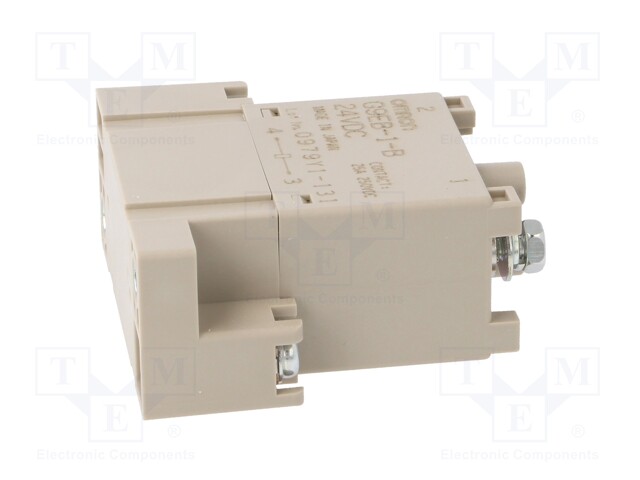

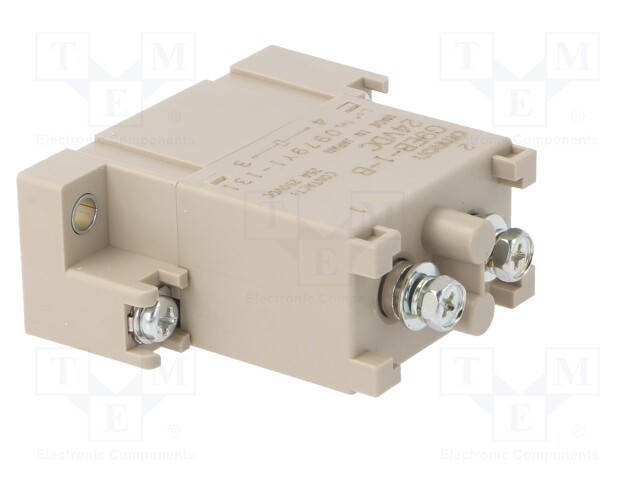

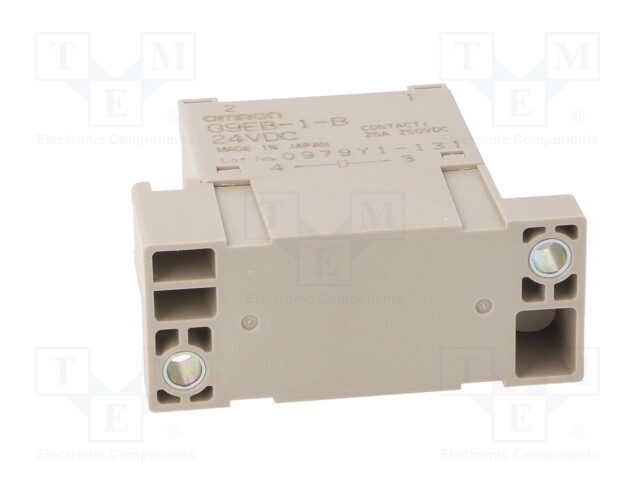

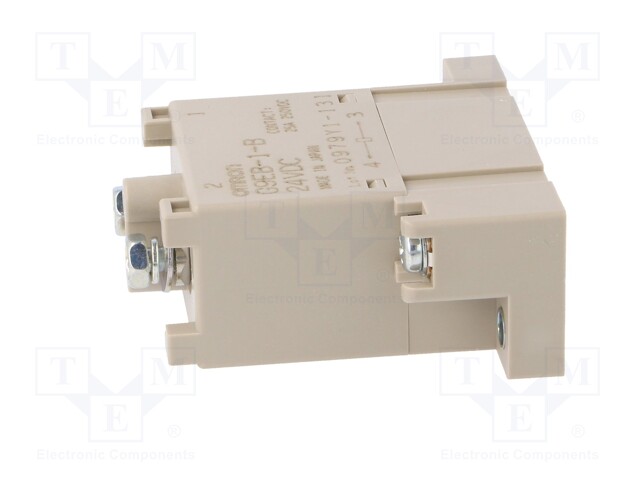

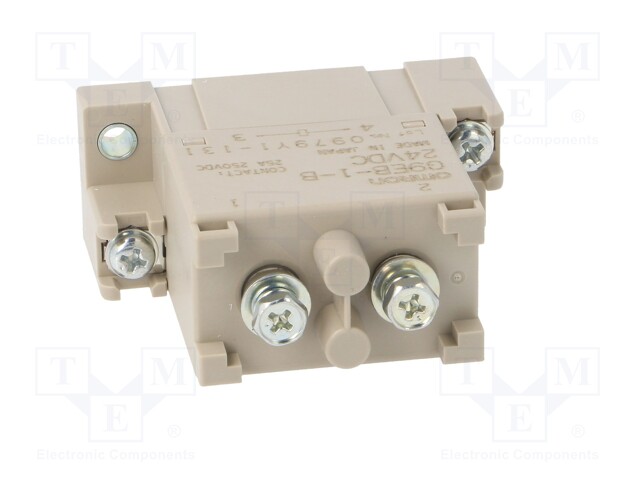

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 25A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G9EB-1-B 24VDC
    Manufacturer: OMRON OCB
    Manufacturer code: G9EB-1-B 24VDC
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 25A

    Mounting on panel
    Operating temperature -40...70°C
    Leads M4 screws
    Body dimensions 60x25x58mm
    Switched voltage max. 250V DC
    Coil resistance 288Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 25A / 250V DC
    Contact resistance 30Ω
    Contact current max. 25A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 2W
    Relay series G9EB
    Operate time 30ms
    Release time 15ms
    Coil current 83.3mA
