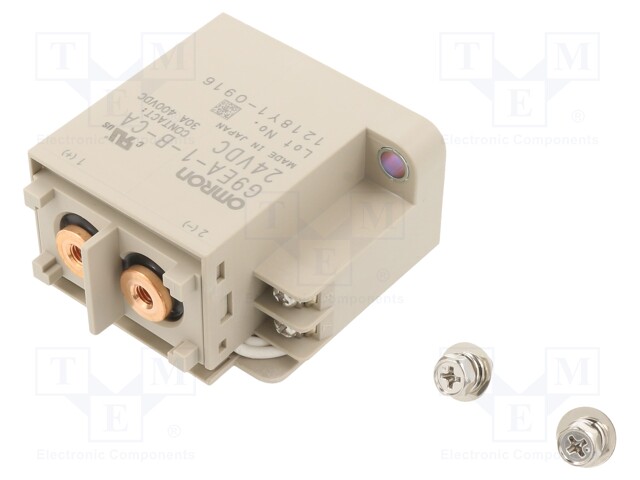

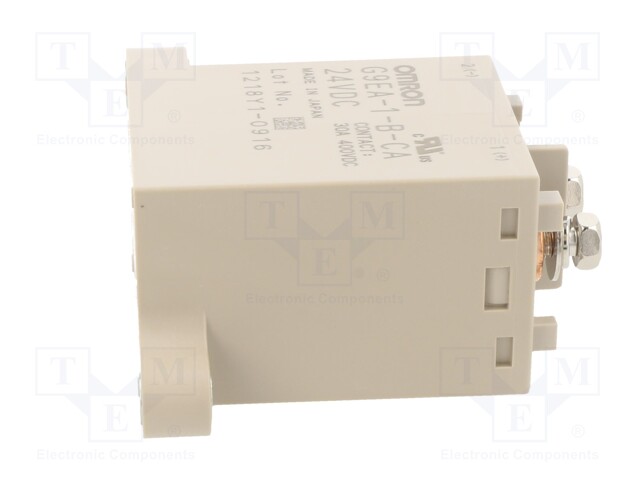

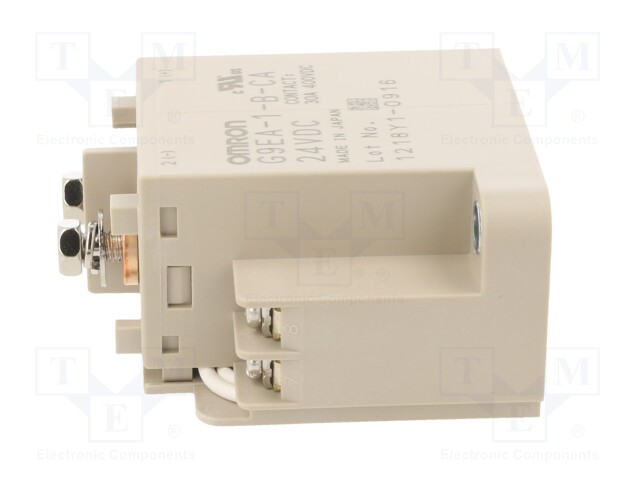

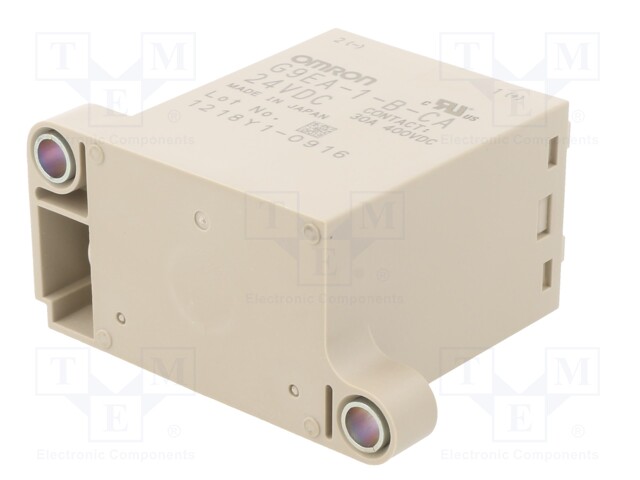

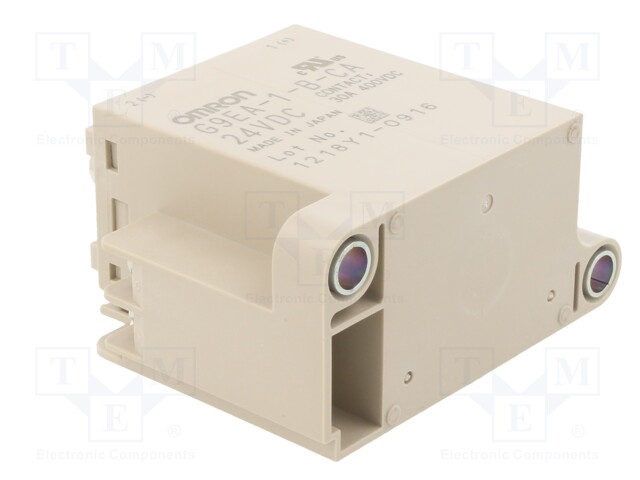

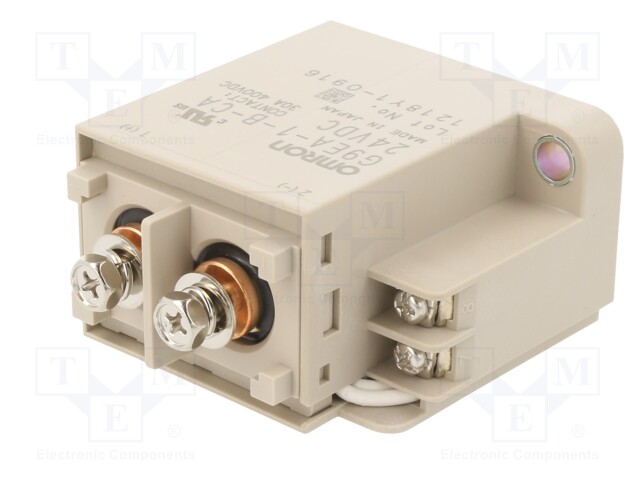

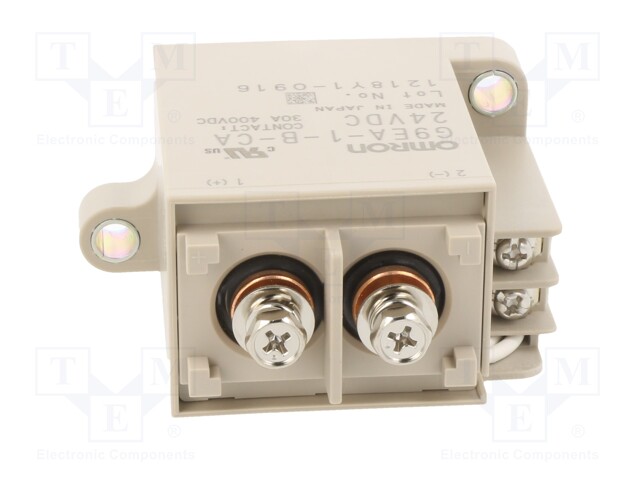

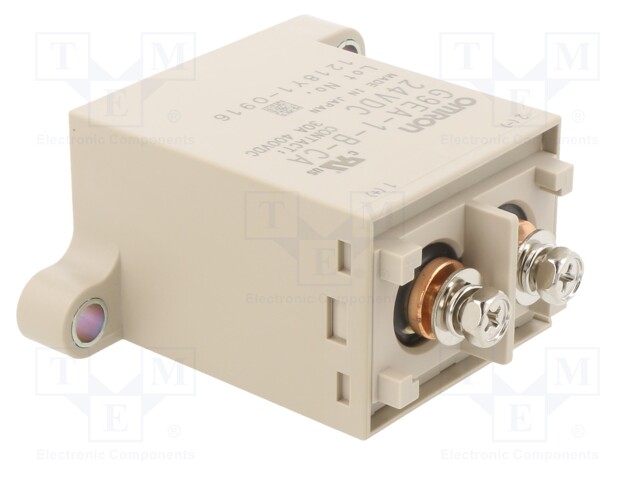

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G9EA-1-B-CA 24VDC
    Manufacturer: OMRON OCB
    Manufacturer code: G9EA-1-B-CA 24VDC
    • Mounting
    • Operating temperature
    • Leads
    • Leads
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • Coil current

    104.99 € 104.99 € (wo VAT) 104.99000000000001 EUR

    104.99 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 30A

    Mounting on panel
    Operating temperature -40...70°C
    Leads M3.5 screws, M5 screws
    Body dimensions 73x36x67.2mm
    Switched voltage max. 400V DC
    Coil resistance 115.2Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 30A / 400V DC
    Contact resistance 10mΩ
    Contact current max. 30A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 5W
    Relay series G9EA
    Operate time 50ms
    Release time 30ms
    Coil current 208mA
