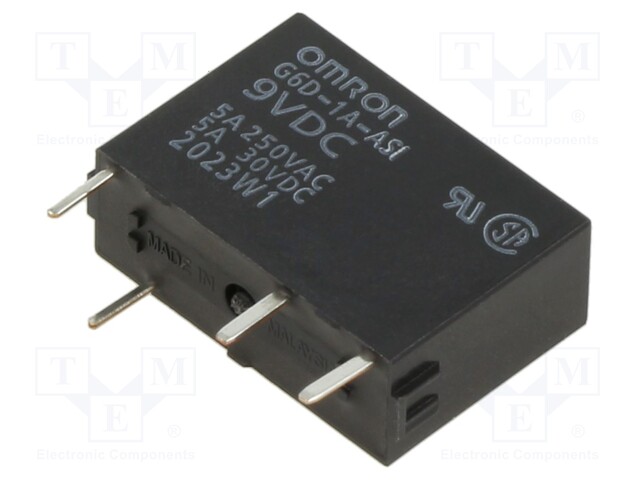

Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 5A; 5A/250VAC; PCB
Multiples:
1.0
Minimum quantity:
1.0
Product code:
G6D-1A-ASI DC9
Manufacturer: OMRON OCB
Manufacturer code: G6D-1A-ASI DC9
Specification for Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 5A; 5A/250VAC; PCB
Mounting | PCB |
Operating temperature | -25...70°C |
Leads | for soldering |
Contact material | silver alloy |
Body dimensions | 17.5x6.5x12.5mm |
Mechanical durability | 20000000cycles |
Switched voltage | max. 30V DC, max. 250V AC |
Rated coil voltage | 9V DC |
Contacts configuration | SPST-NO |
DC contacts rating @R | 5A / 30V DC |
Contact resistance | 100MΩ |
AC contacts rating @R | 5A / 250V AC |
Enclosure description | hermetic seal |
Contact current max. | 5A |
Relay variant | miniature |
Type of relay | electromagnetic |
Relay series | G6D |
Operate time | 10ms |
Release time | 5ms |
