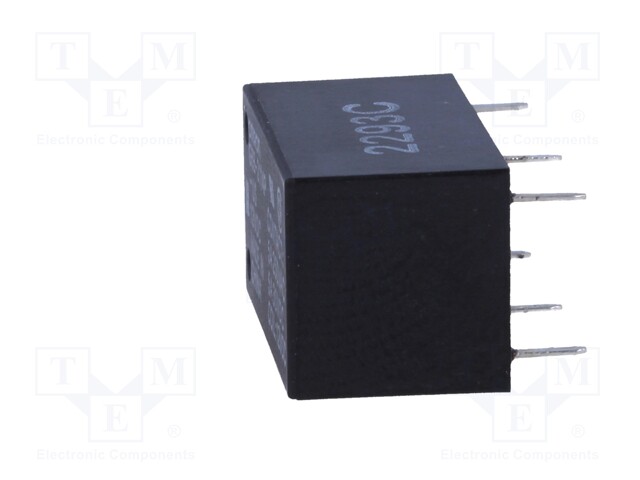

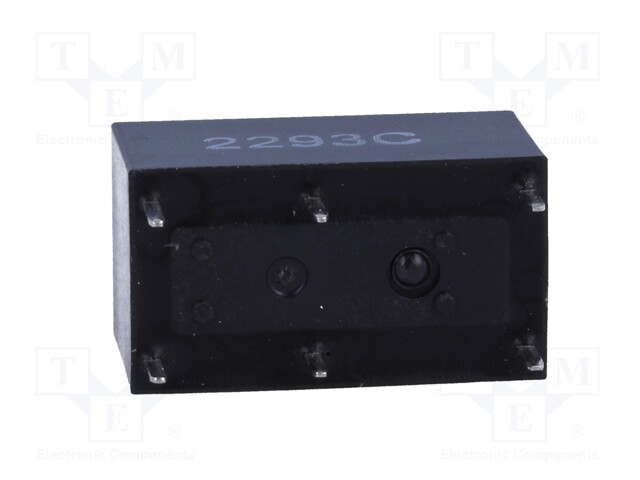

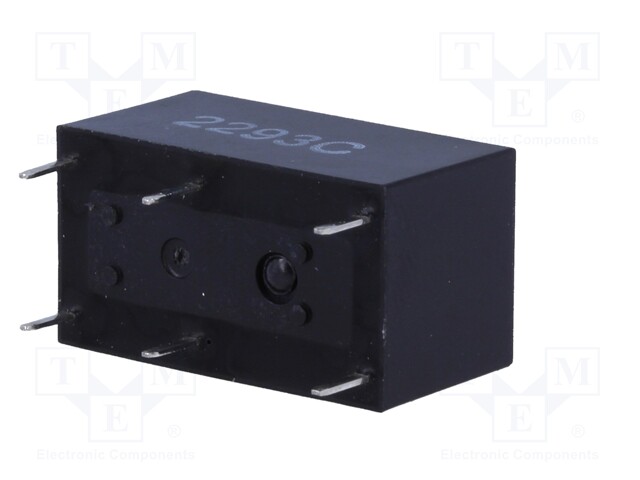

Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 5A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G6B-2114P-US 12VDC
    Manufacturer: OMRON ELECTRONIC COMPONENTS
    Manufacturer code: G6B-2114P-US 12VDC
    • Mounting
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Relay series
    • Operate time
    • Release time
    • Coil current

    5.43 € 5.43 € (wo VAT) 5.43 EUR

    5.43 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 5A/30VDC

    Mounting PCB, socket
    Operating temperature -25...70°C
    Terminal pitch 7.62mm
    Body dimensions 20x10x10mm
    Switched voltage max. 125V DC, max. 380V AC
    Coil resistance 480Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO + SPST-NC
    DC contacts rating @R 5A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Relay series G6B
    Operate time 10ms
    Release time 10ms
    Coil current 25mA
