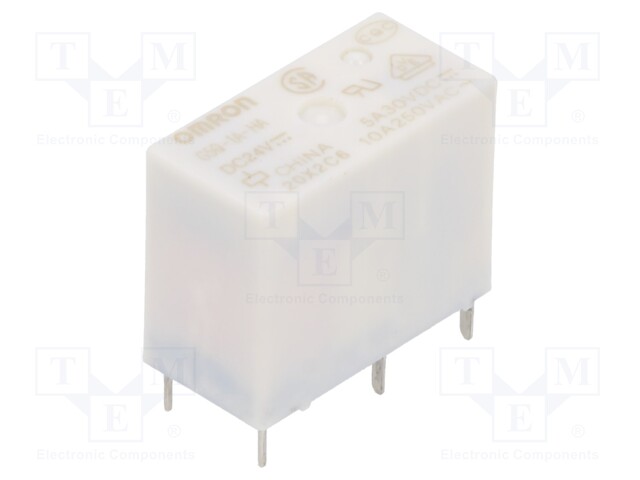

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 10A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G5Q-1A-HA DC24 (TY)
    Manufacturer: OMRON OCB
    Manufacturer code: G5Q-1A-HA DC24 (TY)
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Type of relay
    • Relay series
    • Operate time
    • Release time
    • Coil current

    2.51 € 2.51 € (wo VAT) 2.5100000000000002 EUR

    2.51 €

    This combination does not exist.

    Add to Cart

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 10A

    Mounting PCB
    Operating temperature -40...105°C
    Leads for soldering
    Contact material silver alloy
    Mechanical durability 10000000cycles
    Switched voltage max. 30V DC, max. 277V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 125V AC
    Enclosure description standard seal
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Relay series G5Q
    Operate time 10ms
    Release time 5ms
    Coil current 8.3mA
