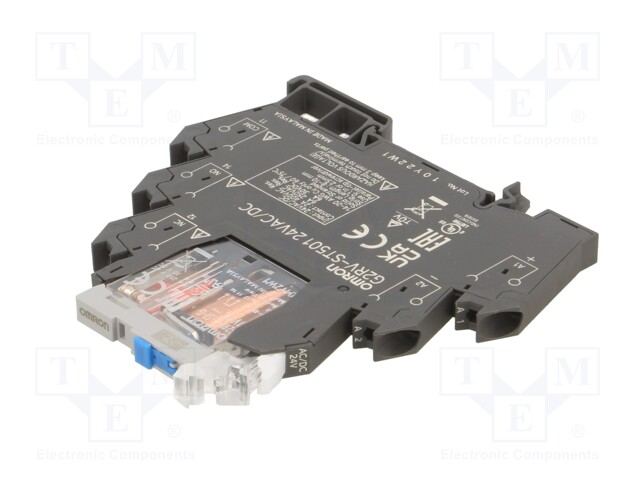

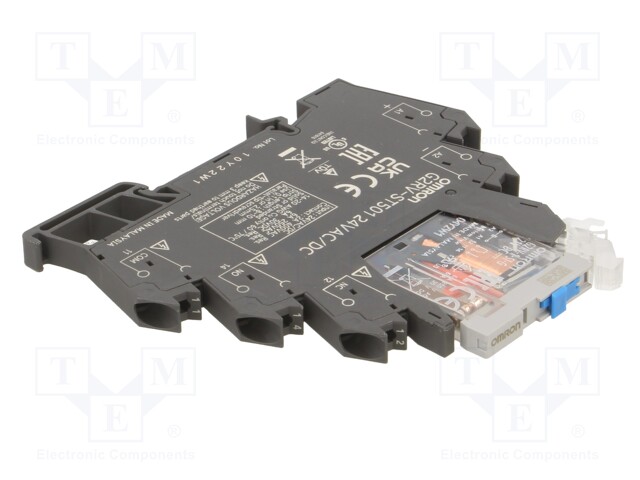

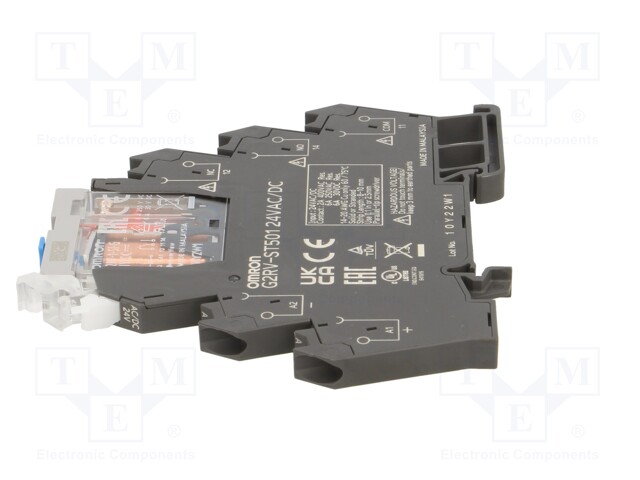

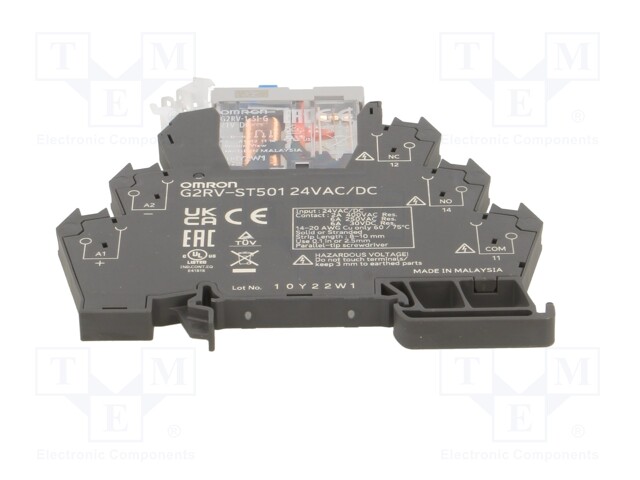

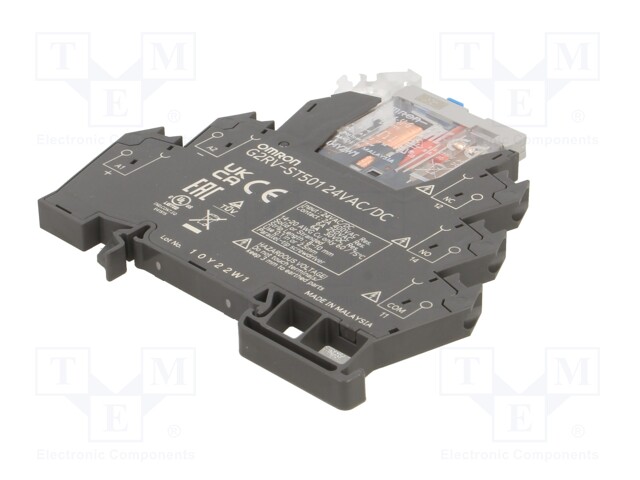

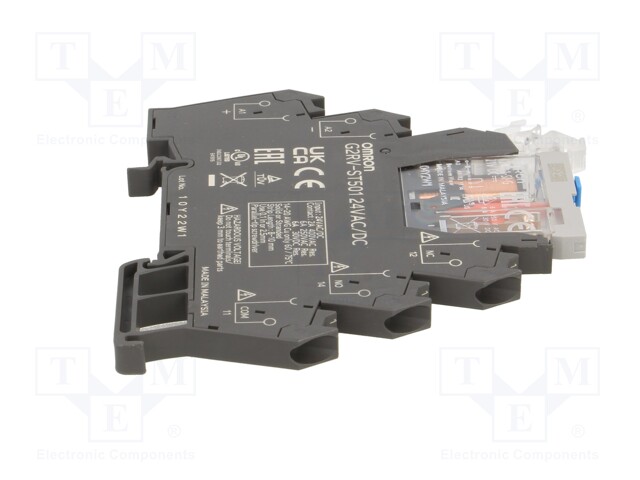

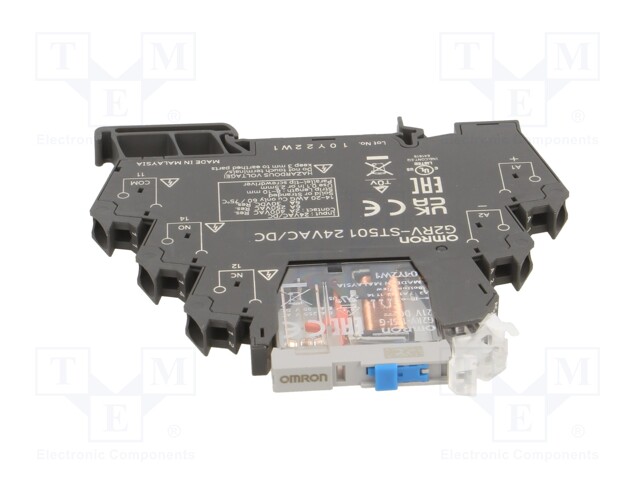

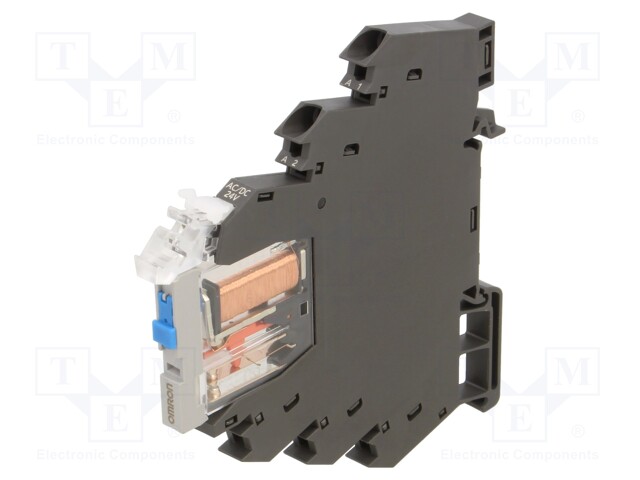

Relay: interface; SPDT; Ucoil: 24VDC; Ucoil: 24VAC; 6A; 6A/250VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G2RV-ST501 AC/DC24
    Manufacturer: OMRON
    Manufacturer code: G2RV-ST501 AC/DC24
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Contact material
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Optional equipment

    13.20 € 13.20 € (wo VAT) 13.200000000000001 EUR

    13.20 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: interface; SPDT; Ucoil: 24VDC; Ucoil: 24VAC; 6A; 6A/250VAC

    Mounting for DIN rail mounting
    Max. operating current 6A
    Operating temperature -40...55°C
    Leads spring clamps
    Contact material AgNi
    Mechanical durability 5000000cycles
    Switched voltage max. 125V DC, max. 440V AC
    Electrical life 500000cycles
    Contacts configuration SPDT
    DC contacts rating @R 6A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 6A / 250V AC
    Relay variant interface
    Type of relay interface
    Operate time 20ms
    Release time 40ms
    Optional equipment test button with blocking function
