Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A/250VAC; 16A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: FTR-K1AK024T
    Manufacturer: FUJITSU
    Manufacturer code: FTR-K1AK024T
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time

    2.79 € 2.79 € (wo VAT) 2.79 EUR

    2.79 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 16A/250VAC; 16A

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 5mm
    Body dimensions 29x12.7x15.7mm
    Switched voltage max. 300V DC, max. 440V AC
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC

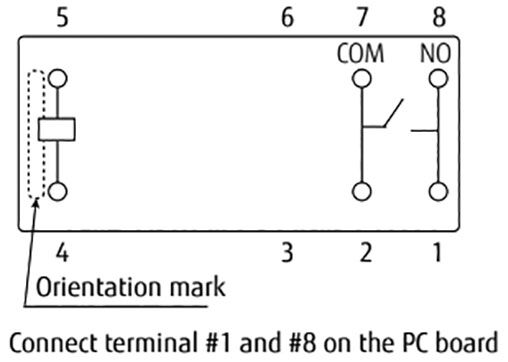

    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 400mW
    Relay series FTR-K1
    Operate time 15ms
    Release time 5ms
