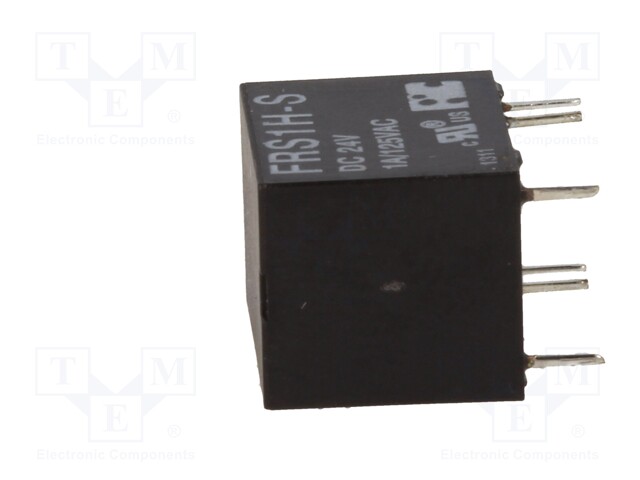

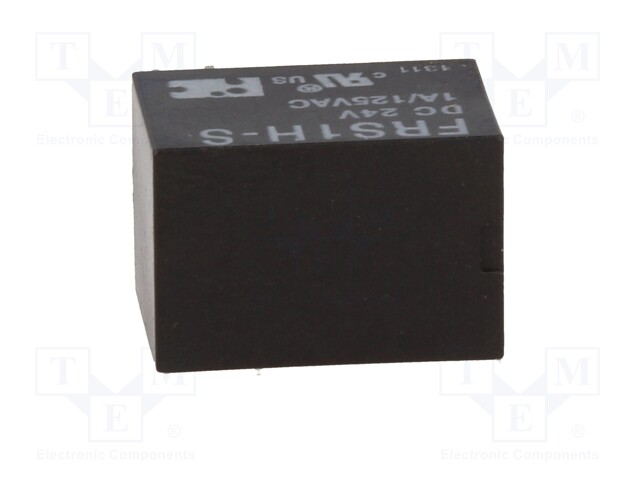

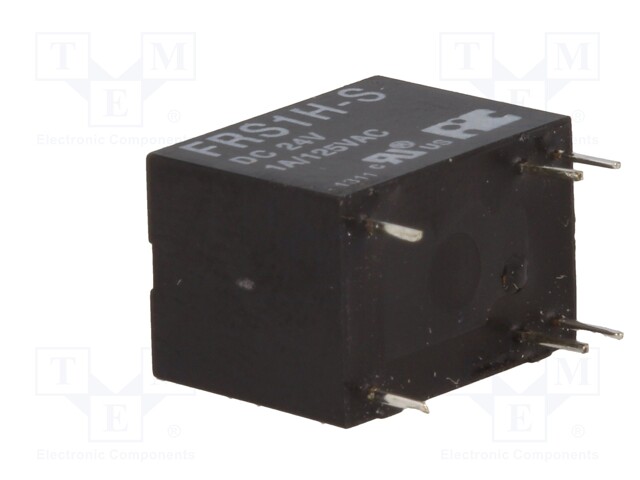

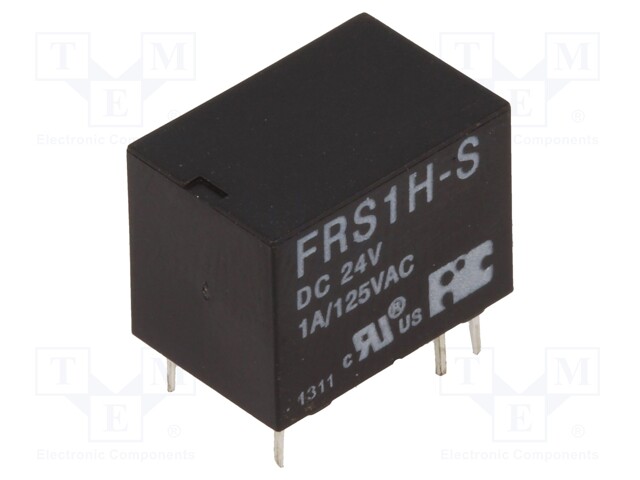

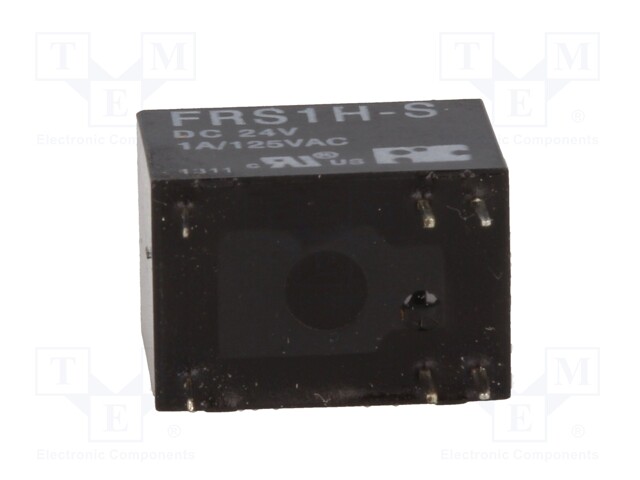

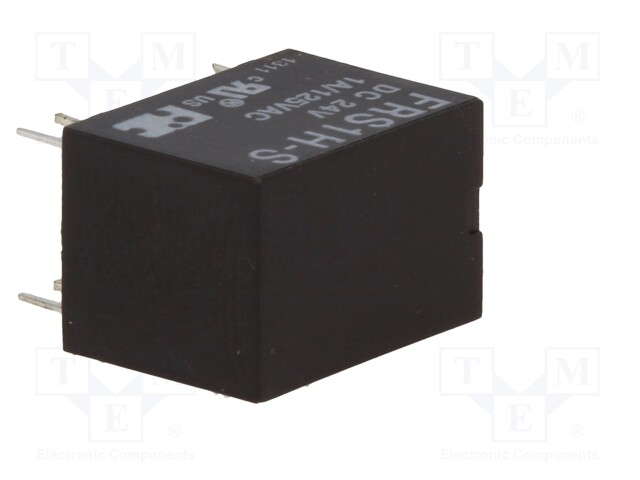

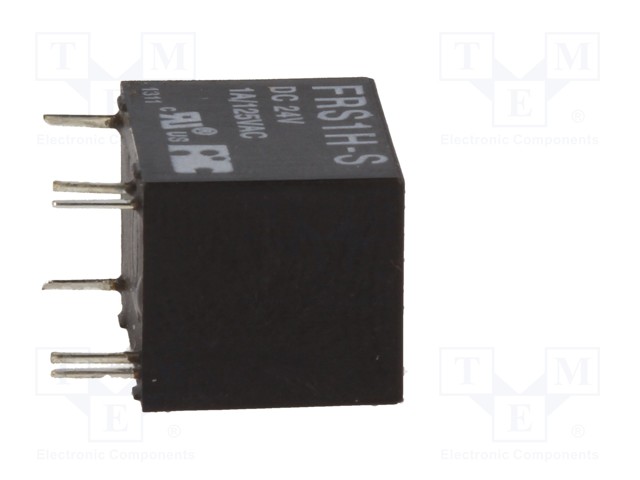

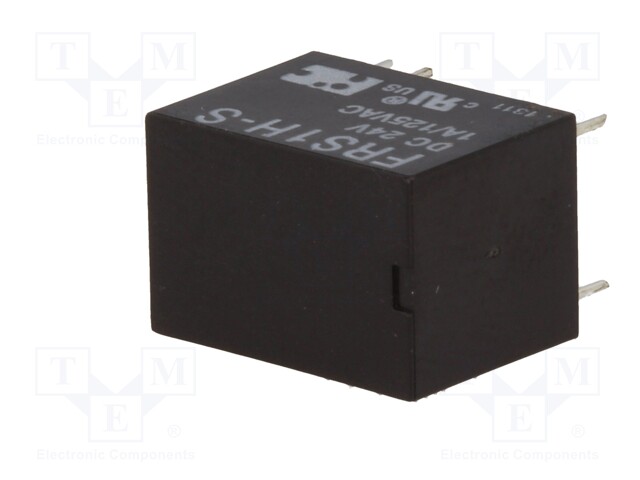

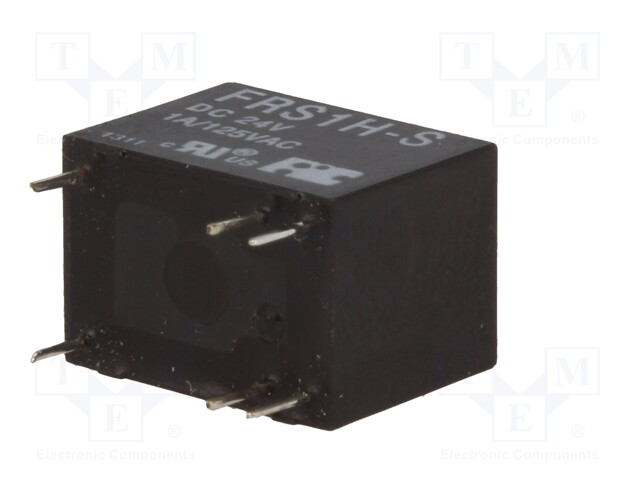

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 1A/125VAC; 1A/30VDC

Multiples: 1.0
Minimum quantity: 1.0
Product code: FRS1H-S-DC24
Manufacturer: FORWARD INDUSTRIAL CO.
Manufacturer code: FRS1H-S-DC24
  • Mounting
  • Operating temperature
  • Contact material
  • Terminal pitch
  • Body dimensions
  • Switched voltage
  • Switched voltage
  • Coil resistance
  • Rated coil voltage
  • Contacts configuration
  • DC contacts rating @R
  • Contact resistance
  • AC contacts rating @R
  • Contact current max.
  • Relay variant
  • Type of relay
  • Coil power consumption
  • Relay series
  • Coil current

1.78 € 1.78 € (wo VAT) 1.78 EUR

1.78 €

This combination does not exist.

Add to Cart

Product downloads

Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 1A/125VAC; 1A/30VDC

Mounting PCB
Operating temperature -25...75°C
Contact material silver
Terminal pitch 2.54mm
Body dimensions 16x11x11.5mm
Switched voltage max. 60V DC, max. 220V AC
Coil resistance 2.8kΩ
Rated coil voltage 24V DC
Contacts configuration SPDT
DC contacts rating @R 1A / 30V DC
Contact resistance 50mΩ
AC contacts rating @R 1A / 125V AC
Contact current max. 1A
Relay variant subminiature
Type of relay electromagnetic
Coil power consumption 200mW
Relay series FRS1
Coil current 8.6mA
