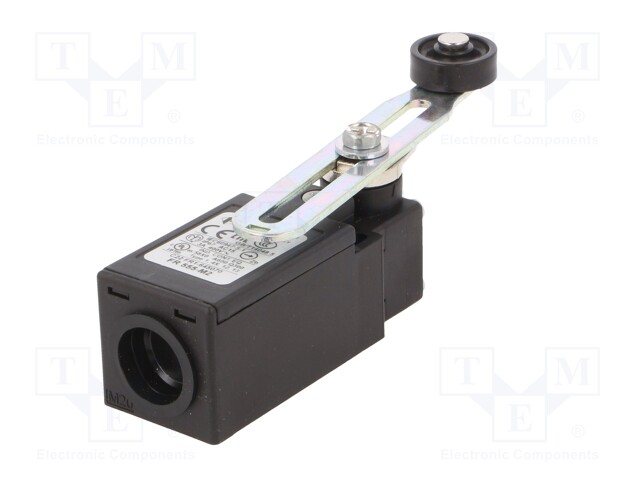

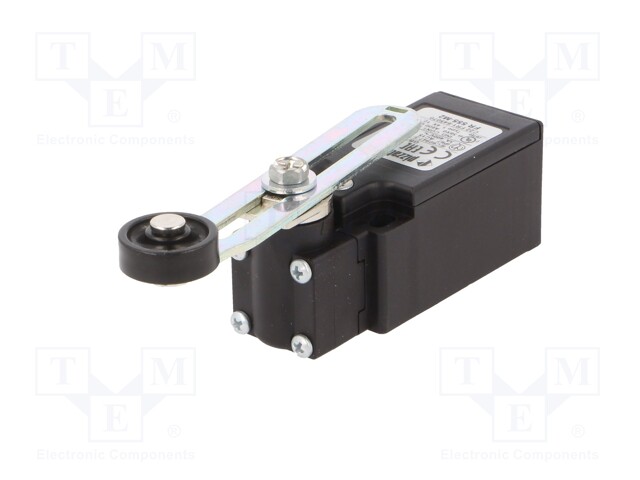

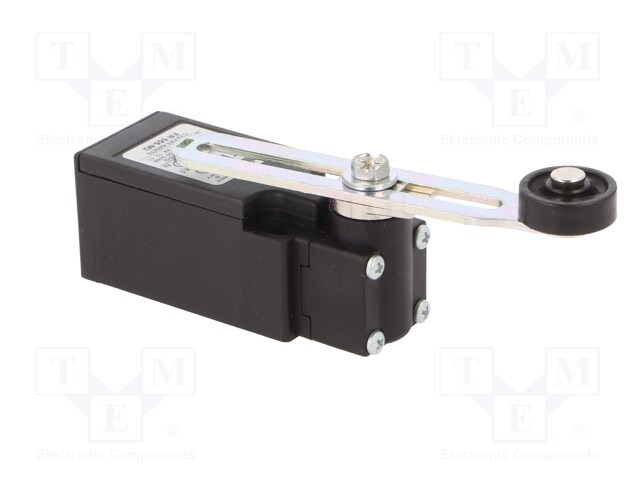

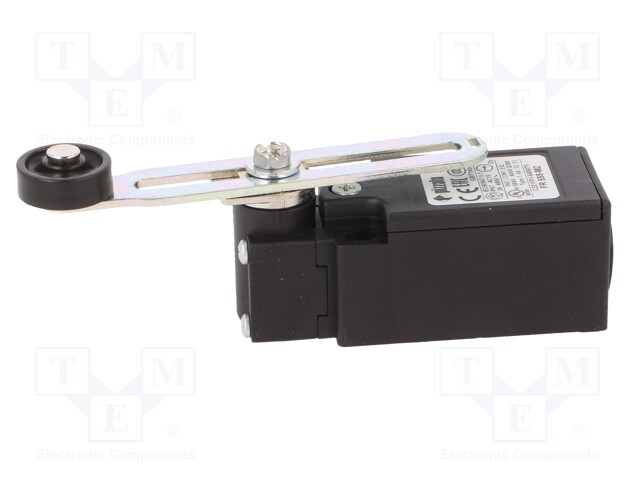

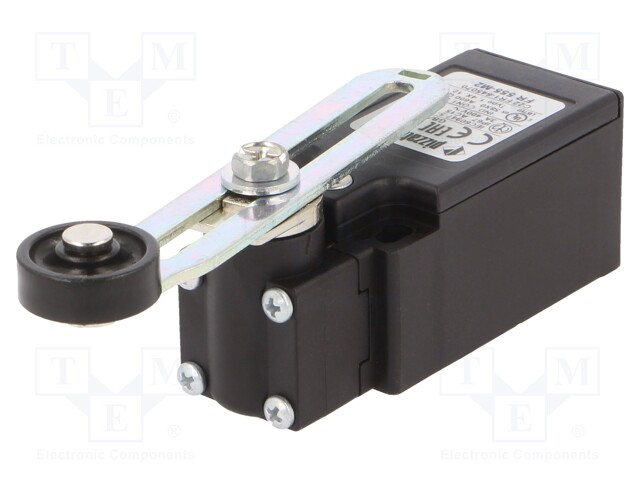

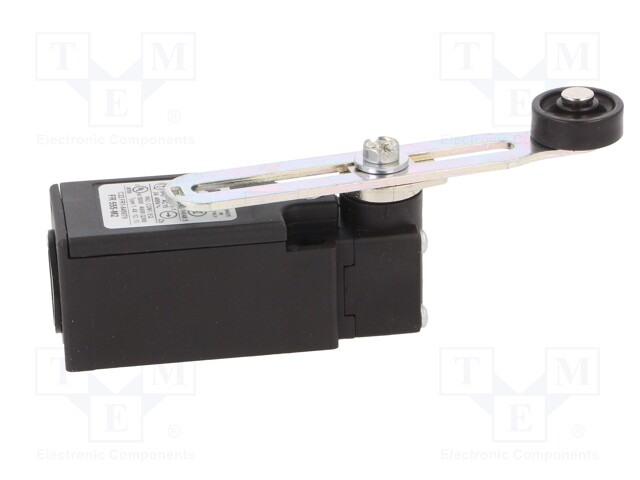

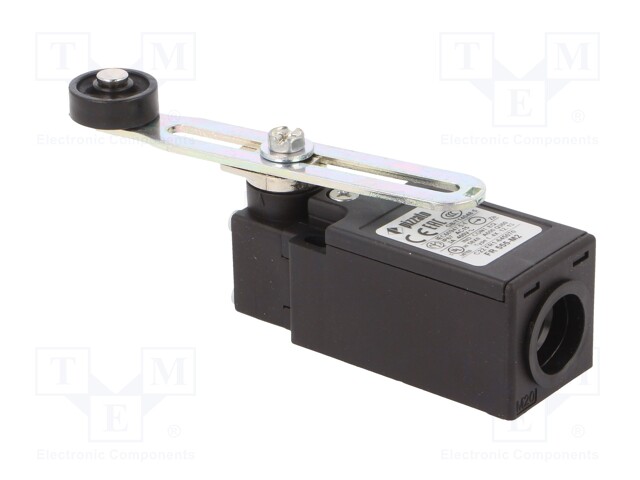

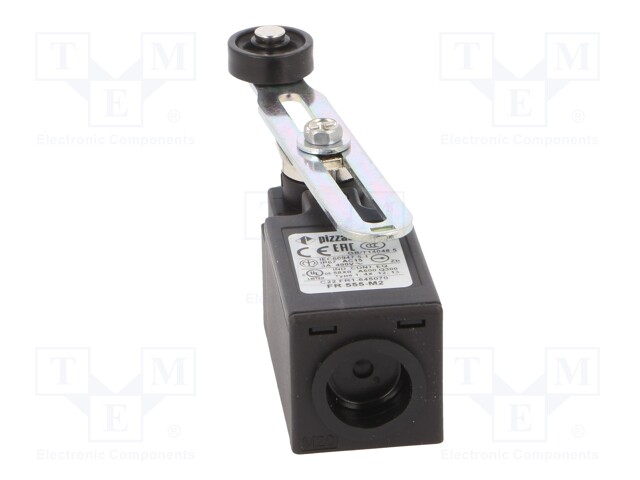

Limit switch; adjustable lever R 53-112mm, roll Ø20mm; NO + NC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: FR 555-M2
    Manufacturer: PIZZATO ELETTRICA
    Manufacturer code: FR 555-M2
    • Operating temperature
    • IP rating
    • Switches features
    • Series
    • Body material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Output configuration
    • Type of sensor
    • Number of mounting holes
    • DC contacts rating @R
    • AC contacts rating @R
    • Connection
    • Contact current max.
    • Kind of actuator

    15.75 € 15.75 € (wo VAT) 15.75 EUR

    15.75 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Limit switch; adjustable lever R 53-112mm, roll Ø20mm; NO + NC

    Operating temperature -25...80°C
    IP rating IP67
    Switches features snap action contacts
    Series FR
    Body material plastic
    Body dimensions 51.5x30.8x30.8mm
    Switched voltage max. 250V DC, max. 500V AC
    Output configuration NO + NC
    Type of sensor limit switch
    Number of mounting holes 2
    DC contacts rating @R 6A / 24V DC
    AC contacts rating @R 6A / 250V AC
    Connection M20
    Contact current max. 10A
    Kind of actuator adjustable lever R 53-112mm, roll Ø20mm
