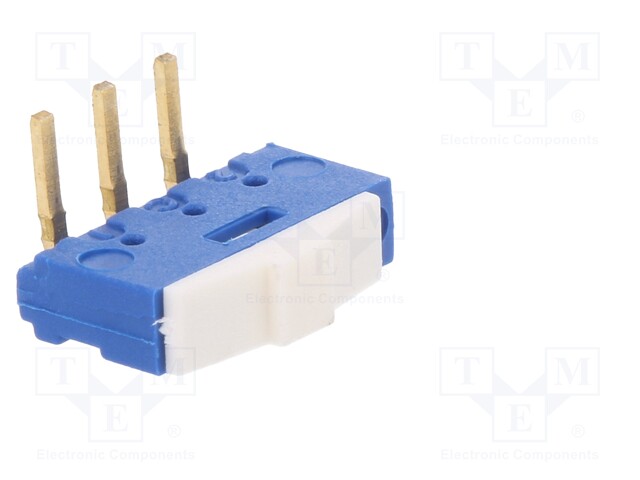

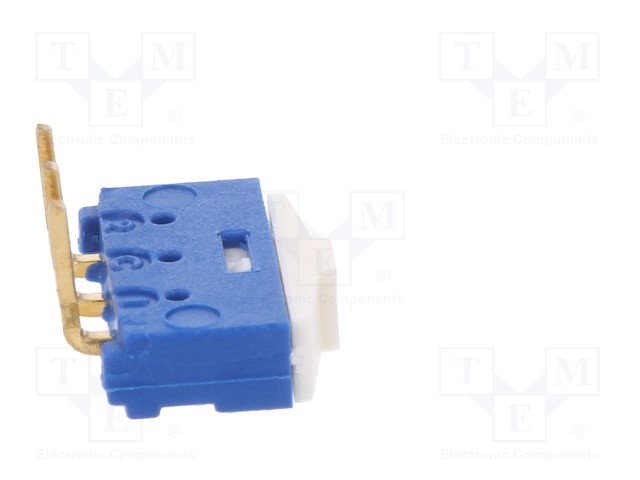

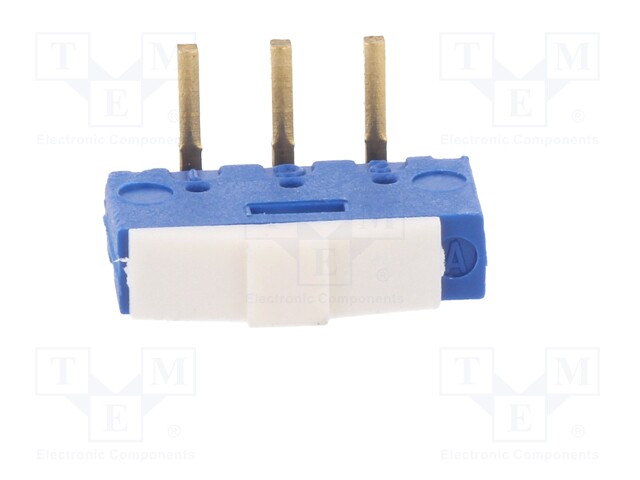

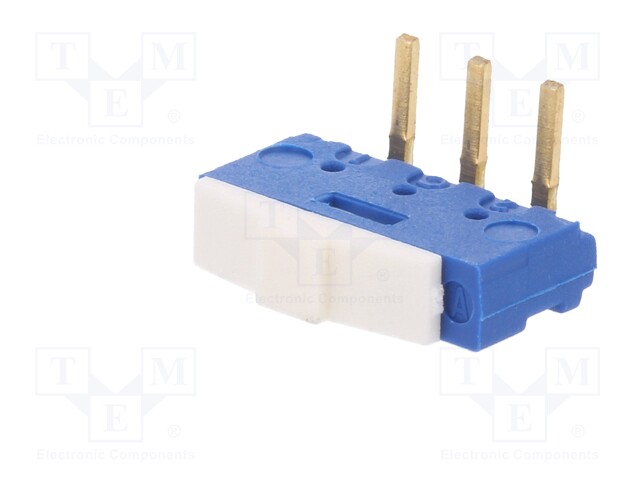

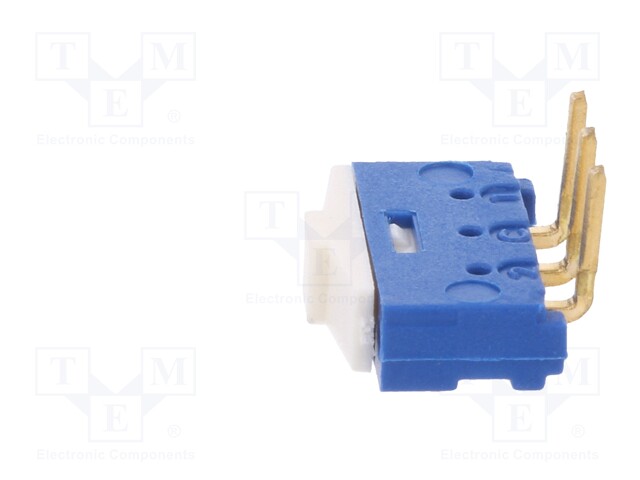

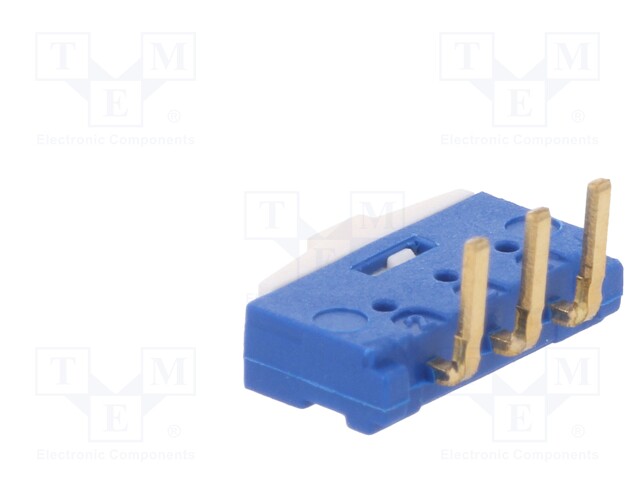

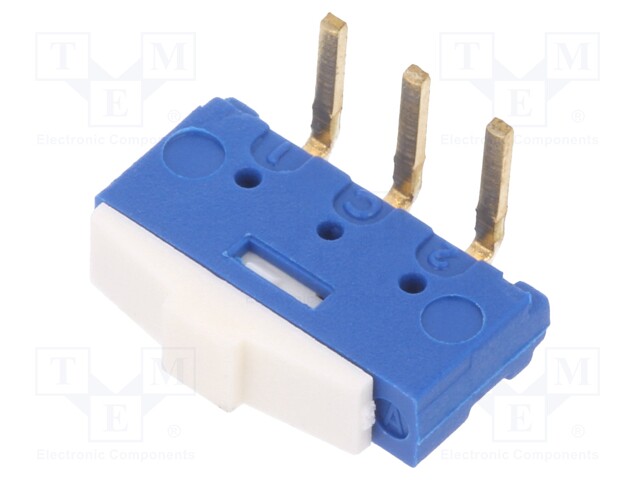

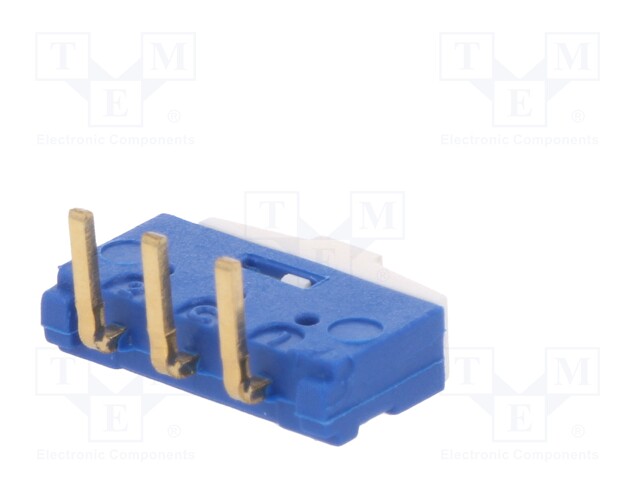

Switch: slide; Pos: 2; SPDT; 0.5A/12VDC; ON-ON; No.of term: 3

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: ESP2010
    Manufacturer: ECE
    Manufacturer code: ESP2010
    • Mounting
    • Operating temperature
    • Type of switch
    • Number of positions
    • Leads
    • Leads
    • Max. contact resistance:
    • Terminal pitch
    • Flammability rating
    • Body dimensions
    • Number of terminals
    • Min. insulation resistance
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number

    1.68 € 1.68 € (wo VAT) 1.68 EUR

    1.68 €

    This combination does not exist.

    Add to Cart

    Product downloads

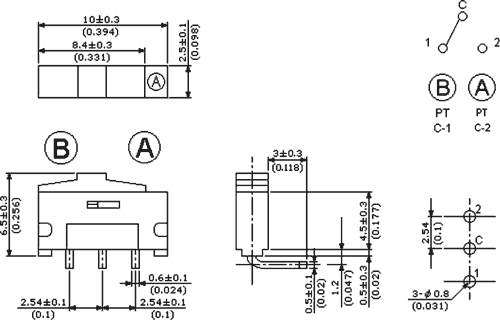

    Specification for Switch: slide; Pos: 2; SPDT; 0.5A/12VDC; ON-ON; No.of term: 3

    Mounting THT
    Operating temperature -40...85°C
    Type of switch slide
    Number of positions 2
    Leads angled, for PCB
    Max. contact resistance: 30mΩ
    Terminal pitch 2.54mm
    Flammability rating UL94V-0
    Body dimensions 10x2.5x6.5mm
    Number of terminals 3
    Min. insulation resistance 10GΩ
    Contacts configuration SPDT
    DC contacts rating @R 0.5A / 12V DC
    Switching method ON-ON
    Stable positions number 2
