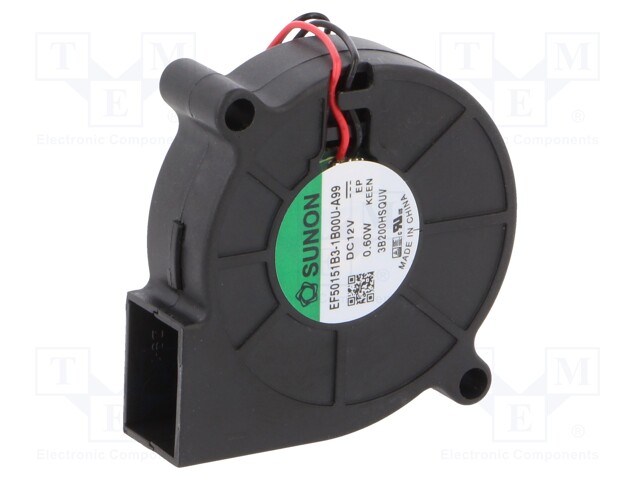

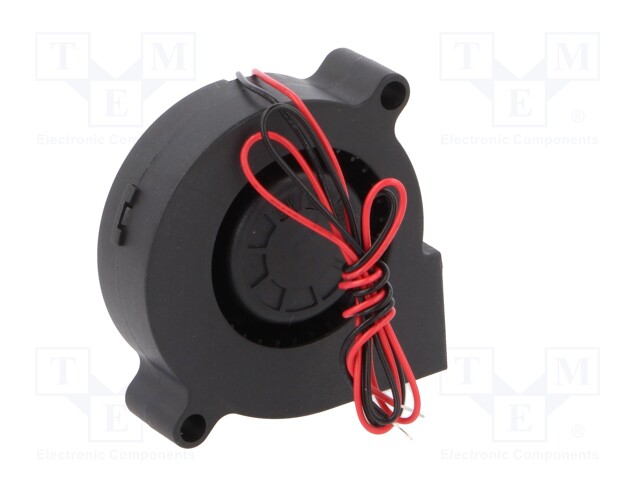

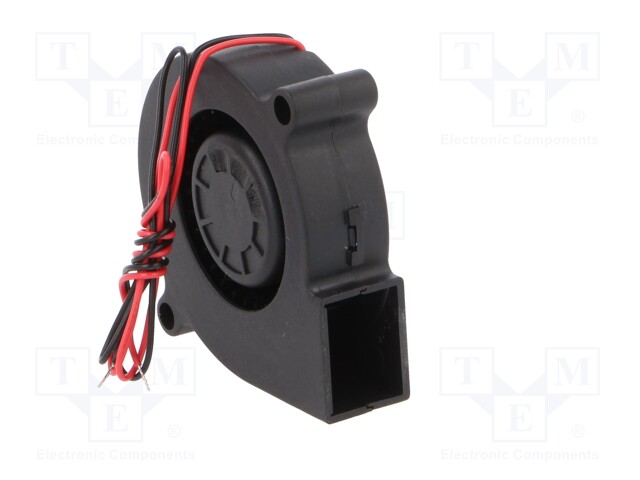

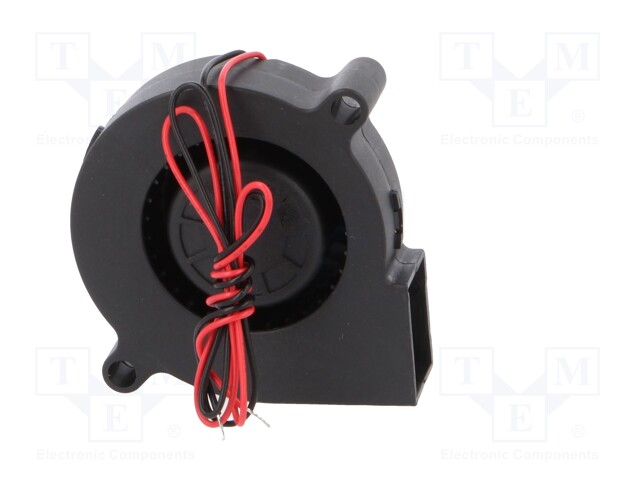

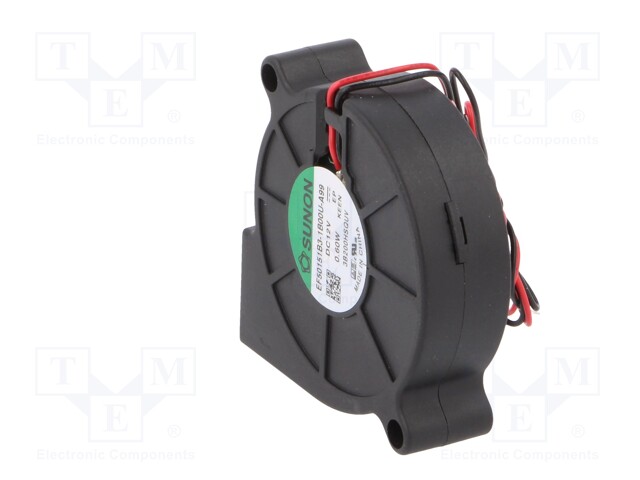

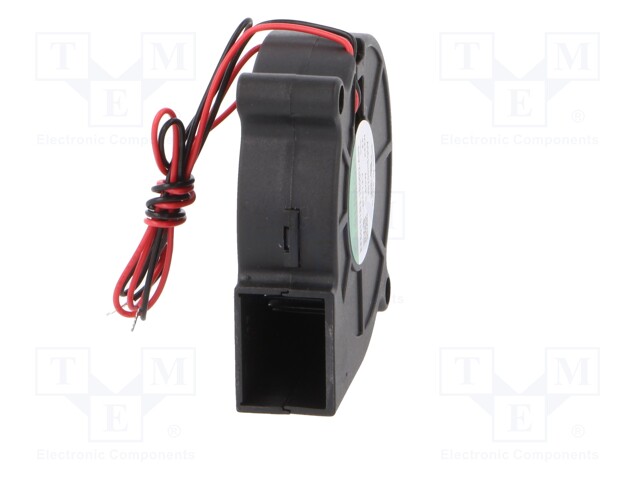

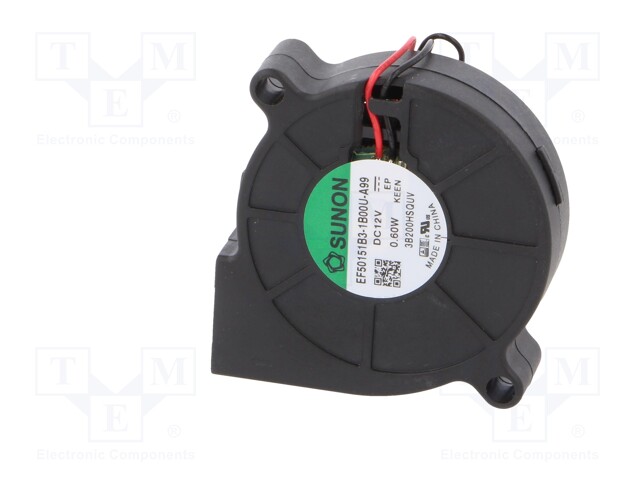

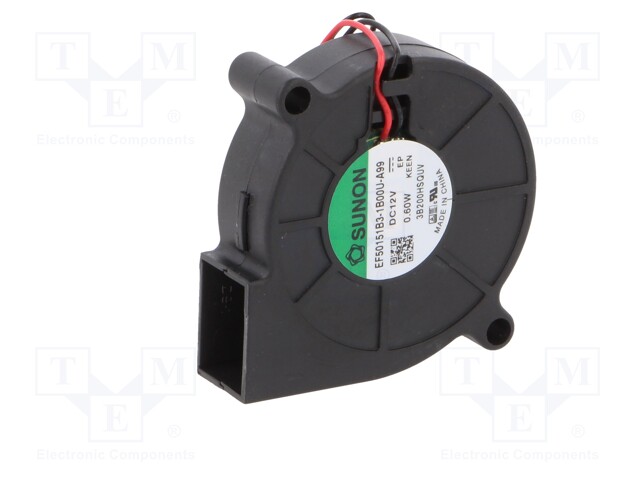

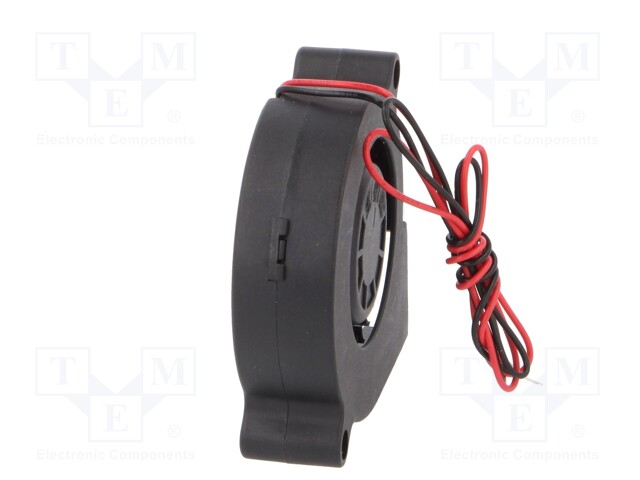

Fan: DC; blower; 12VDC; 51.6x51.7x15mm; 4.41m3/h; 26dBA; 3200rpm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EF50151B3-1B00U-A99
    Manufacturer: SUNON
    Manufacturer code: EF50151B3-1B00U-A99
    • Supply voltage
    • Operating voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Cable length
    • Current rating
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Noise level

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; blower; 12VDC; 51.6x51.7x15mm; 4.41m3/h; 26dBA; 3200rpm

    Supply voltage 12V DC
    Operating voltage 4.5...13.8V
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Leads 2 leads
    Flammability rating UL94V-0
    Cable length 305mm
    Current rating 36mA
    Power consumption 600mW
    Additional functions Autorestart
    Rotational rate/speed 3200rpm
    Fan motor brushless DC motor
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan blower
    Insulation class A
    Type of fan DC
    Noise level 26dBA
