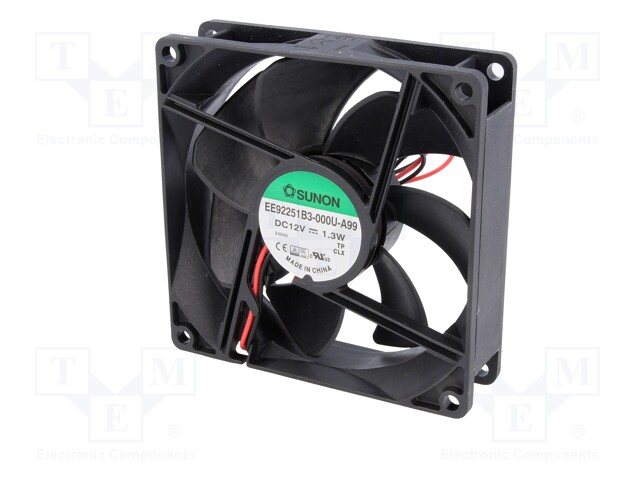

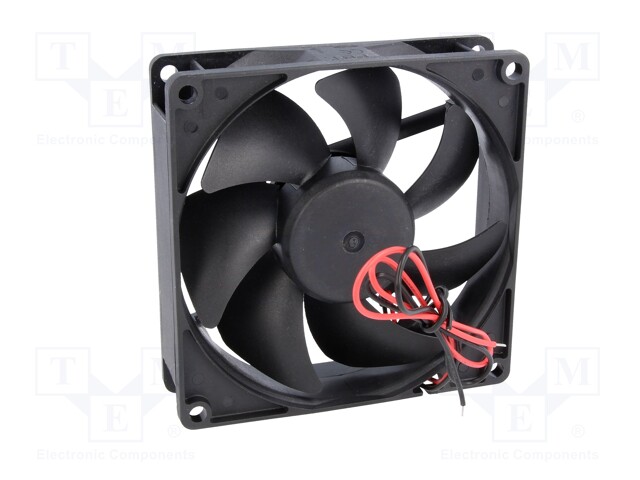

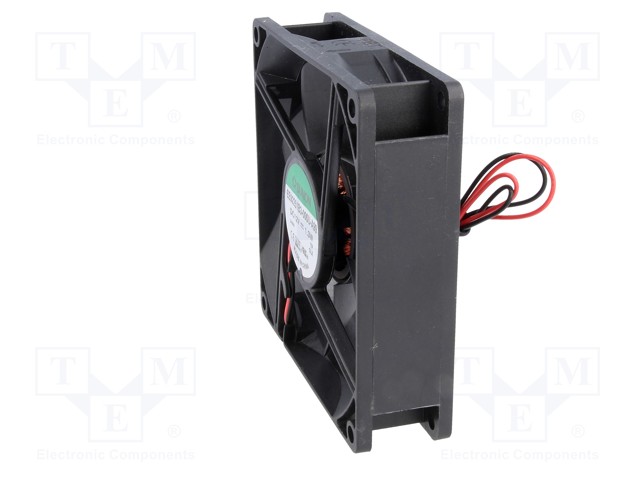

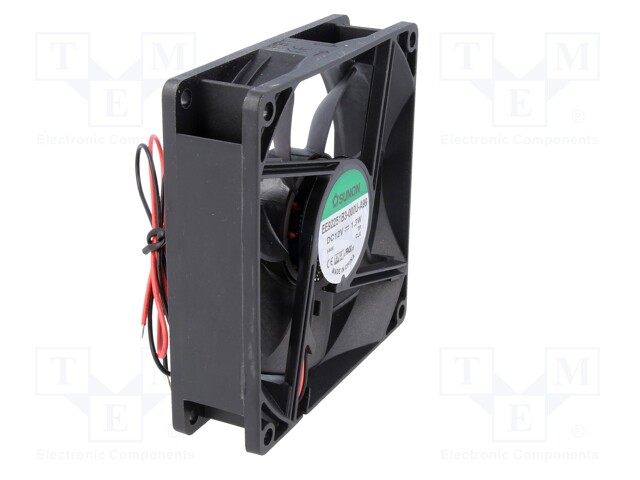

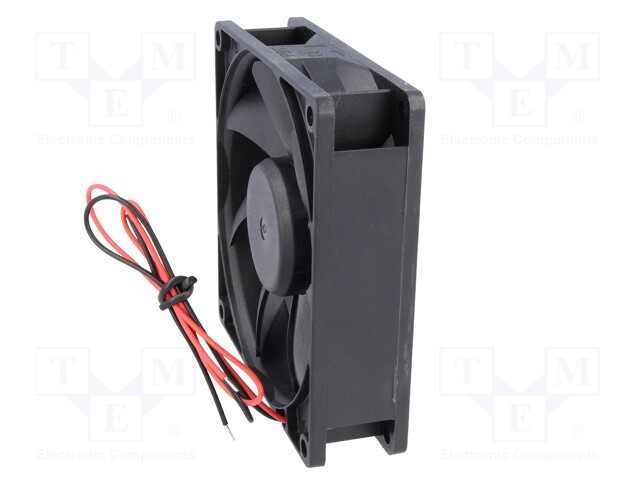

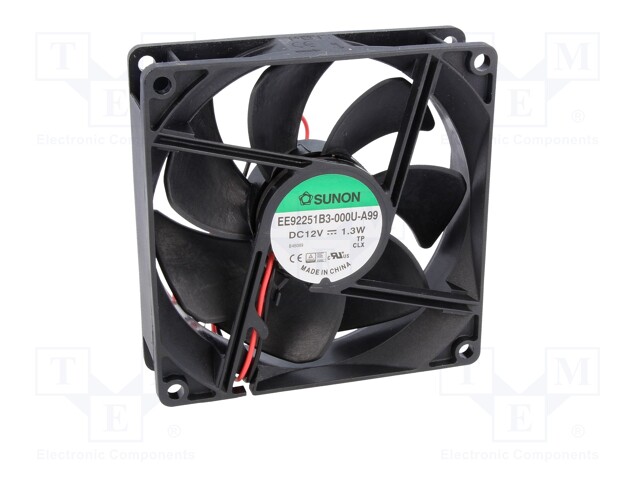

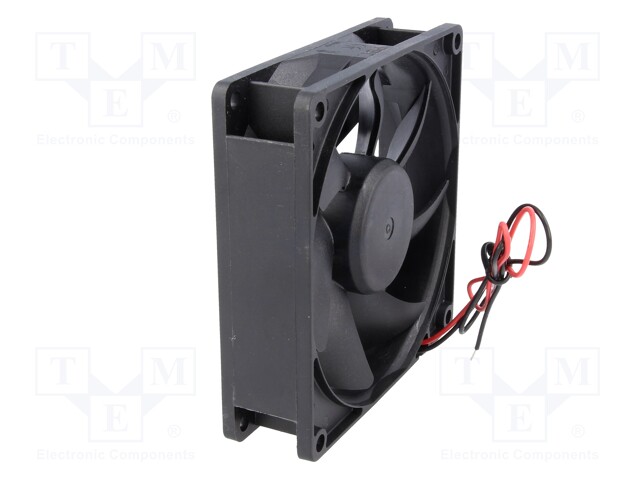

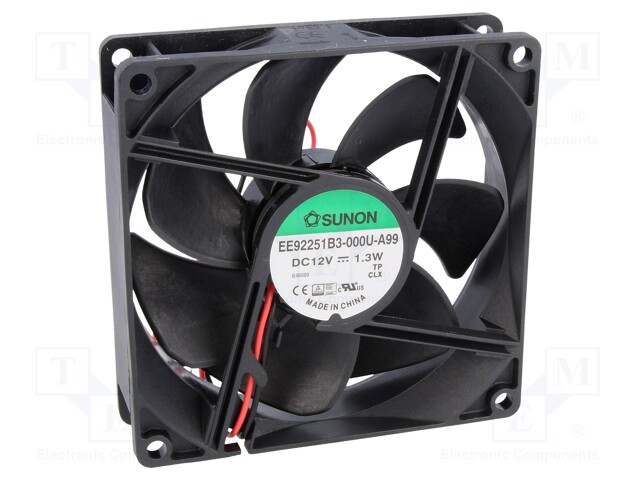

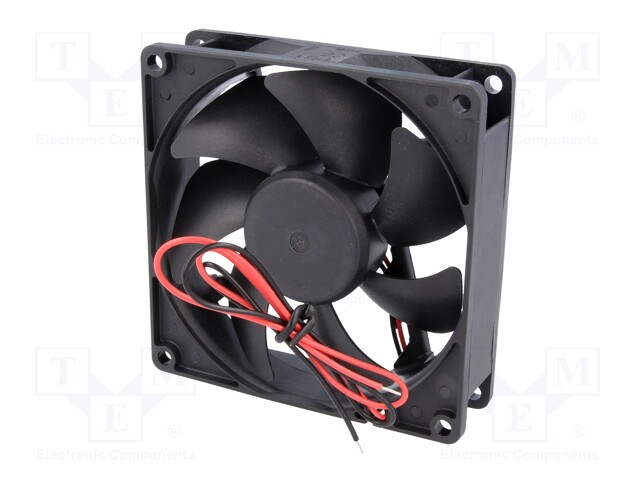

Fan: DC; axial; 12VDC; 92x92x25mm; 67.15m3/h; 28dBA; ball bearing

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EE92251B3-000U-A99
    Manufacturer: SUNON
    Manufacturer code: EE92251B3-000U-A99
    • Supply voltage
    • Operating voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Cable length
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Static pressure
    • Noise level

    7.08 € 7.08 € (wo VAT) 7.08 EUR

    7.08 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: DC; axial; 12VDC; 92x92x25mm; 67.15m3/h; 28dBA; ball bearing

    Supply voltage 12V DC
    Operating voltage 4.5...13.8V
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Leads 2 leads
    Flammability rating UL94V-0
    Cable length 300mm
    Current rating 0.091A
    Fan efficiency 67.15m<sup>3</sup>/h
    Power consumption 1.3W
    Additional functions Autorestart
    Rotational rate/speed 2400 (±10%)rpm
    Fan motor brushless DC motor
    Fan dimensions 92x92x25mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class A
    Type of fan DC
    Static pressure 2.54mm H<sub>2</sub>O
    Noise level 28dBA
