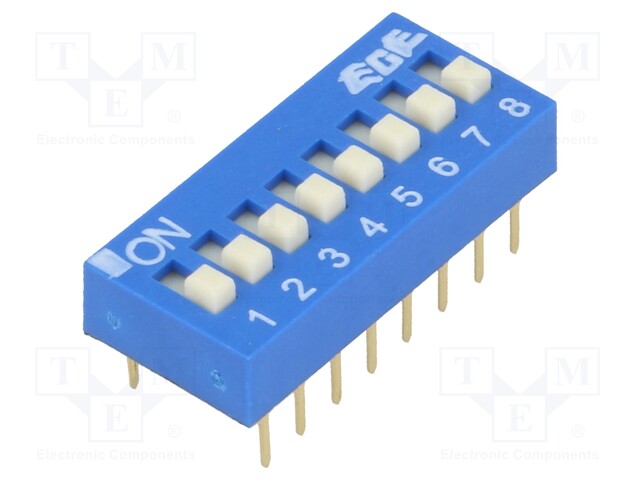

Switch: DIP-SWITCH; Poles number: 8; ON-OFF; 0.025A/24VDC; Pos: 2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EDG108S
    Manufacturer: ECE
    Manufacturer code: EDG108S
    • Mounting
    • Operating temperature
    • Type of switch
    • Switches features
    • Contact plating
    • Number of positions
    • Row pitch
    • Max. contact resistance:
    • Terminal pitch
    • Flammability rating
    • Body dimensions
    • Mechanical durability
    • Overall length
    • Min. insulation resistance
    • Poles number
    • Test voltage
    • DC contacts rating @R
    • Switching method
    • Stable positions number

    2.73 € 2.73 € (wo VAT) 2.73 EUR

    2.73 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: DIP-SWITCH; Poles number: 8; ON-OFF; 0.025A/24VDC; Pos: 2

    Mounting THT
    Operating temperature -25...70°C
    Type of switch DIP-SWITCH
    Switches features raised actuator
    Contact plating gold-plated
    Number of positions 2
    Row pitch 7.62mm
    Max. contact resistance: 50mΩ
    Terminal pitch 2.54mm
    Flammability rating UL94V-0
    Body dimensions 21.7x9.7x4.2mm
    Mechanical durability 2000cycles
    Overall length 21.7mm
    Min. insulation resistance 1GΩ
    Poles number 8
    Test voltage 500V
    DC contacts rating @R 0.025A / 24V DC
    Switching method ON-OFF
    Stable positions number 2
