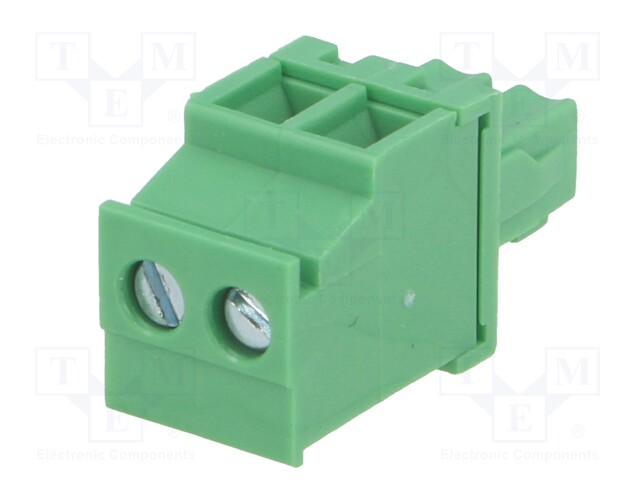

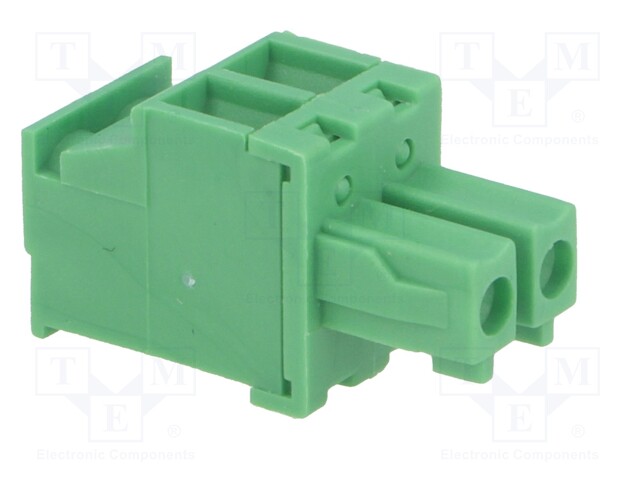

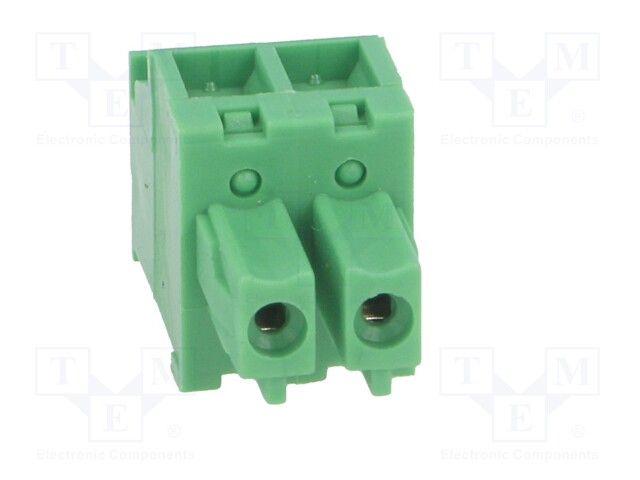

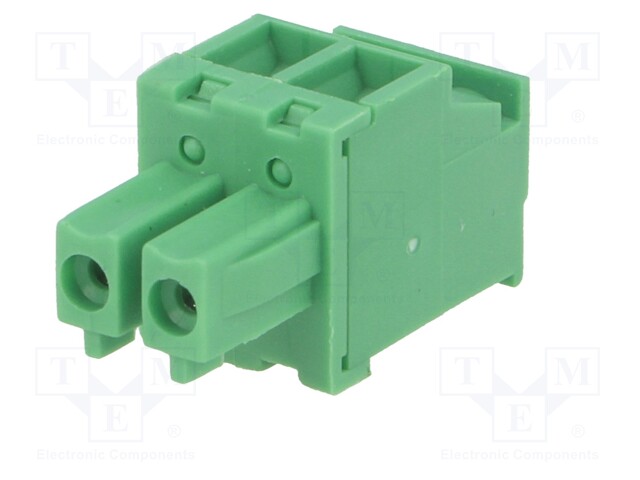

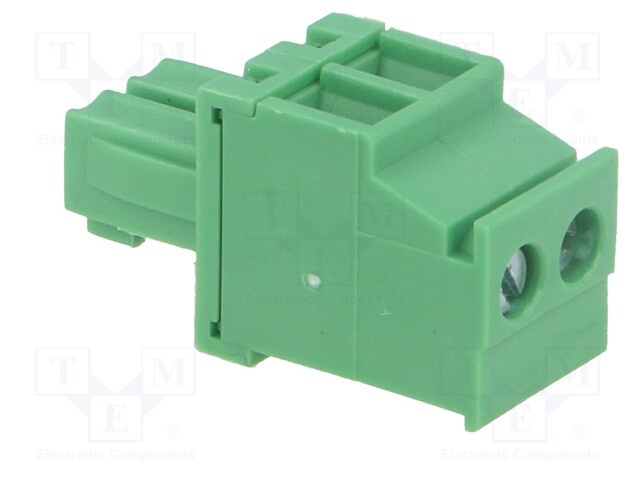

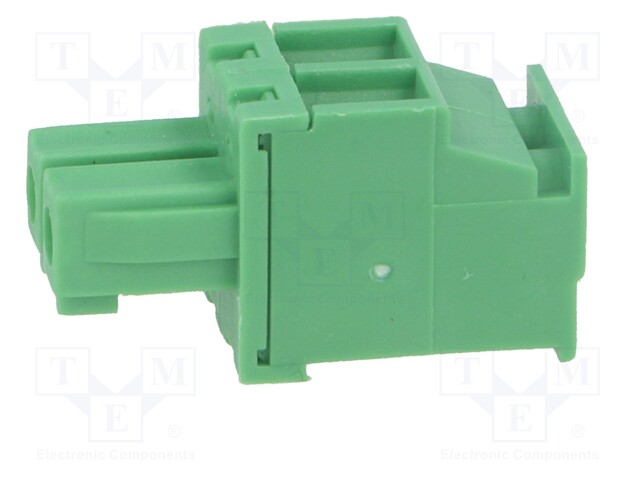

Pluggable terminal block; 3.5mm; ways: 2; angled; plug; female

    Multiples: 1.0
    Minimum quantity: 5.0
    Product code: EB5A-02-A
    Manufacturer: ADAM TECH
    Manufacturer code: EB5A-02-A
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Contact material
    • Body material
    • Flammability rating
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Number of terminals
    • Rated voltage
    • Locking system
    • Conform to the norm
    • Spatial orientation

    1.10 € 1.10 € (wo VAT) 1.1 EUR

    1.10 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Pluggable terminal block; 3.5mm; ways: 2; angled; plug; female

    Operating temperature -40...105°C
    Contacts pitch 3.5mm
    Electrical mounting screw terminal
    Connector plug
    Kind of connector female
    Mechanical mounting for cable
    Colour green
    Contact plating nickel plated
    Type of connector pluggable terminal block
    Contact material phosphor bronze
    Body material NYLON 66
    Flammability rating UL94V-0
    Current rating 8A
    Number of ways 2
    Type of pin configuration 1x2
    Number of terminals 2
    Rated voltage 300V
    Locking system latch
    Conform to the norm UL
    Spatial orientation angled
